KEB COMBILINE Z2 Series User Manual

28
DIMENSIONS AND WEIGHTS
3.3.4 Motor chokes size 23 to 30
Mounting direction
L2
B
T
d2
H
H1
L3
L1
d1 d3
Size B H H1 T L1 L2 L3 d1 d2 d3 Weight
23Z2F04-1003 370 170 250 405 144 310 120 15 10.5 25 32.0
24Z2F04-1003 365 170 270 415 144 310 120 15 10.5 25 32.8
25Z2F04-1003 350 170 270 425 144 310 120 15 10.5 25 35.0
26Z2F04-1003 370 170 300 435 144 310 120 15 10.5 25 41.0
27Z2F04-1003 465 180 300 440 150 400 160 15 10.5 25 45.0
28Z2F04-1003 450 180 325 465 150 400 160 15 10.5 25 58.5
29Z2F04-1003 460 180 330 480 150 400 160 15 10.5 25 62.0
30Z2F04-1003 465 180 350 500 150 400 160 15 10.5 25 72.0

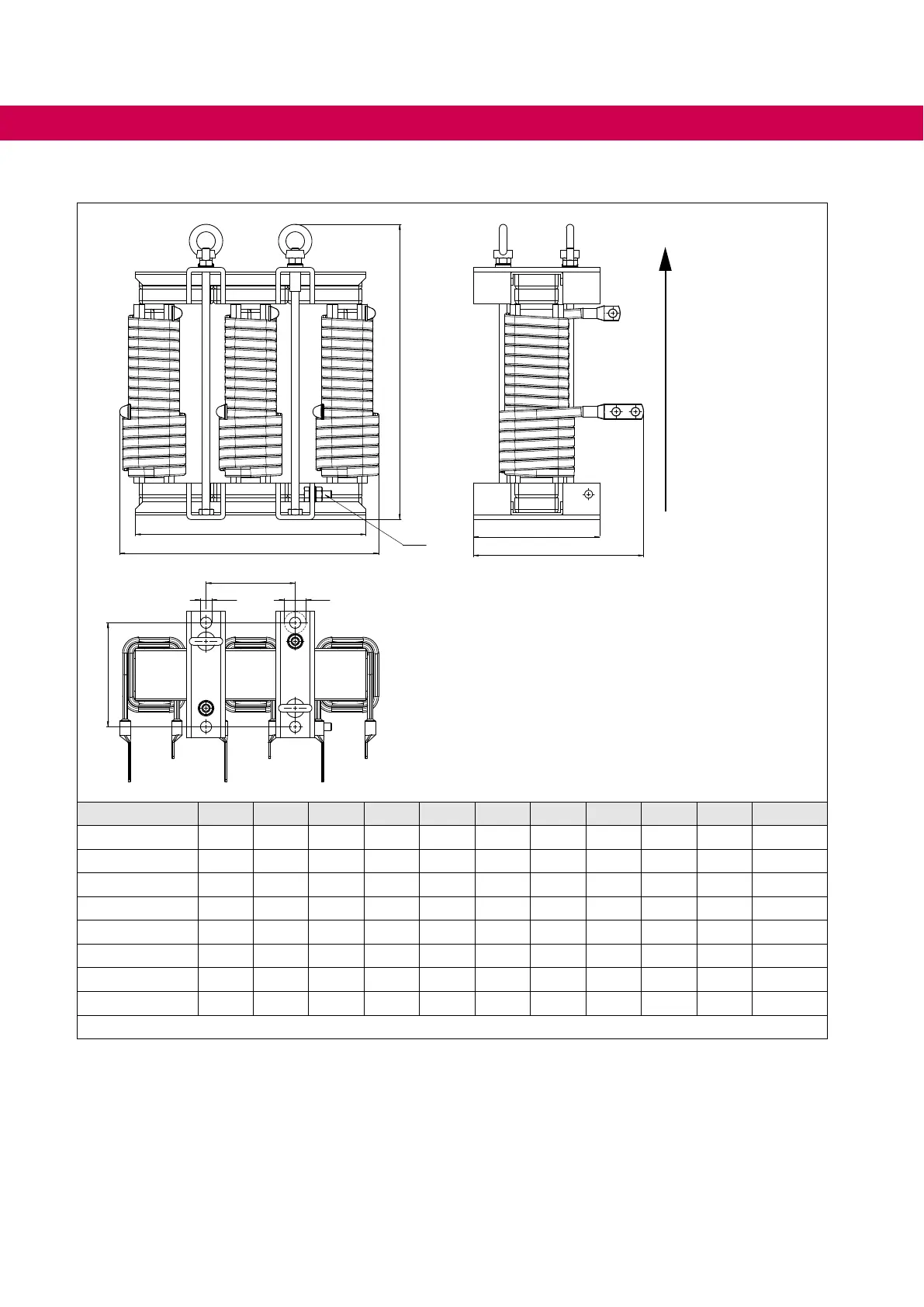

Figure 4: Dimensions and weights motor chokes size 23 to 30
All dimensions in mm; all weights in kg.
