KEB COMBILINE Z2 Series User Manual

44
INSTALLATION AND CONNECTION
4.5.6 Connection of the capacitor module with four power capacitors
Legend
PE Protective earth connection via connection point on the retaining plate
3 x FlatAL 80x2mm;
Drilling:
⌀ = 13mm
Capacitor connection for M12 screw

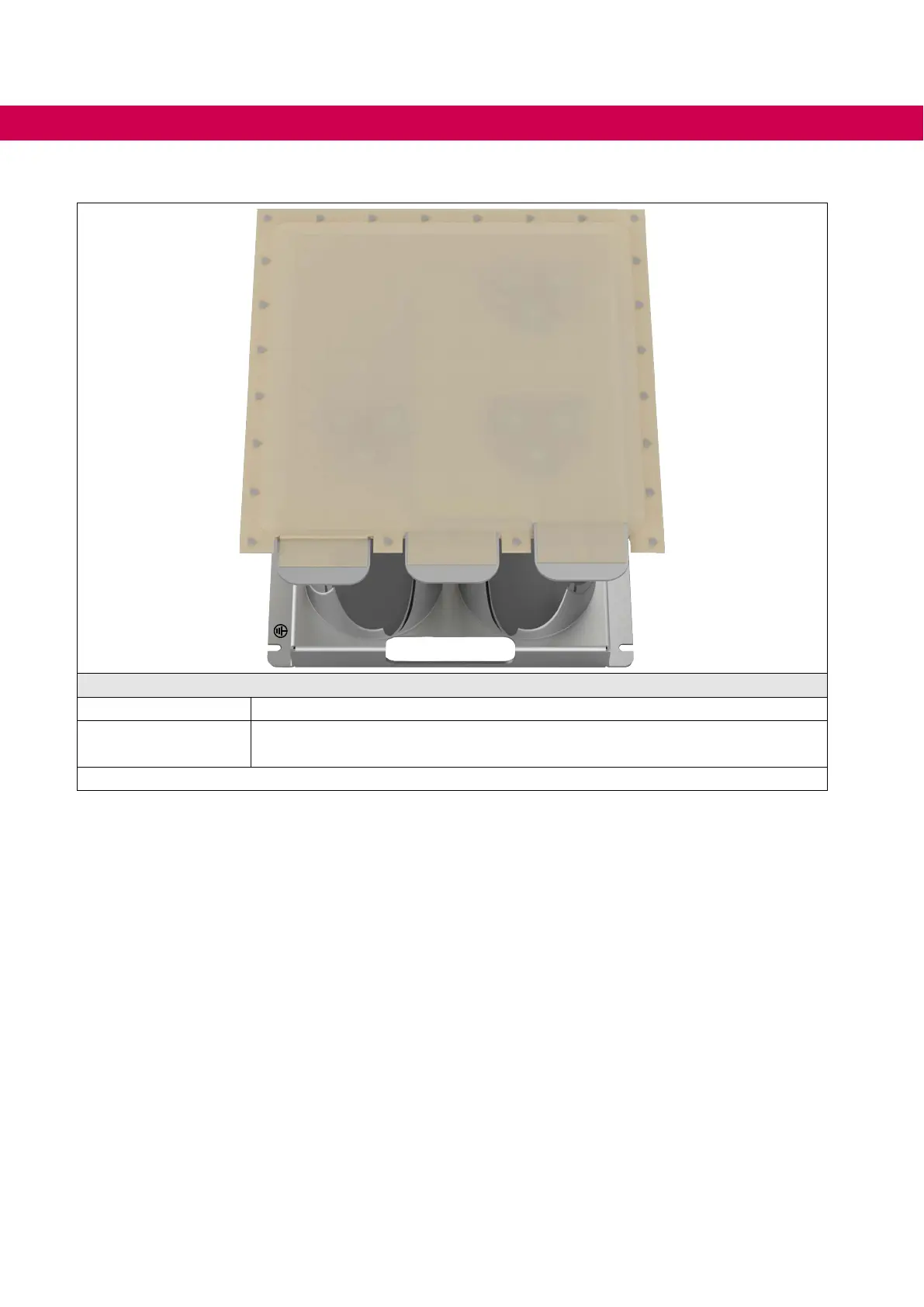

Figure 21: Connection of the capacitor module with four power capacitors
The 3 phases can be contacted at the 3 connection points.
