KEB COMBIVERT F5 User Manual

100
Encoder interface
This parameter is used to manage the encoder interface and its
surrounding functionality. Depending on the type of encoder and
encoder interface only some of these functions are supported. The
parameter has been expanded using an offset number to denote the
function.
The function of each offset is denoted below
Displays the type of encoder interface on the drive. Is also used to
manually reset E.ENCC errors.
Displays the type of encoder connected to the drive, if the info is
available from the encoder.
Displays the status of the encoder interface (encoder faults, etc.)

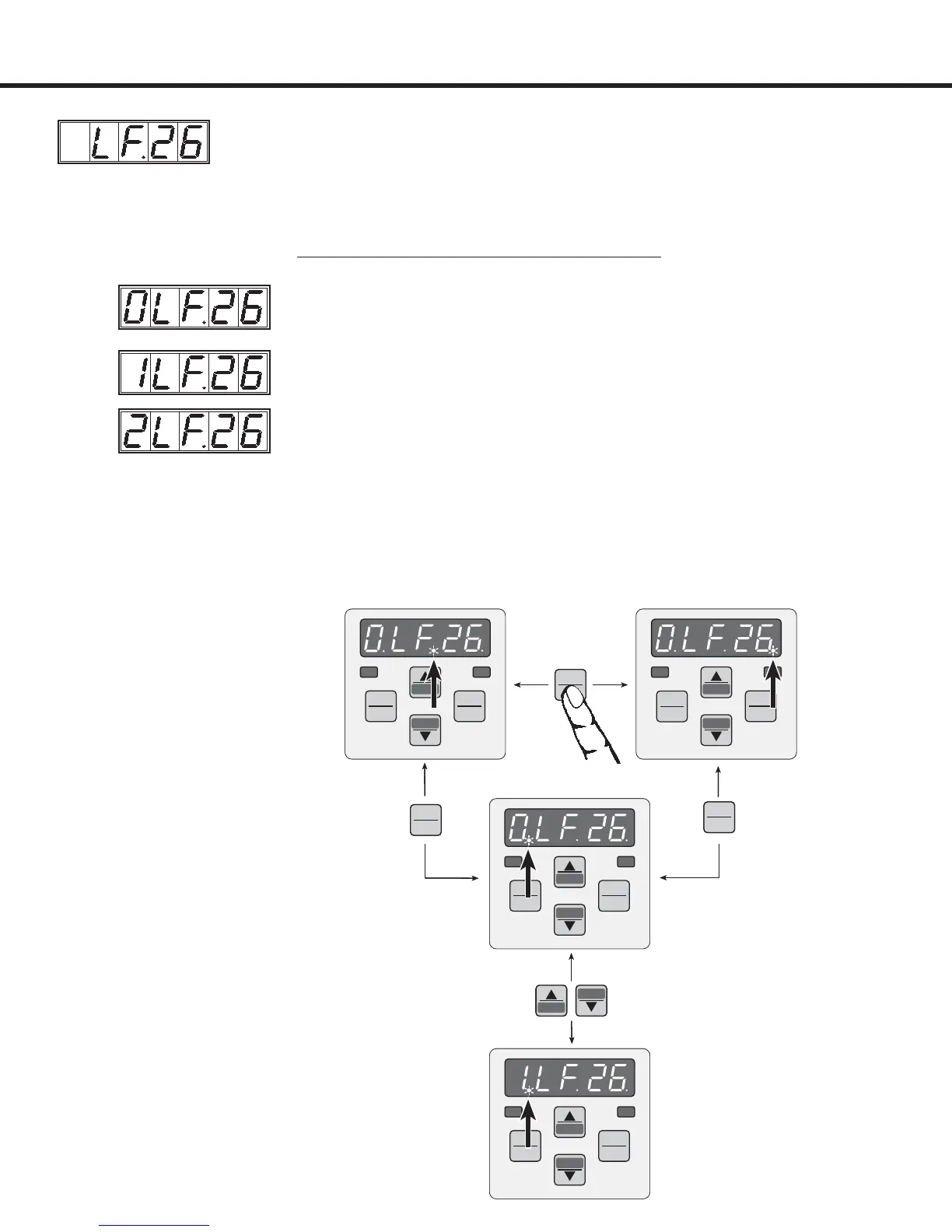

The key strokes below can be used to navigate to the desired offset
number.
START
STOP
FUNC.
SPEED
ENTER
F/R
ENTER
F/R
START
STOP
FUNC.
SPEED
ENTER
F/R
START
STOP
FUNC.
SPEED
ENTER
F/R
START
STOP
START
STOP
FUNC.
SPEED
ENTER
F/R
ENTER
F/R
ENTER
F/R
START
STOP
FUNC.
SPEED
ENTER
F/R
ENTER
F/R
START
STOP
FUNC.
SPEED
ENTER
F/R
START
STOP
FUNC.
SPEED
ENTER
F/R
START
STOP
START
STOP
FUNC.
SPEED
ENTER
F/R
ENTER
F/R
ENTER
F/R
change between
parameter
group and
parameter
number
With the up, down keys
select the respective
parameter offset number
0,1,2,3
change between
parameter
group and
parameter
offset number
change between
parameter
number and
parameter
offset number
Parameter Description - Encoder Set Up
