View rear side of the device
Size C / S
X1A
X1BX1A
PE PE
X1B
Terminal connection Function
Conductor
cross-section
Tightening torque
X1A
U
Connectiontothelter.
Connect inphase.
0.2...6mm²
AWG24-10
0.7Nm
6.2 lb inch
V
W
X1B
BR+
Connection for
24 V DC brake
0.25...1.5mm²
AWG28-16
0.25Nm
2.2 lb inch
BR-
T1
Connection for PTC / KTY
ltertemperaturemonitoring
T2
PE
Connection for
shielding / earthing
M6 stud
for ring crimp
connector
1.3 Nm
11.5 lb inch

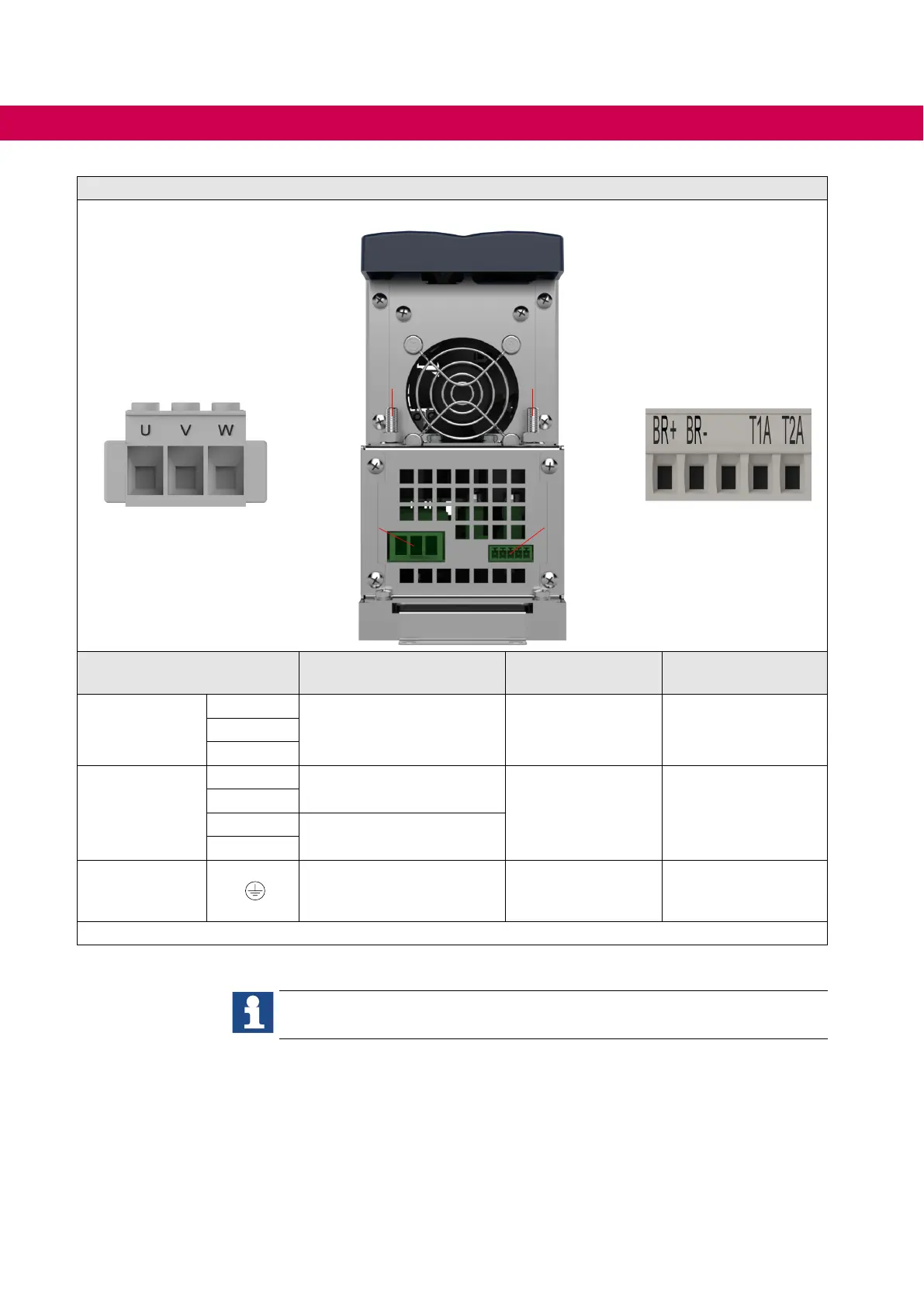

Figure 12: View of the bottom of the device size C / S
The terminal blocks meet the requirements of EN 60947-7-1.
44
INSTALLATION AND CONNECTION
