KEB COMBIVERT H6 Series User Manual

View rear side of the device
Size E / U
X1A
U V W
PE PE
Terminal connection Function
Conductor cross-sec-
tion
Tightening torque
X1A
U
Connectiontothelter.
Connect
inphase.
35...95 mm²
AWG4-0
15 Nm
132 lb inch
V
W
PE
Connection for
shielding/
earthing
M8stud
for ring crimp connector
12 Nm
110lbinch

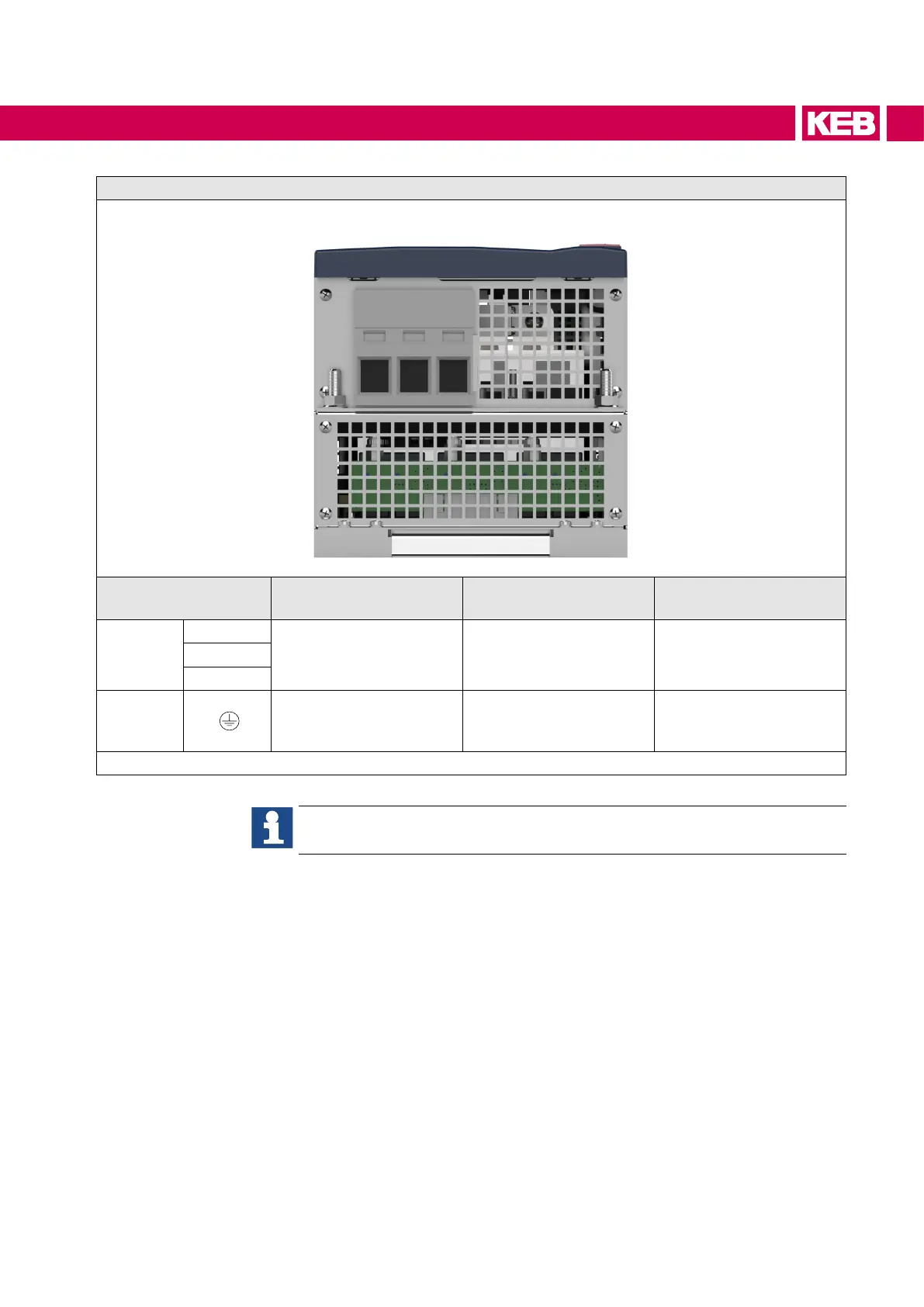

Figure 13: View of the bottom of the device size E / U
The terminal blocks meet the requirements of EN 60947-7-1.
45
INSTALLATION AND CONNECTION
