4.1.1 Status LED displays AIC module
Status LED 1
Safety module
Status LED 2
AIC module

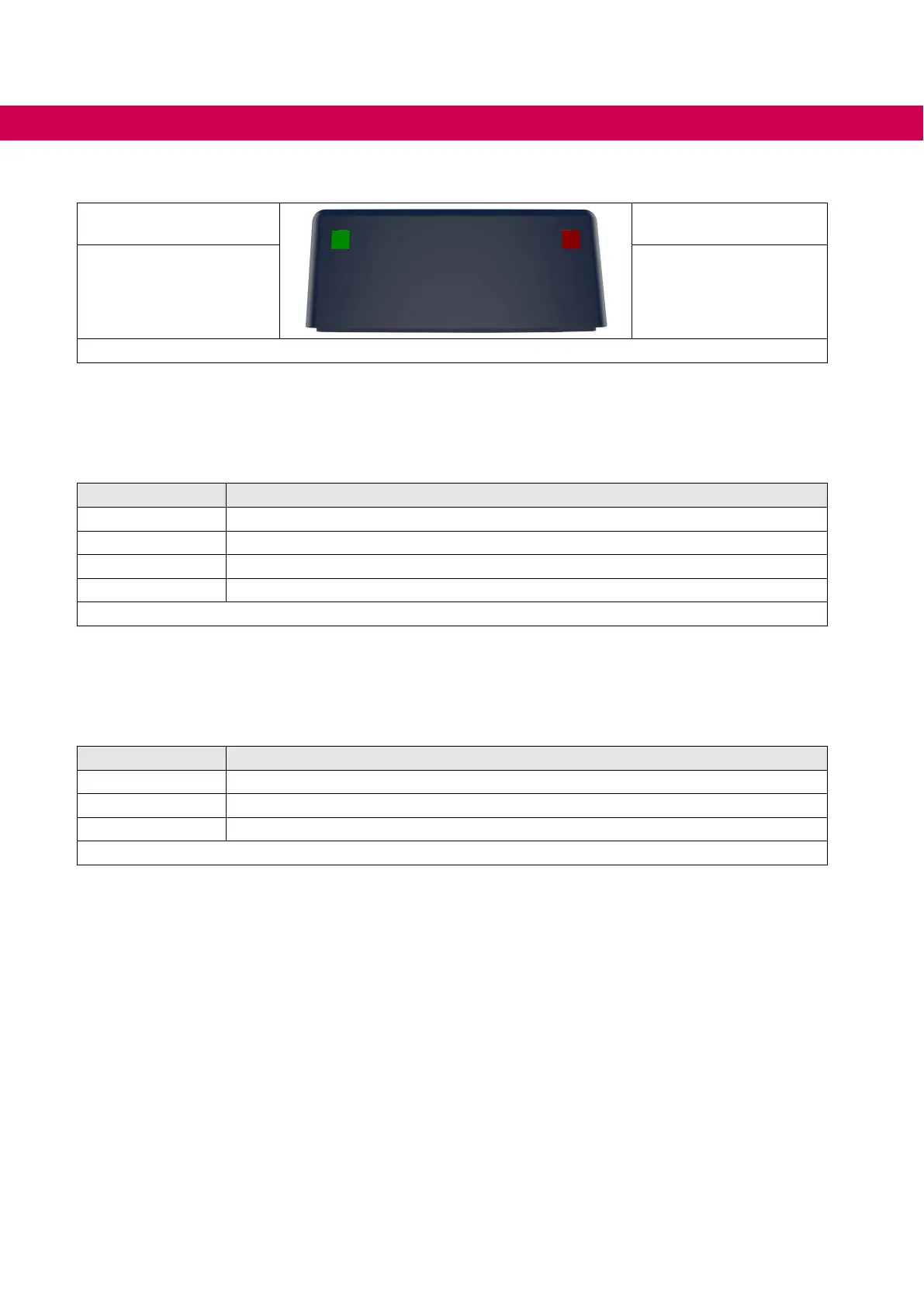

Figure 16: Status LED displays AIC module
4.1.1.1 Status LED 1 AIC module
The LED displays the status of the AIC module.
LED Status
o No voltage supply of the device
yellow Device initialised
green Device ready for operation
red Device in error routine
Table 12: Status LED 1 AIC module
4.1.1.2 Status LED 2 safety module
The LED indicate the state of the safety module.
LED Status
o No voltage supply of the safety module
green Safety module ready for operation
red Safety module in error routine
Table 13: Status LED 2 safety module
48
INSTALLATION AND CONNECTION
