4.2 Structure of the charging module
Front view Remove the front cover Front without cover
• Pull with both hands low in the
cover.
•
Tilt cover forward to approx.
45 degrees, until the plates
solve above from the mount-
ing.
•
Remove the cover forward.
Remove the cover from the DC
bus
•
Compress lug of the cover,
remove forward.

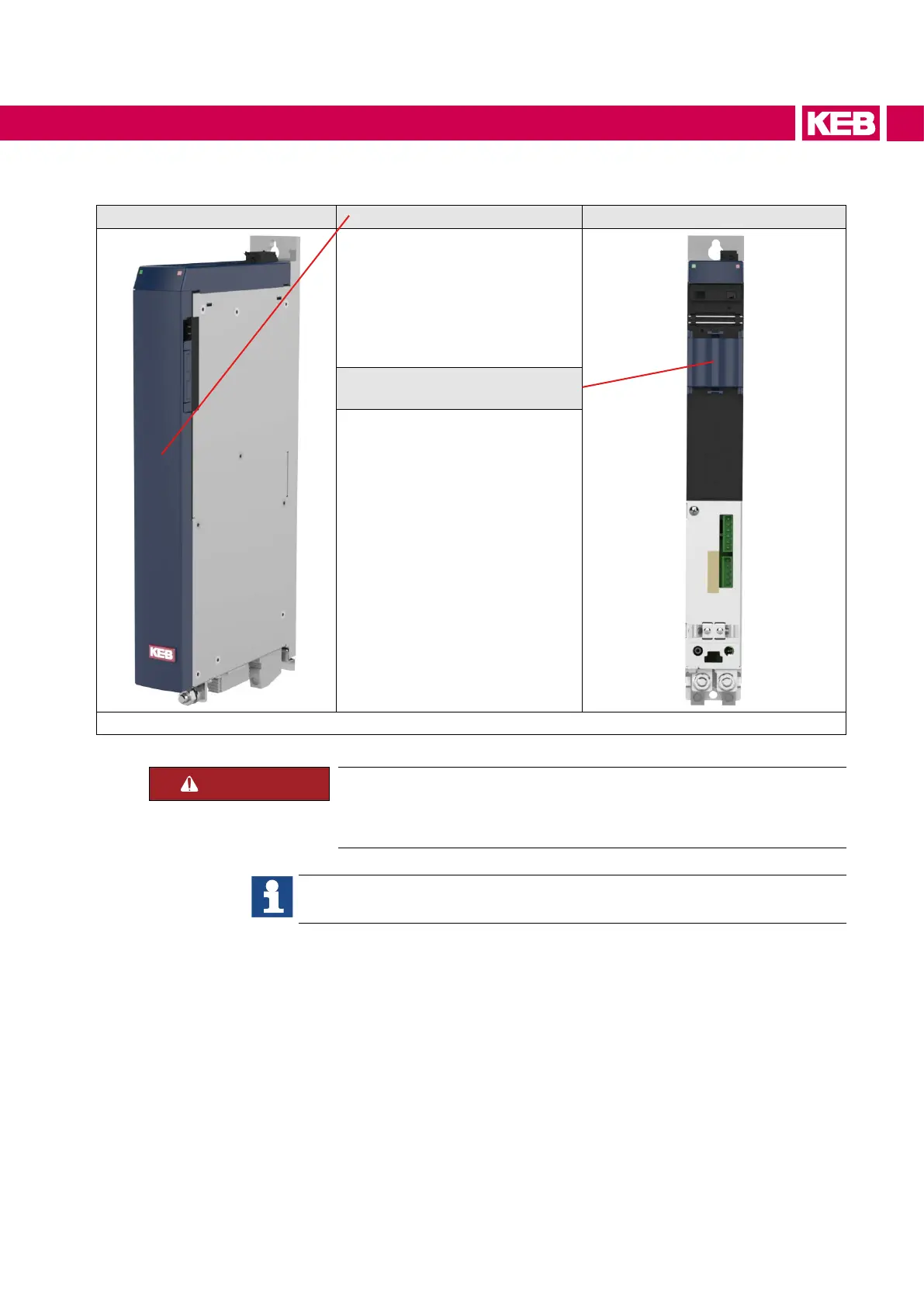

Figure 17: Front view of the device
DANGER
Hazardous voltage under the cover of the DC bus
► Secure isolation from supply of the DC bus at the power supply and
regenerative unit!
The terminal blocks meet the requirements of EN 60947-7-1.
49
INSTALLATION AND CONNECTION
