Keba KeContact Series User Manual

System Overview
9 / 156

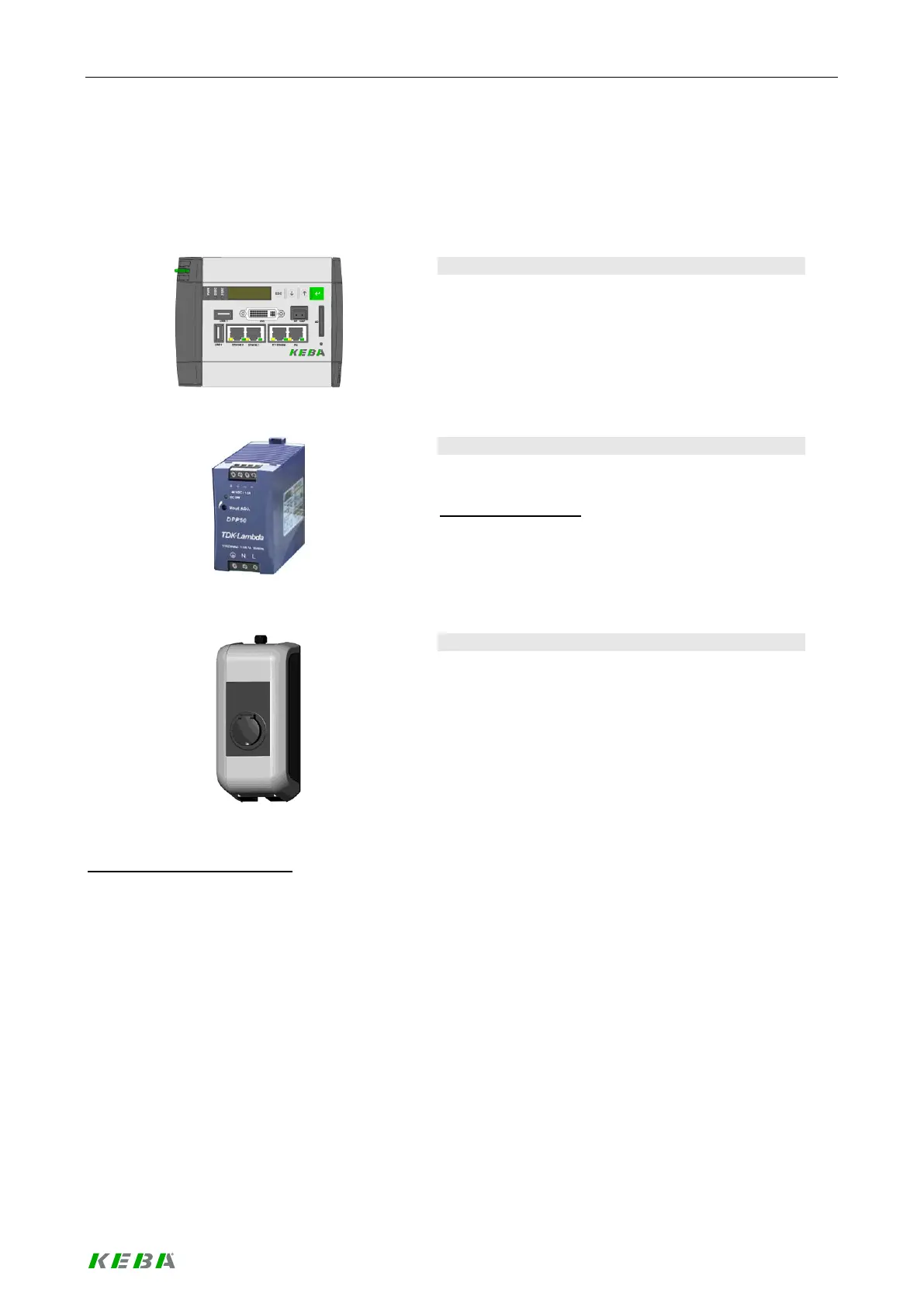

2.1 System components
The items listed below are not all included in the standard delivery (for details please see chapter "Scope of
delivery").
KeContact M10
KeContact M10
The KeContact M10 is an industrial PC developed
by KEBA AG.
For more details please see “Kemro KeContact M10
Project Engineering manual”.
Power supply unit
Power supply unit 24V
The rail mounted power supply is used to supply the
KeContact M10.
Manufacturer's data:
TDK-Lambda DPP50-24
Output voltage of 24V
For more details please see data sheet in the Ap-
pendix.
KeContact P20 Wallbox (example)
KeContact P20
KeContact P20 c-series Wallboxes can be used in
combination with the KeContact M10 load manage-
ment. The wallbox is available in different variants.
For more details please see "KeContact P20 Instal-
lation manual".
Further required components:
 Ethernet switch
The Ethernet switch is used for the network connection of the individual Wallboxes to the KeContact
M10.
 Patch panel (CAT6)
The Ethernet cable (Cat6 or higher quality) of the individual Wallboxes are applied on the patch panel
and are connected to the Ethernet switch using a RJ45 patch cable.

Keba KeContact Series Specifications

General

Charging power	Up to 22 kW
Protection class	IP54
Frequency	50/60 Hz
Operating Temperature	-25°C to +55°C
Rated current	32 A
Connection type	Type 2 socket
Communication	Ethernet
Residual current monitoring	Type A
Output Current	Up to 32 A
