Keithley 3706A Reference Manual

Series 3700A System Switch/Multimeter Reference Manual Appendix B: Verification and adjustment
3700AS-901-01 Rev. D/June 2018 B-25
DC adjustment step 3: +10 V

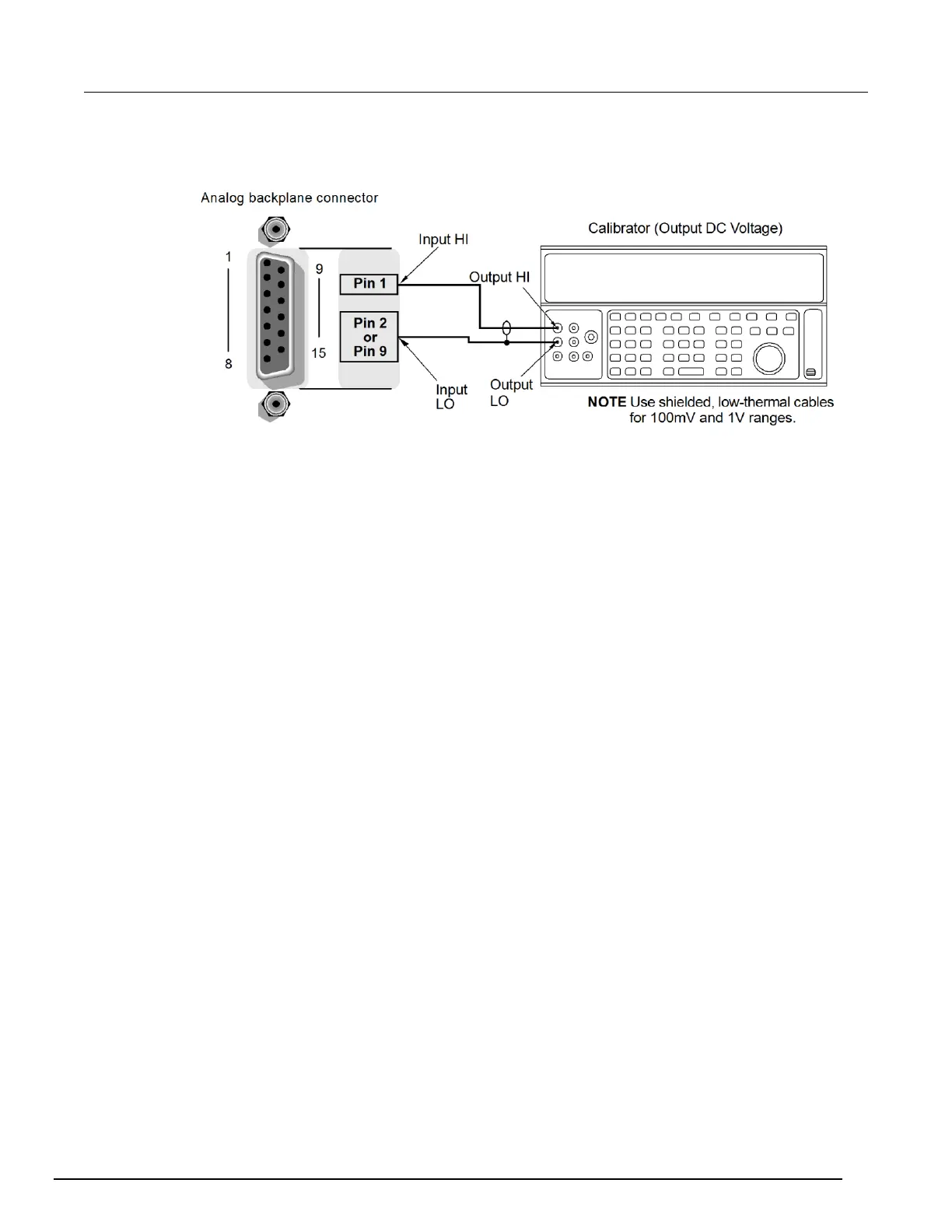

Figure 172: DC voltage calibration
1. Connect a cable between the calibrator and the Series 3700A.
2. Allow the instrument to settle for 30 seconds.
3. Send the command:
dmm.range = 10
4. Source +10 V.
5. Send the commands:
dmm.calibration.dc(3,10) print("done")
print(errorqueue.count)
DC adjustment step 4: –10 V
1. Source –10 V.
2. Send the commands:
dmm.calibration.dc(4,-10) print("done")
print(errorqueue.count)
DC adjustment 5: 100 V
1. Send the command:
dmm.range = 100
2. Source 100 V.
3. Send the commands:
dmm.calibration.dc(5,100) print("done")
print(errorqueue.count)

Keithley 3706A Specifications

General

Model	3706A
Category	System Switch/Multimeter
Voltage Range	100 nV to 300 V
Basic DC Voltage Accuracy	0.0035%
Basic Resistance Accuracy	0.01%
Maximum Channels	576
Maximum Voltage	300 V
Connectivity	LAN, USB, GPIB
Interface	LAN, USB, GPIB
Switching Matrix	Yes
Channels	576 (6-slot mainframe)
Maximum Current	3 A
