Keithley 3706A Reference Manual

Series 3700A System Switch/Multimeter Reference Manual Appendix C: Status model
3700AS-901-01 Rev. D/June 2018 C-21
The following commands (sent from the master node) enable the appropriate register bits for the
above example:
Node 15 status registers: The following commands enable the events for Node 15:
node[15].status.questionable.enable = status.questionable.S1INL
node[15].status.node_enable = status.QSB
The affected status registers for the above commands are indicated by labels (1) and (2) (see the
"TSP-Link status model configuration example" figure below).
System registers: The following commands enable the required system summary bits for Node 15:
status.system2.enable = status.system2.NODE15
status.system.enable = status.system.EXT
The affected system registers for the above commands are indicated by labels (3) and (4) (see the
"TSP-Link status model configuration example" figure below).
Master Node service request: The following command enables the service request for the
measurement event:
status.request_enable = status.SSB
The affected status register for the above command is indicated by labels (5) and (6) (see the "TSP-
Link status model configuration example" figure below).

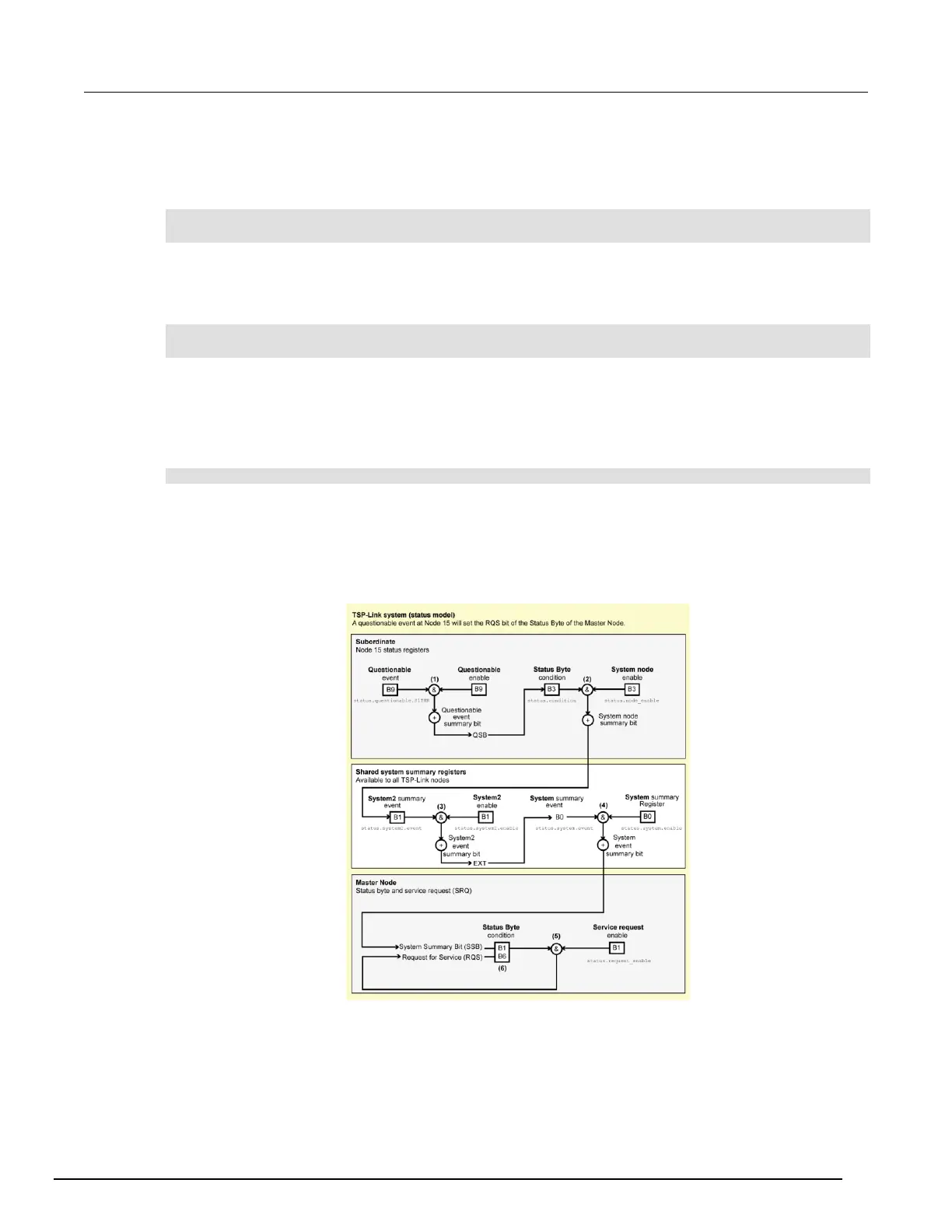

Figure 189: TSP-Link status model configuration example

Keithley 3706A Specifications

General

Model	3706A
Category	System Switch/Multimeter
Voltage Range	100 nV to 300 V
Basic DC Voltage Accuracy	0.0035%
Basic Resistance Accuracy	0.01%
Maximum Channels	576
Maximum Voltage	300 V
Connectivity	LAN, USB, GPIB
Interface	LAN, USB, GPIB
Switching Matrix	Yes
Channels	576 (6-slot mainframe)
Maximum Current	3 A
