Model 6487 Reference Manual Performance Verification 15-11
5. Verify voltage source accuracy for each of the values listed in Table 15-4. For each
test point:
• Select the correct Model 6487 voltage source range.
• Set the voltage source output to the indicated value.
• Make sure the voltage source is in operate (output on).
• Verify that the DMM voltage reading is within the limits given in the table.
6. Repeat the procedure for negative source currents with the same magnitudes as
those listed in Table 15-4.

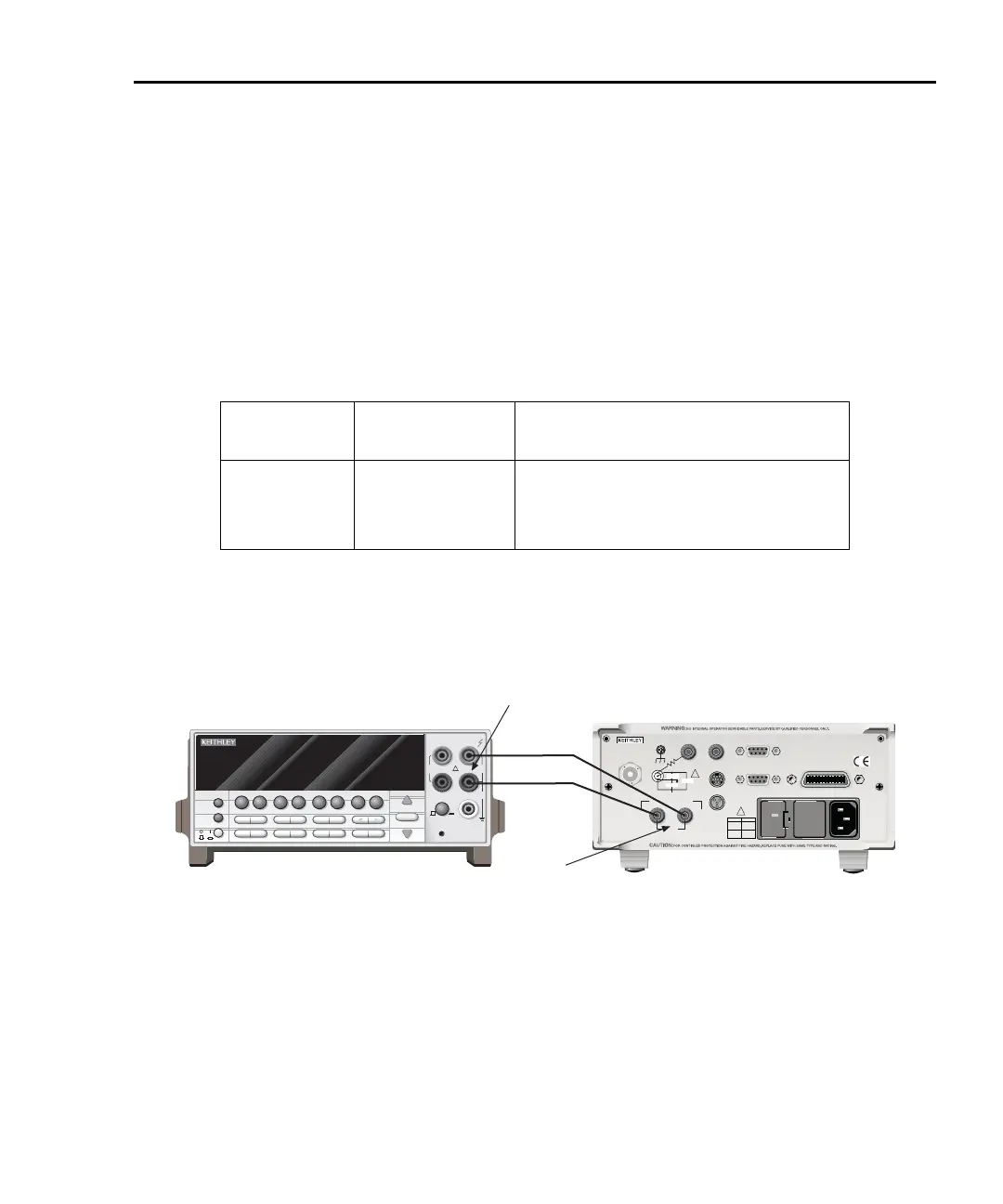

Figure 15-3
Connections for voltage source output accuracy
Table 15-4
Reading limits for voltage source accuracy
Model 6487
Source Range
Output
Voltage
Model 6487 Output Voltage Limits
(1 Year, 18°C-28°C)
10V 10.000V 9.989 to 10.011V
50V 50.000V 49.946 to 50.054V
500V 500.00V 499.21 to 500.79V
