Attaching to a Claas forage harvester
KM00321,0000880 -19-18DEC18-3/9
KM00321,0000880 -19-18DEC18-4/9
Continued on next page KM00321,0000880 -19-18DEC18-5/9

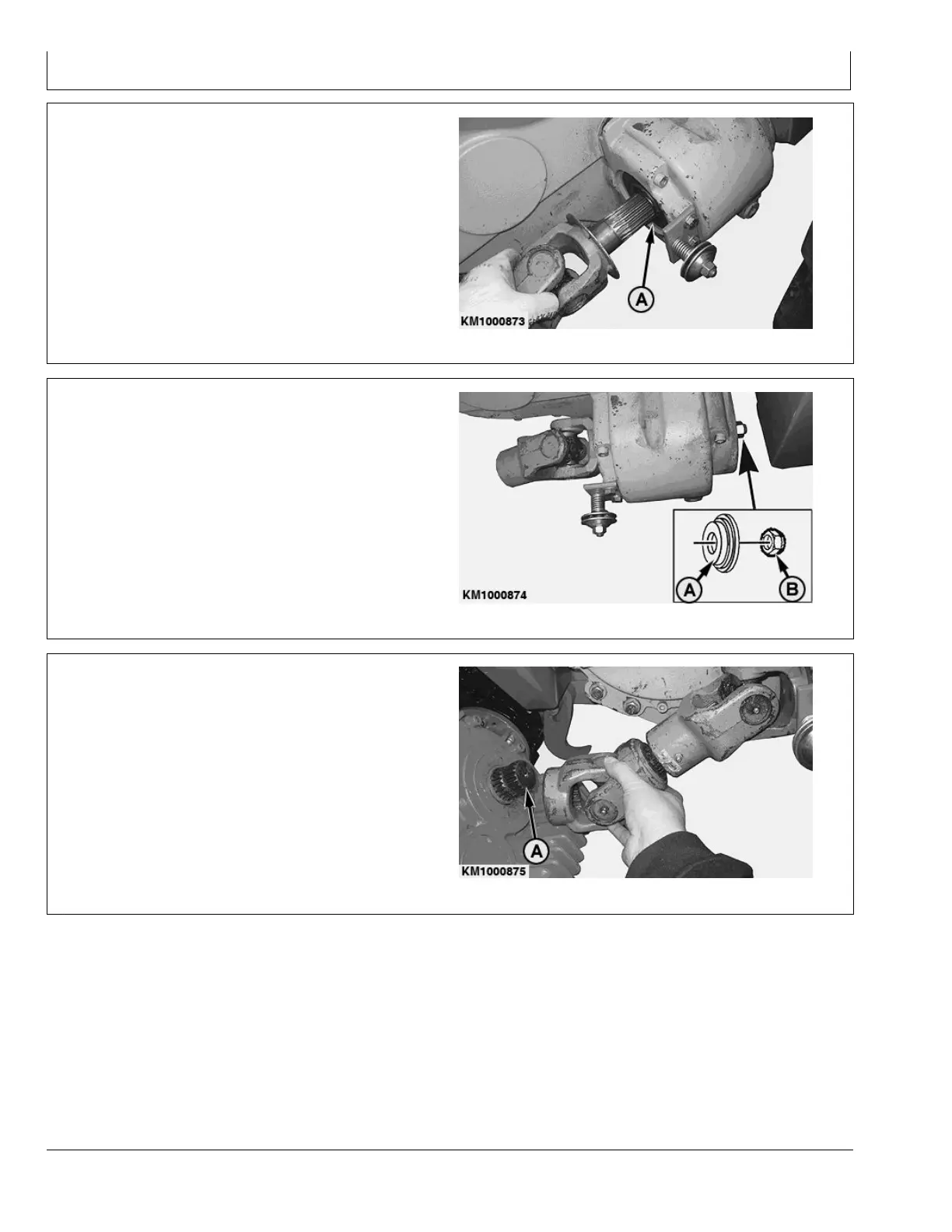

3. First insert universal-jointed shaft into splined bushing
(A) of the rotary harvesting unit drive on the forage
harvester.
A—Splined bushing
KM1000873 —UN—26MAY09
4. Secure universal-jointed shaft with bushing (A) and
retaining nut (B).
A—Bushing B—Retaining nut
KM1000874 —UN—26MAY09
5. Put the other end of the universal-jointed shaft on the
rotary harvesting unit gearbox (A).
A—Transmission
KM1000875 —UN—26MAY09
20-17
031519
PN=44
