Kemper 345plus - Page 45

Attaching to a Claas forage harvester
KM00321,0000880 -19-18DEC18-6/9
Continued on next page KM00321,0000880 -19-18DEC18-7/9

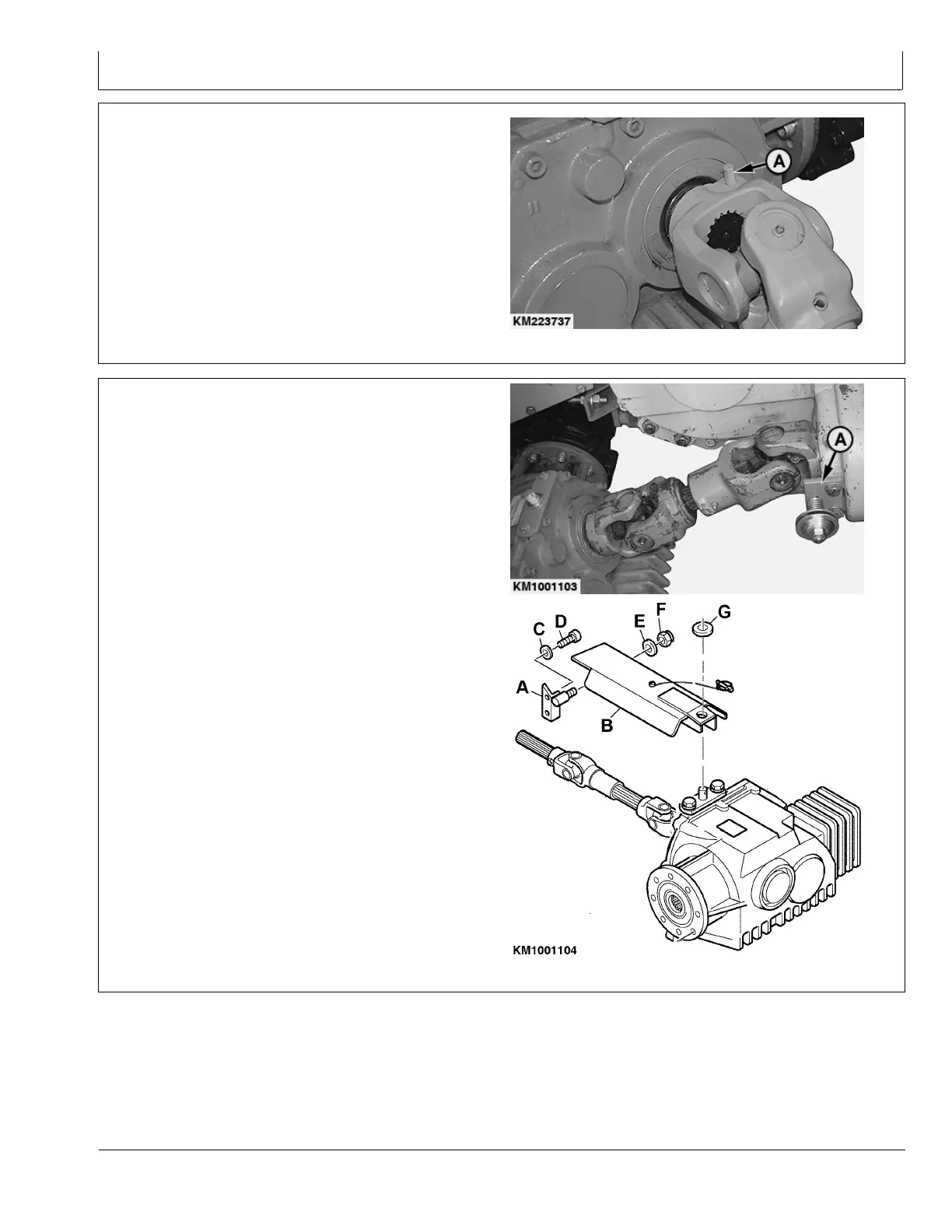

6. Ensure that sliding pin (A) is engaged and that the
universal-jointed shaft is secured.
A—Sliding pin
KM223737 —UN—22OCT14
Installing the Universal-jointed Shaft Shield
(Claas 493, 494 and 497)
Install bracket (A).
Install the universal-jointed shaft shield (B).
A—Bracket
B—Universal-Jointed shaft
shield
C—Spring washer
D—Cap screw
E—Washer
F— Retaining nut
G—Washer
KM1001103 —UN—09FEB10KM1001104 —UN—09FEB10
20-18
031519
PN=45
