Attaching to a Claas forage harvester
Continued on next page KM00321,0000880 -19-18DEC18-8/9

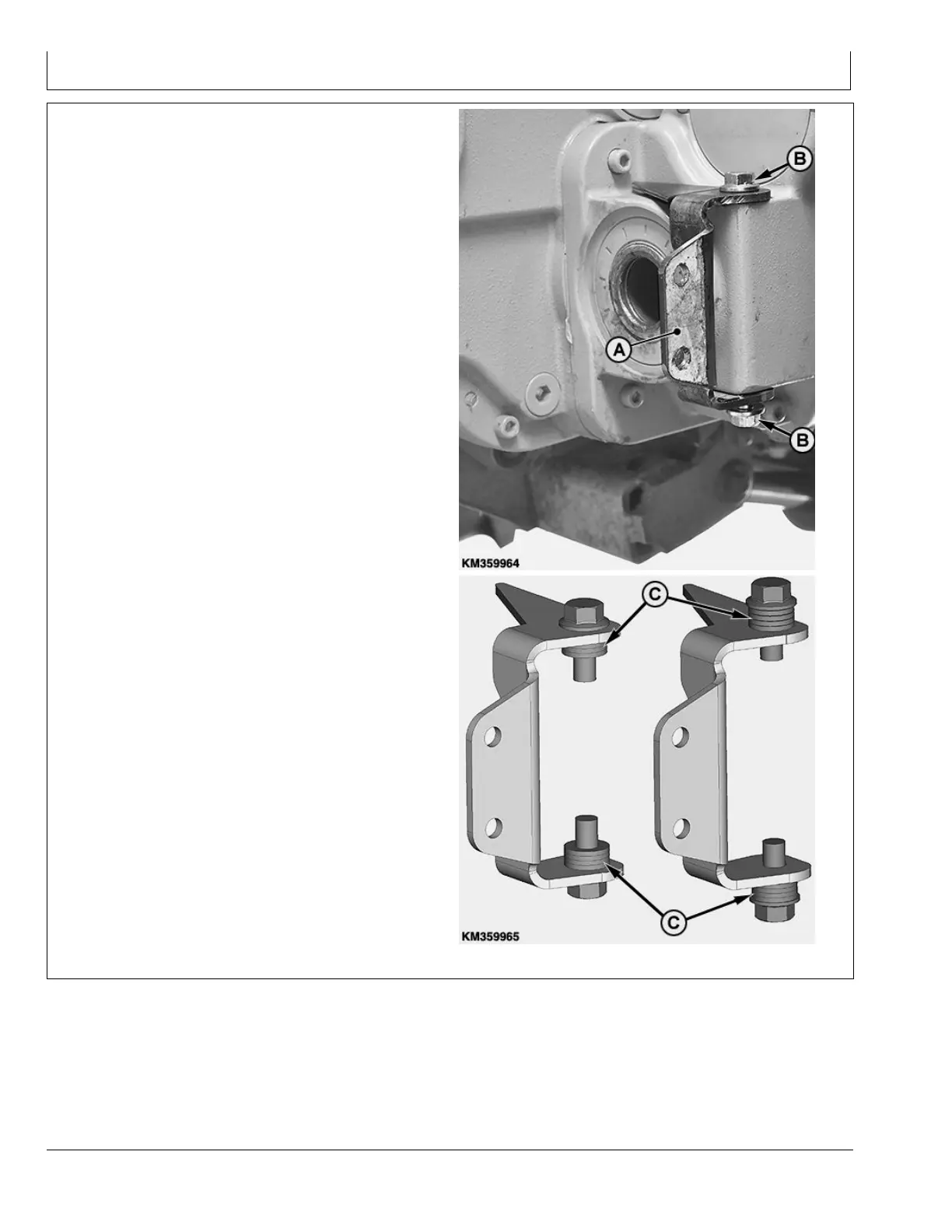

Installing the Universal-jointed Shaft Shield
(Claas 498)
Fix adapter (A) with flange screws (B).
NOTE: Insert washers (C) as needed.
A—Adapter
B—Flange screw
C—Washers
KM359964 —UN—17DEC18KM359965 —UN—17DEC18
