Attaching to a Claas forage harvester
KM00321,0000340 -19-22OCT14-6/8
Continued on next page KM00321,0000340 -19-22OCT14-7/8

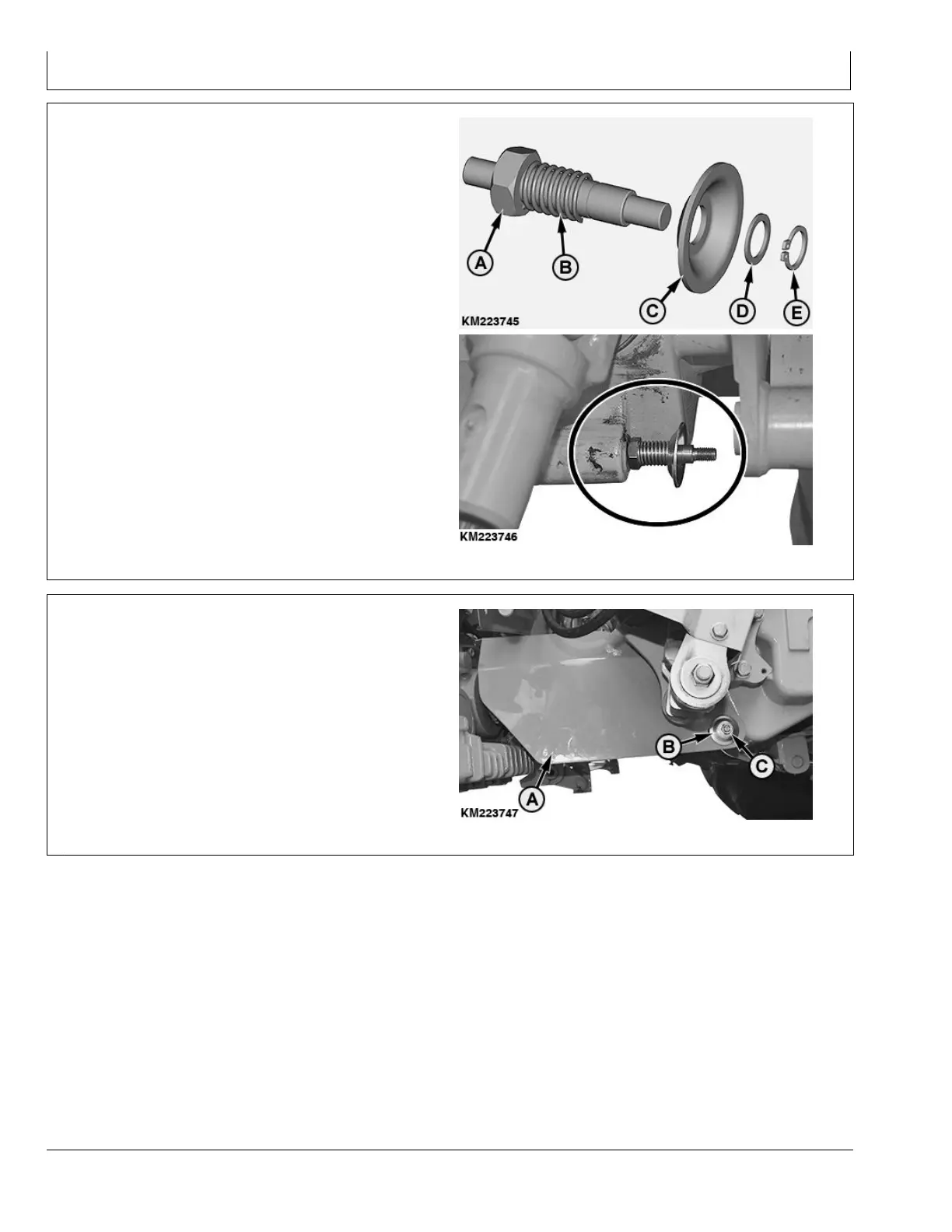

8. Pre-assemble the bracket and install it on the header
drive of the forage harvester.
A—Shaft
B—Spring
C—Curved Spring Washer
D—Washer
E—Snap Ring
KM223745 —UN—22OCT14KM223746 —UN—22OCT14
9. Install u.j. shaft shield (A) and secure with curved
spring washer (B) and lock nut (C).
A—U.J. Shaft Shield
B—Curved Spring Washer
C—Lock Nut
KM223747 —UN—22OCT14
20-23
