Attaching to a Claas forage harvester
KM00321,0000340 -19-22OCT14-4/8
Continued on next page KM00321,0000340 -19-22OCT14-5/8

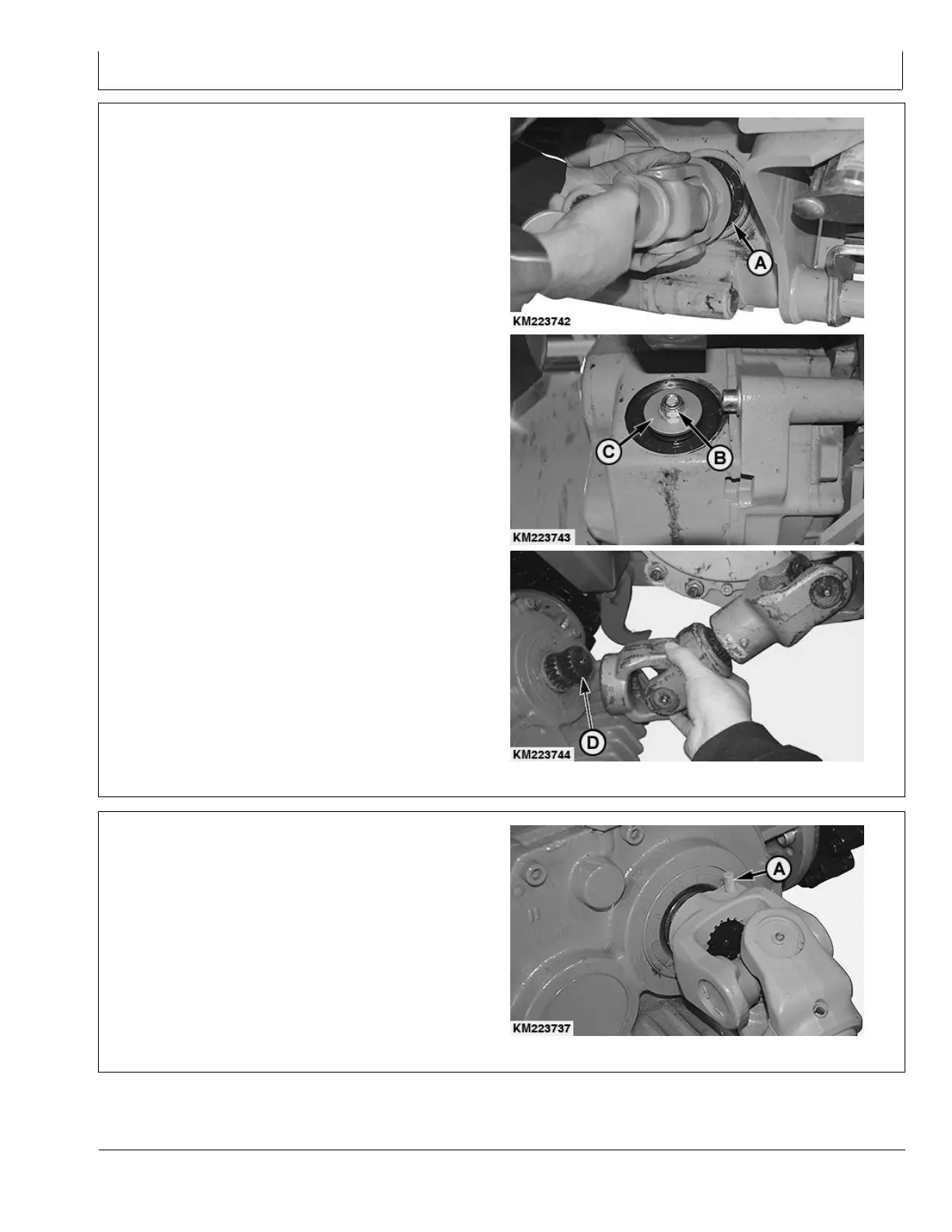

4. Insert the u.j. shaft into header drive (A) on the forage
harvester.
5. Secure the u.j. shaft to the rear of the header drive
using washer (C) and lock nut (B).
6. Put the other end of the u.j. shaft on the rotary
harvesting unit gear box (D).
A—Header Drive
B—Lock Nut
C—Washer
D—Gear Box
KM223742 —UN—22OCT14KM223743 —UN—22OCT14KM223744 —UN—22OCT14
7. Make sure that sliding pin (A) is engaged and that the
u.j. shaft is secured.
A—Sliding Pin
KM223737 —UN—22OCT14
