Attaching to a KRONE Forage Harvester
KM00321,000053E -19-21JUN16-2/11
Continued on next page KM00321,000053E -19-21JUN16-3/11

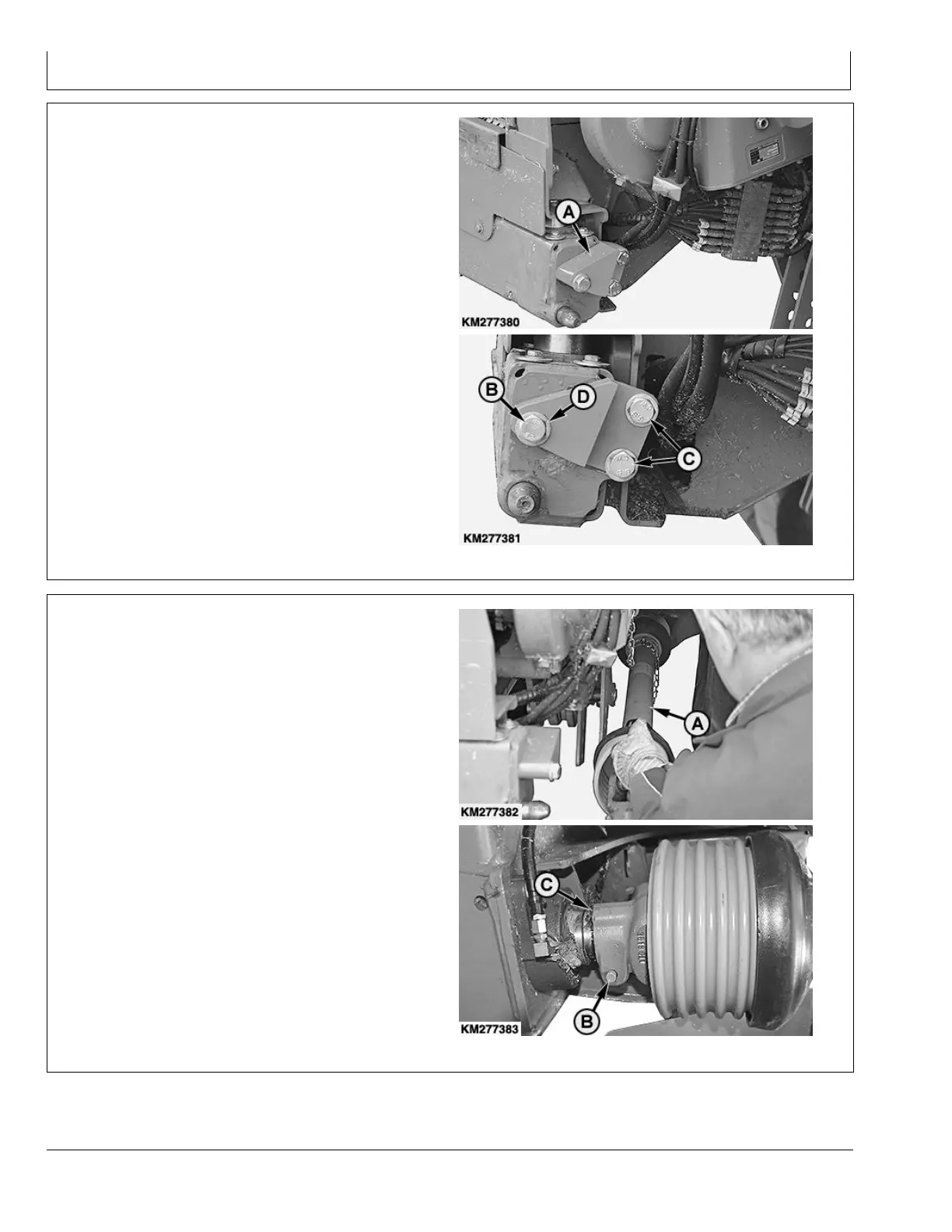

2. Use screws (B) and (C) and lock washers (D) to install
console (A).
Tighten screws (B) and (C) to specification.
Specification
M16 Screws—Torque..................................................................320 N·m
236 lb.-ft.
A—Console
B—M16x70 Screw
C—M16x35 Screws
D—Lock Washer
KM277380 —UN—21NOV16KM277381 —UN—21NOV16
3. Connect driveshaft (A) to the forage harvester.
NOTE: One end of the driveshaft has been machined
with shaped area (C). Connect the machined end
of the driveshaft to the forage harvester.
IMPORTANT: Make sure that the sliding pin (B)
engages and that the driveshaft is secure.
A—Driveshaft
B—Sliding Pin
C—Shaped Area
KM277382 —UN—21NOV16KM277383 —UN—21NOV16
22-3
031519
PN=54
