Attaching to a KRONE Forage Harvester
KM00321,000053E -19-21JUN16-4/11
Continued on next page KM00321,000053E -19-21JUN16-5/11

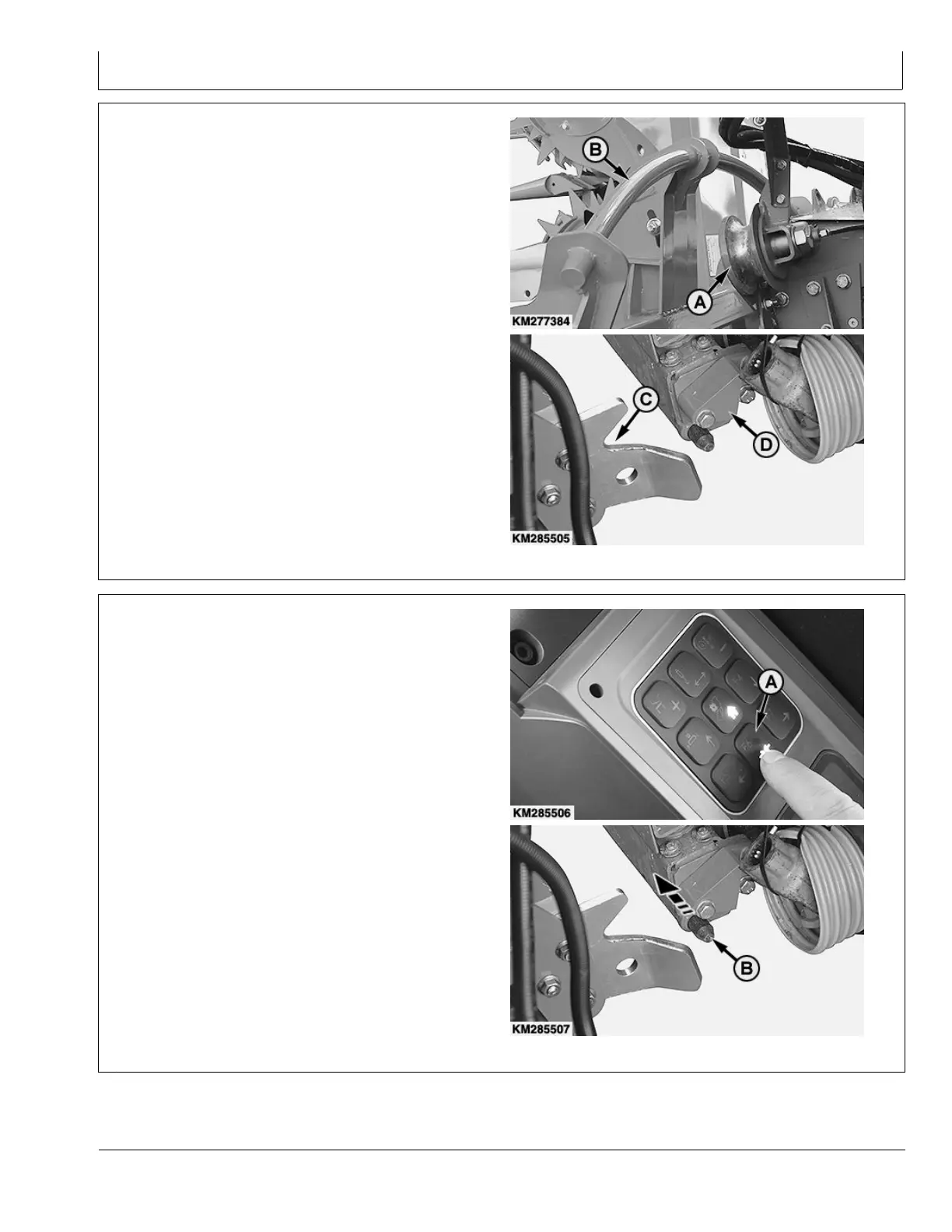

4. Drive the forage harvester slowly to the rotary
harvester unit until oscillating frame rollers (A) on the
right and left sides of the forage harvester are located
below pipe (B) on the rotary harvesting unit.
5. Make sure that the lower opening (C) in the rotary
harvesting unit is in front of console (D).
A—Rollers on Oscillating
Frame
B—Pipe
C—Opening
D—Console
KM277384 —UN—21NOV16KM285505 —UN—21NOV16
6. Keep softkey (A) pressed down to retract locking pins
(B).
A—Softkey
B—Locking Pin
