Attaching to a KRONE Forage Harvester
KM00321,000053E -19-21JUN16-8/11
Continued on next page KM00321,000053E -19-21JUN16-9/11

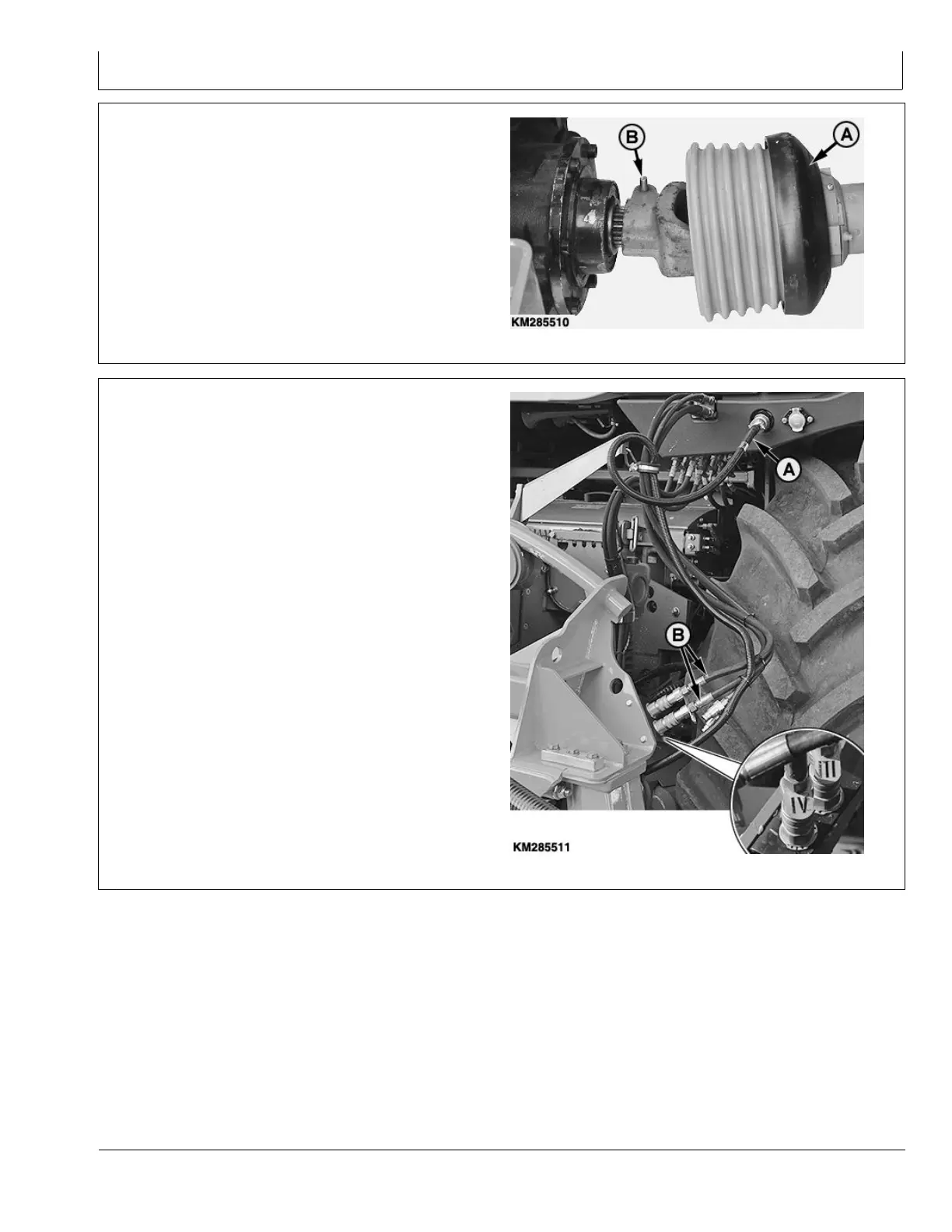

10. Connect driveshaft (A) to the transmission of rotary
harvesting unit.
IMPORTANT: Make sure that the sliding pin (B)
engages and that the driveshaft is secure.
NOTE: For clarity, the shield has been removed from
the rotary harvesting unit. Never operate the
rotary harvesting unit without the shield.
A—Driveshaft B—Sliding Pin
KM285510 —UN—21NOV16
11. Connect main wiring harness (A) for height control and
row guidance options.
NOTE: Hydraulic hoses (B) of the forage harvester
are marked individually.
12. As shown, connect hydraulic hoses (III) and (IV) for
the folding function of the rotary harvesting unit.
A—Main Wiring Harness B—Hydraulic Hoses
KM285511 —UN—21NOV16
22-6
031519
PN=57
