Kemper 360 - Length of Cut and Drum Speeds with CLAAS Forage Harvester 830­900

Operation of the Rotary Harvesting Unit
KM00321,0000283 1925FEB101/2
KM00321,0000283 1925FEB102/2
Length of Cut and Drum Speeds with CLAAS
Forage Harvester 830900 (Type 492)
See tables below to determine lengthofcut adjustment.
NOTE: The twospeed gear box (V) is optional. The
ratio of the standard gear box equals the 1st
gear of the twospeed gear box.

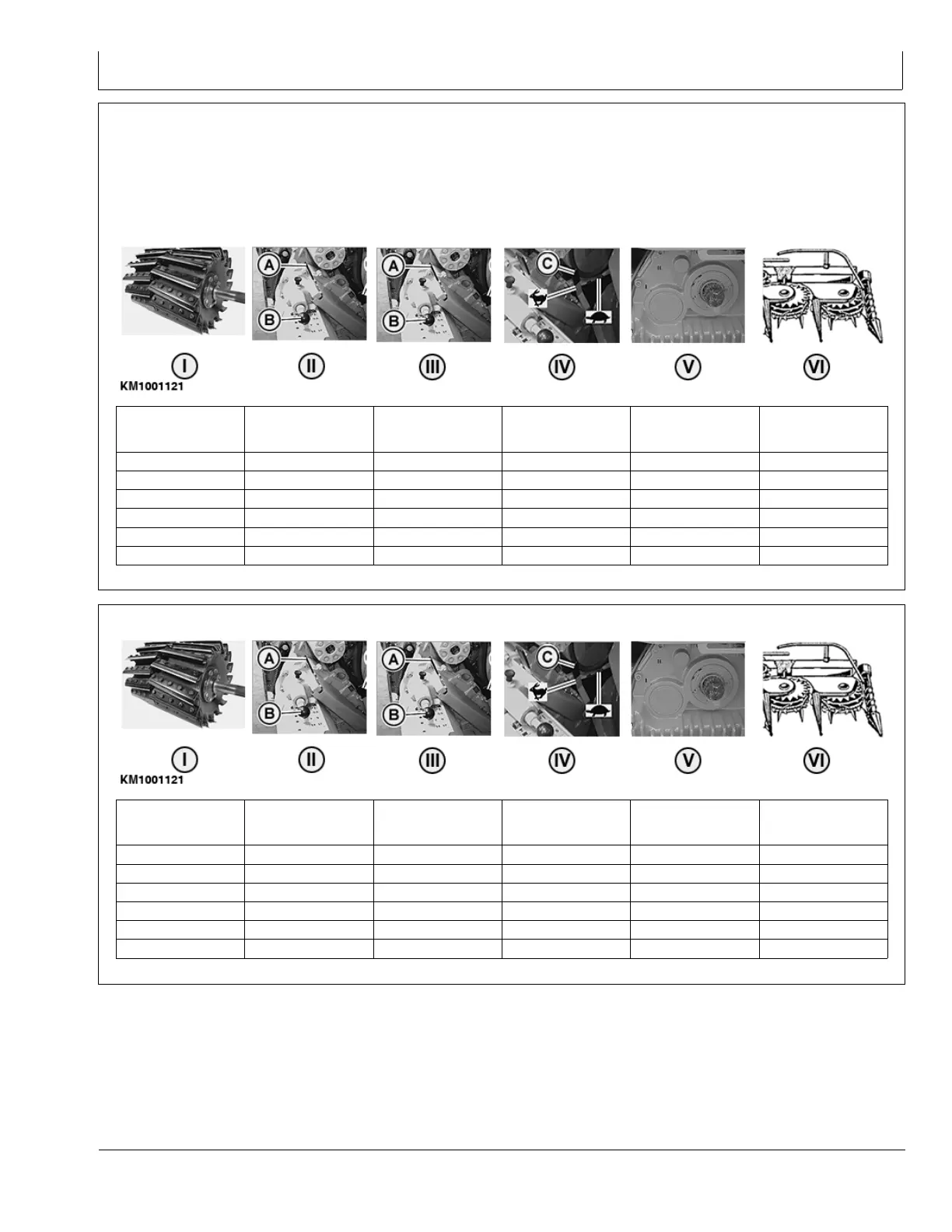

Cutterhead with 24 knives (type 492)
KM1001121 —UN—22FEB10
I—Length of cut,
cutterhead with
2x12 knives
II—Lever 1 (B)
position
III—Lever 2 (A)
position
IV—Lever (C)
position
V—Rotary harvesting
unit, gear
VI—Gathering drum
speed
4 mm 1 slow slow 1 42
5.5 mm
1
fast fast
1 51
7 mm
2 slow slow 2 53
9 mm 2
fast fast
1 51
14 mm 3 slow slow 2 53
17 mm 3
fast fast
2 64
Cutterhead with 20 knives (type 492)
KM1001121 —UN—22FEB10
I—Length of cut,
cutterhead with
2x10 knives
II—Lever 1 (B)
position
III—Lever 2 (A)
position
IV—Lever (C)
position
V—Rotary harvesting
unit, gear
VI—Gathering drum
speed
5 mm
1 slow slow 1 42
6.5 mm 1
fast fast
1 51
8.5 mm 2 slow slow 2 53
11 mm 2
fast fast
1 51
17 mm 3 slow slow 2 53
21 mm 3
fast fast
2 64
