Operation of the Rotary Harvesting Unit
Continued on next page KM00321,0000284 1922FEB105/6

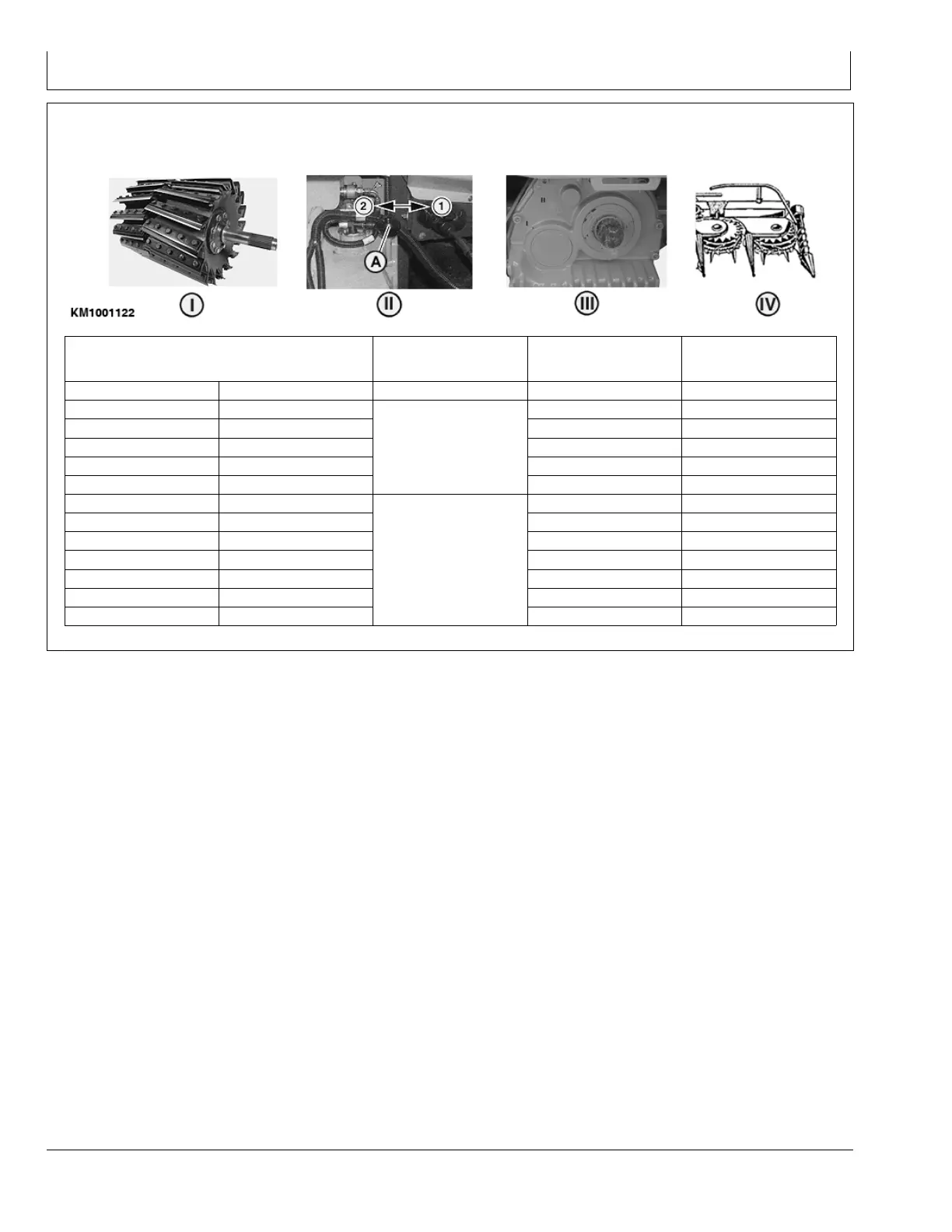

Cutterhead with 20 knives (type 493)
Twospeed gear box (III) for normal to long length of
cut (standard)
KM1001122 —UN—22FEB10
I—Length of cut, number of knives II—Lengthofcut
transmission, forage
harvester
III—Rotary harvesting
unit drive
IV—Gathering drum
speed
2x10 knives 2x5 knives
Gear Gear
rpm
7.3 mm 14.7 mm 1 51
8.5 mm 17.0 mm 1 51
9.7 mm 19.3 mm 1 51
10.8 mm 21.7 mm 1 51
12 mm 24 mm
1
2 64
10 mm 20 mm 1 51
11.2 mm 22.4 mm 1 51
12.4 mm 24.8 mm 2 64
13.6 mm 27.2 mm 2 64
14.8 mm 29.6 mm 2 64
16 mm 32 mm 2 64
17.2 mm 34.4 mm
2
2 64
3018
