Operation of the Rotary Harvesting Unit
KM00321,0000288 1923FEB102/3
KM00321,0000288 1923FEB103/3
 Without steering assistance, covers (C) are installed on
the dividers (3) and (4).
 With steering assistance (ex works or retrofitted), the
two sensors (A) and (B) are integrated in the dividers
(3) and (4).
IMPORTANT: When operating steering assistance
device, make sure that distance (X) between
tips of sensor feelers is 10 to 30 mm (0.40 to
1.18 in.) and that feelers move freely.

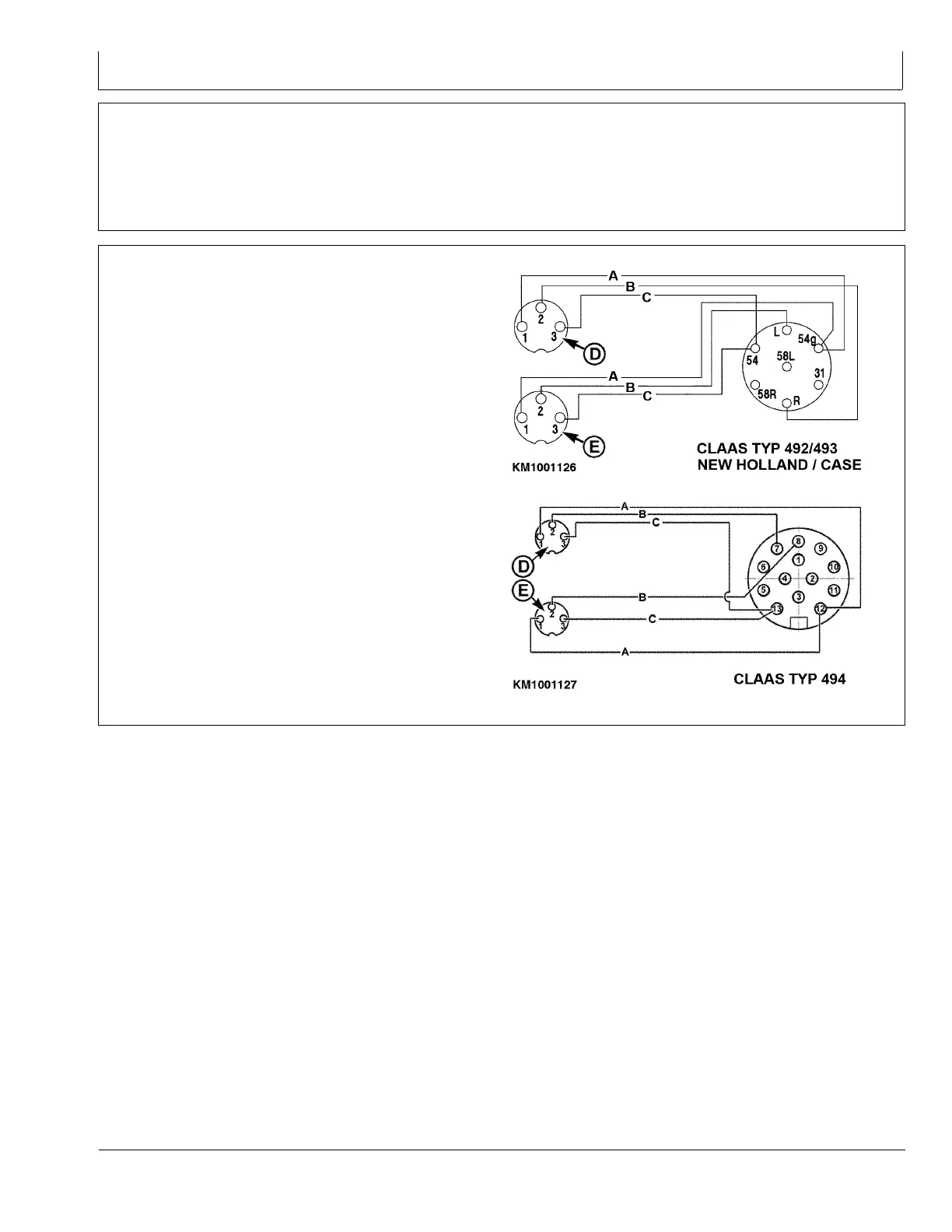

Depending on the forage harvester brand and model, the
harness connection is different. Refer to the illustration
opposite for proper harness connection.
A—Blue
B—Greenyellow
C—Brown
D—Sensor, left
E—Sensor, right
KM1001126 —UN—23FEB10KM1001127 —UN—23FEB10
