X8 MIG WELDER 2.4 Installation
Ensure that the wire spool is facing the right direction, the filler wire running from
the top of the spool to the feed rolls.

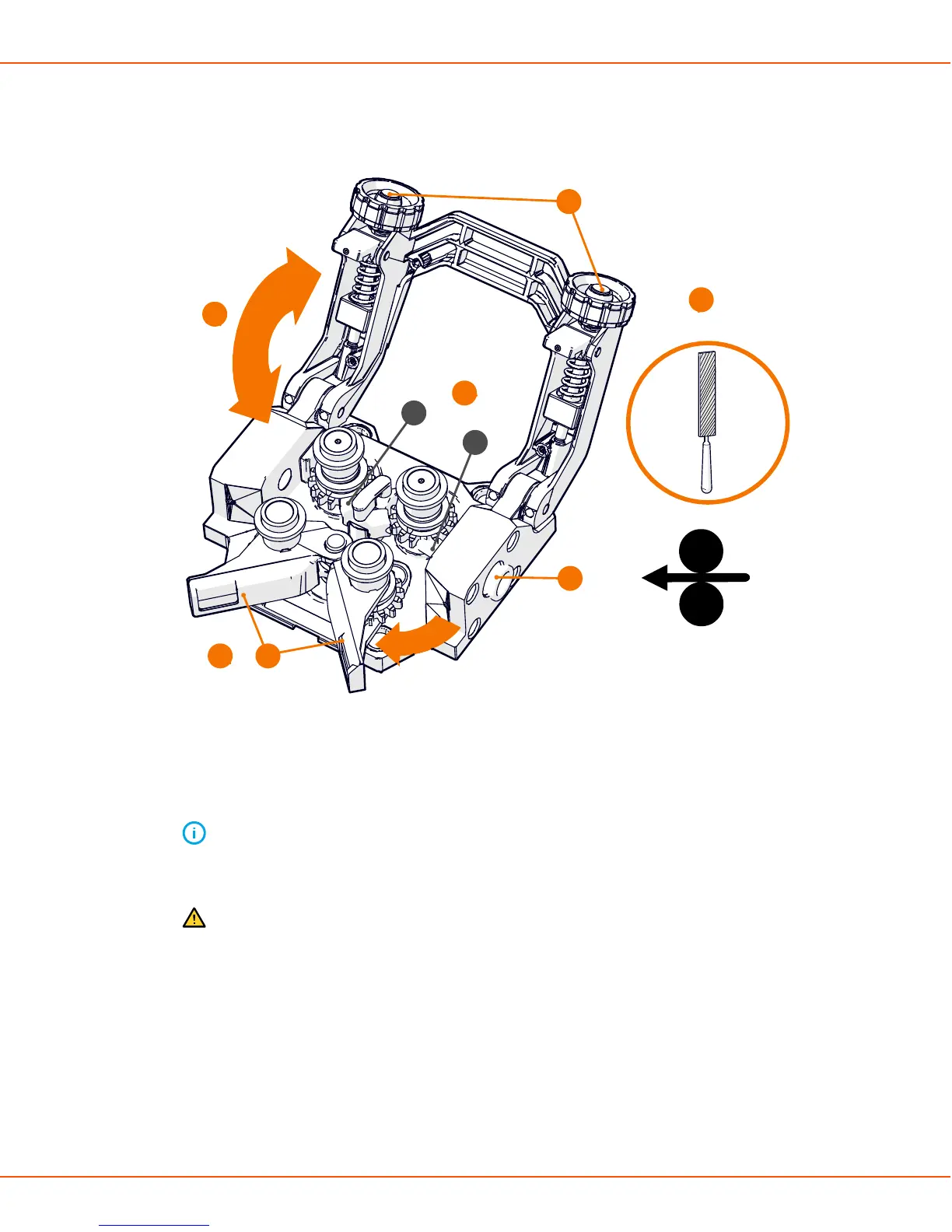

d) Lift the pressure handle off of the feed rolls (4).
8
10
5
11
9
A
B
7
6
e) Release the pressure arms to move the feed rolls apart. This opens a gap between the feed
rolls (5).
f) Release the filler wire end from the spool and cut off any deformed section so that the end
is straight (6).
Note:
Ensure that the filler wire does not spill from the spool when it is released.
g) File the tip of the filler wire smooth (7).
Caution:
Sharp edges on the filler wire tip may damage the wire liner.
h) Guide the filler wire through the inlet tube and middle wire guide tube to the outlet, which
feeds the filler wire to the welding gun (8). Push the filler wire by hand inside the gun so
that the wire reaches the wire liner (about 20 cm).
i) Close the pressure arms so that the filler wire is locked between the feed rolls (9). Ensure
that the filler wire sits in the feed roll grooves.
j) Lower the pressure handle on the feed rolls (10).
k) Adjust the pressure of the feed rolls with the pressure adjustment wheels (11). The
pressure is the same for both feed roll pairs.
OPERATING MANUAL | EN 47
©
KEMPPI 2017 | 1817
