X8 MIG WELDER 2.4 Installation
f) If the water cooler is present, use the blue connector (6) for the hose that comes from the
cooler.
g) If you need shielding gas, connect the shielding gas hose to the gas cylinder.
The power source can be connected to two wire feeders at the same time.
Caution:
Ensure that you have connected and tightened all the cables properly.
2.4.4.2 Cabling diagram
Connect the interconnection cables to power source and wire feeder. The figure below shows the
cables with colors to facilitate the identification.

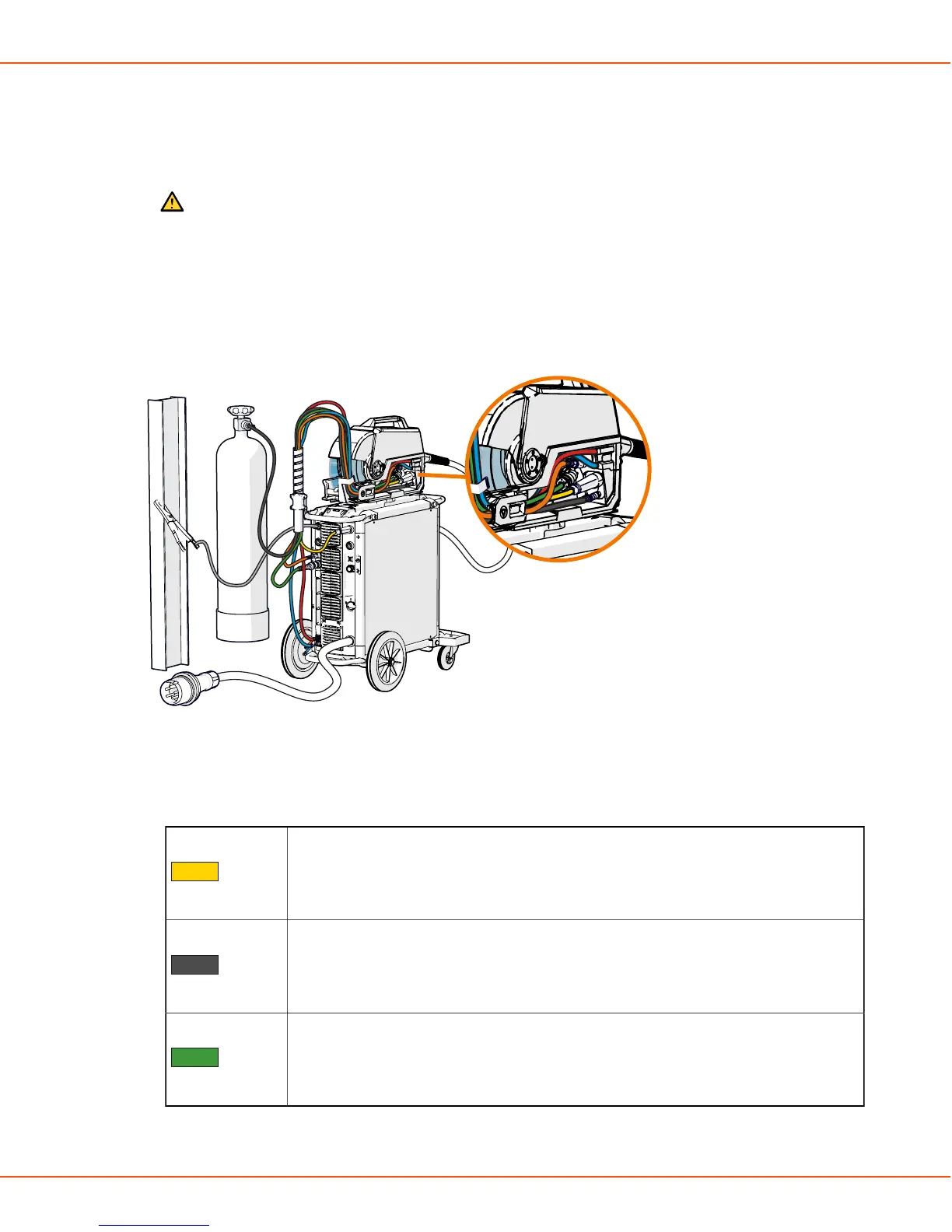

Figure 3: Interconnection cabling for power source and wire feeder
Table 3: Color codes
Welding current cable
Shielding gas hose
Control cable
OPERATING MANUAL | EN 54
©
KEMPPI 2017 | 1817
