X8 MIG WELDER 2.4 Installation
2.

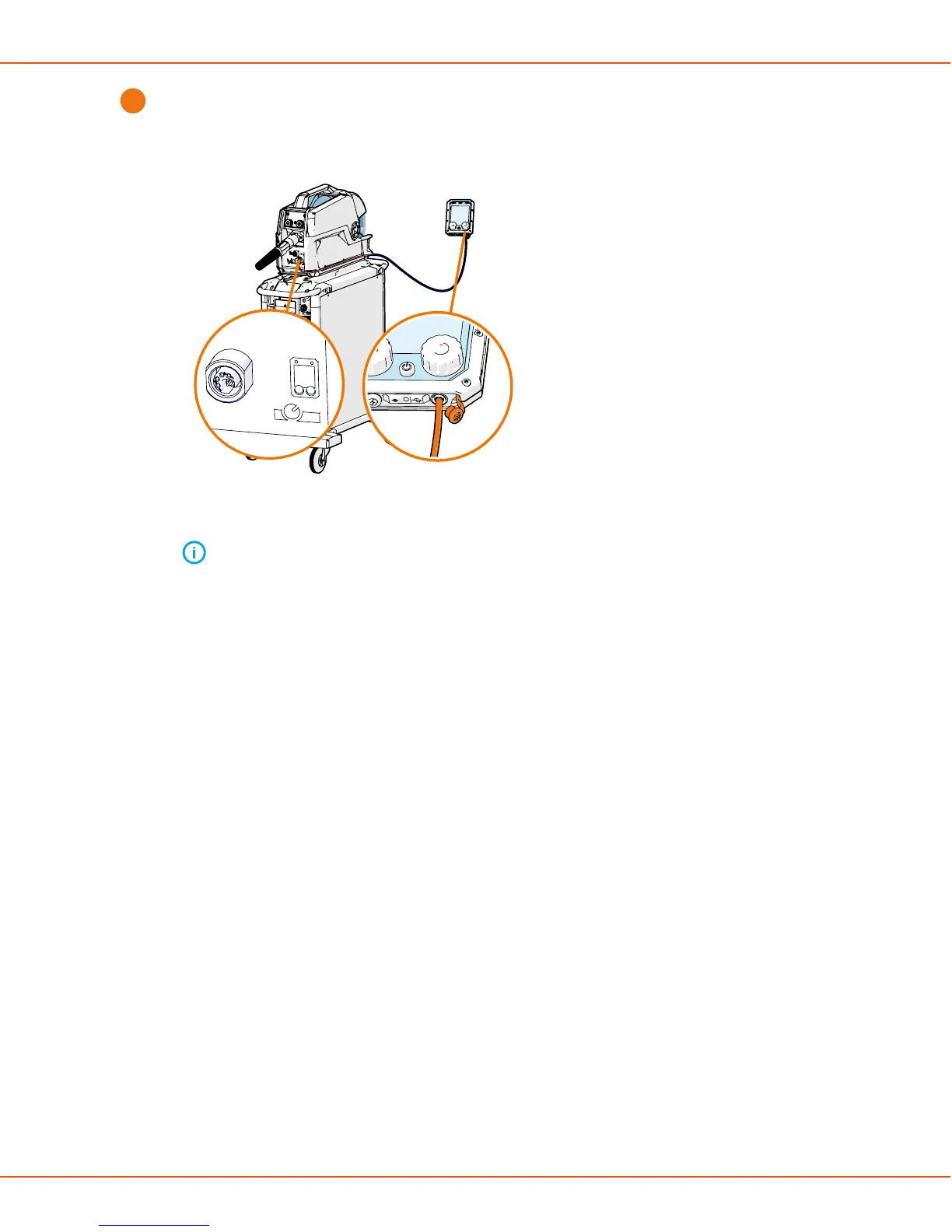

To make a wired connection between Control Pad and the wire feeder:
a) Plug the combo cable to the remote control connector of the wire feeder.
The connector is marked with a Control Pad icon.
b) Plug the combo cable to the combo cable port on the bottom of Control Pad.
Note: Use mainly the external charger to charge Control Pad.
2.4.5.3 Suspending Control Pad
Control Pad has a hook, which you can use to suspend it on the welding machine or other
suitable place. Control Pad also has a loop in each corner, which you can use for a sling.
OPERATING MANUAL | EN 59
©
KEMPPI 2017 | 1817
