X8 MIG WELDER 2.4 Installation
b) Move focus to a wire feeder or a power source.
c) Press the green button.

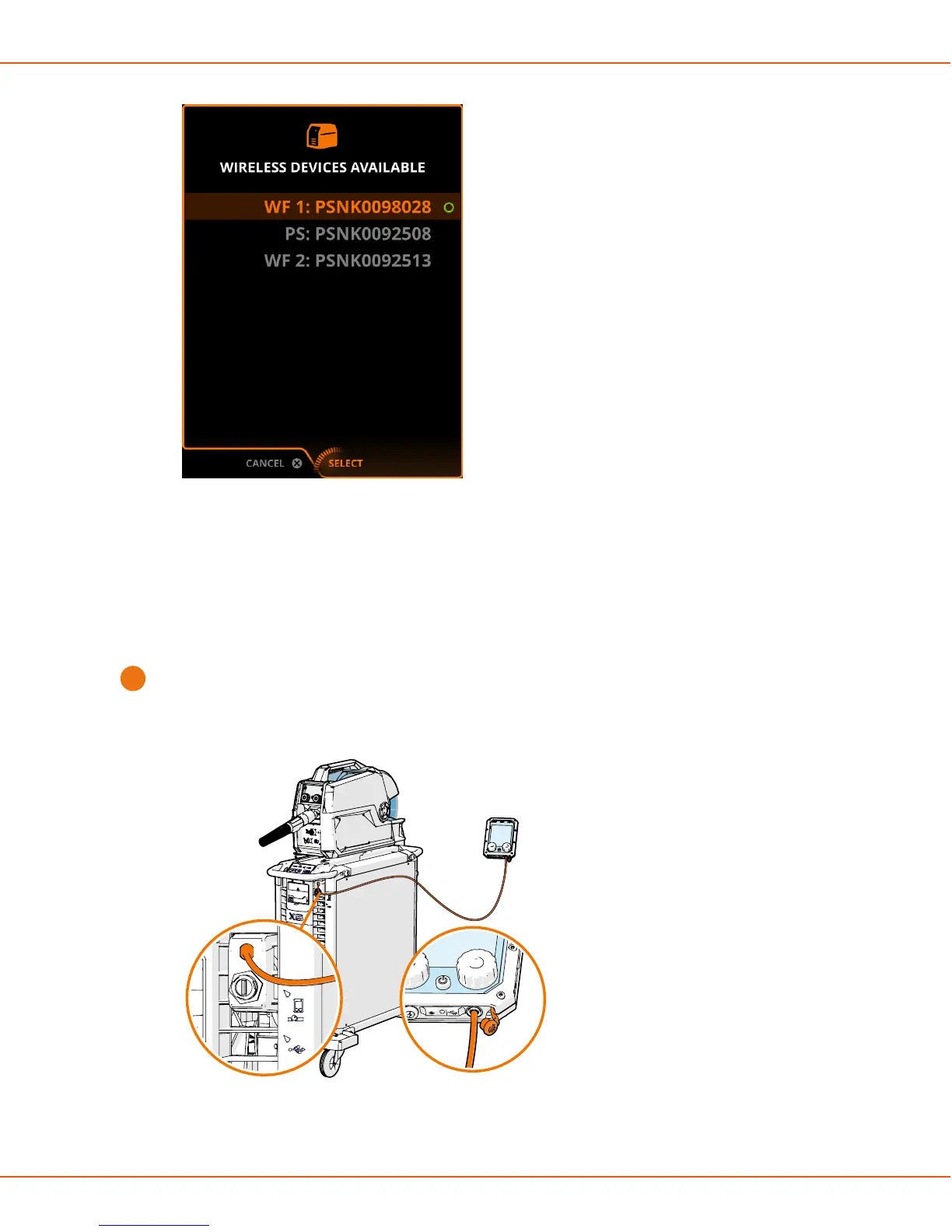

2.4.5.2 Wired connection
Control Pad makes a wired connection with X8 Power Source and X8 Wire Feeder. Connect
Control Pad to a wired connection, when wireless connection is unavailable.
Proceed as follows:
1.
To make a wired connection between Control Pad and the power source:
a) Plug the combo cable to the Control Pad connector of the power source.
The connector is marked with a Control Pad icon.
b) Plug the combo cable to the combo cable port on the bottom of Control Pad.
OPERATING MANUAL | EN 58
©
KEMPPI 2017 | 1817
