Keyscan CA250B User Manual

Keyscan Inc. – Technical Guide (PC109x - 04.15)
100

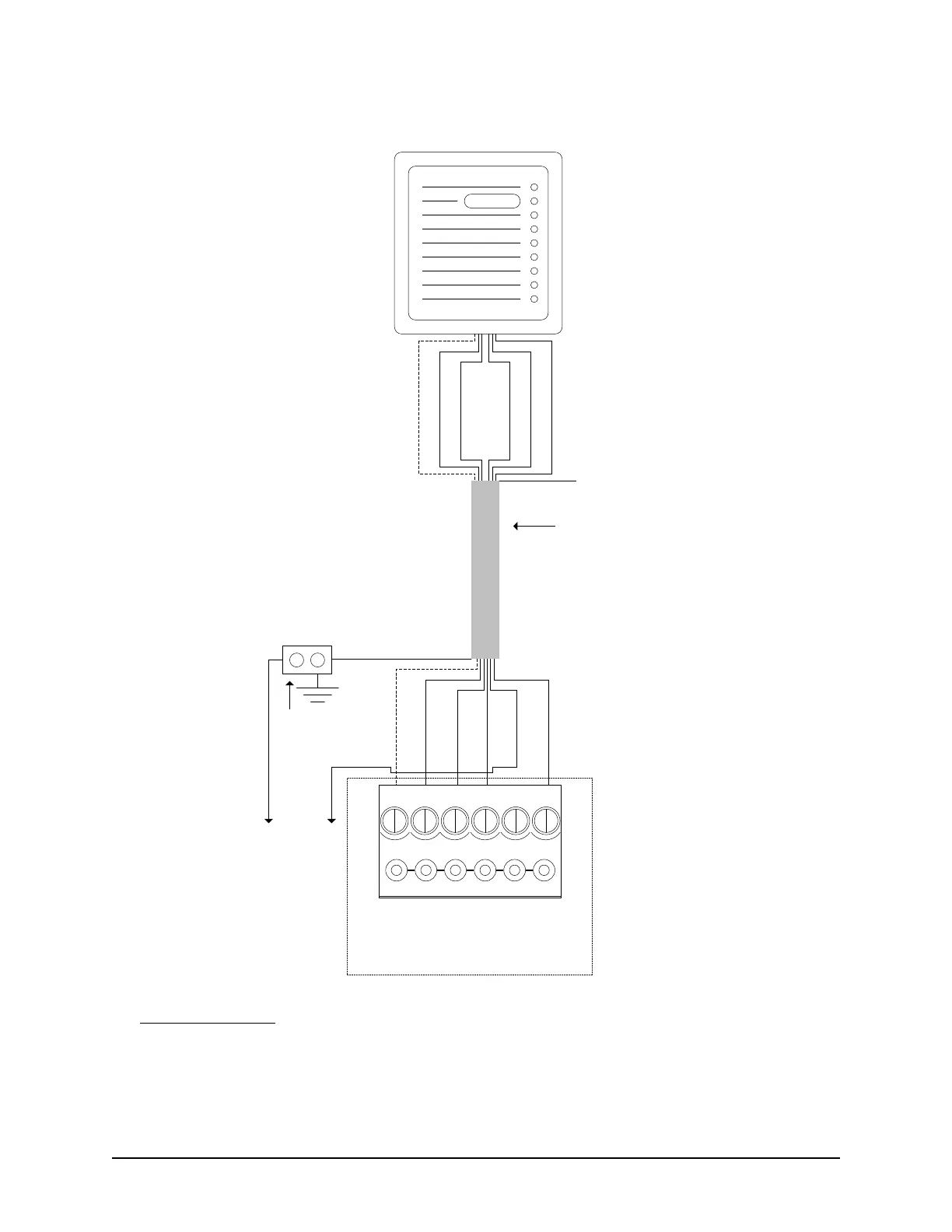

Figure 66 – HID 5355 Wiring
Notes on HID 5355
The HID 5355 is suitable for indoor and outdoor use. Maximum read range at 12VDC – ProxCard II card is
9" (22 cm) – ISO ProxII card is 8" (20 cm).
Shield not connected.
Isolate with electrical tape.
Shield
ACU Ground
Lug
Red
+
VDC
Black
to separate DC
power
supply
6 conductors shielded 22 AWG
500 ft (152.4 m) maximum
Reader terminal on control board
LED D1
WHT
D0
GRN
PWR
RED
GND
BLK
C1
(BEEP)
LED D1 (White) D0 (Green) PWR (Red) GND (Black) Pre-alert (Yellow)
D1 (White) D0 (Green) PWR (Red)
GND (Black)
LED Pre-alert (Yellow)
Yellow (Beeper) used for pre-alert
otherwise isolate and tape back.
If connecting external sound device,
see Pre-Alert Relay Option or refer to
ACU cut sheet enclosed with panel
for ACU/OCB8 relay assignments.
Note - If Pre-alert is connected,
the reader cannot read any
HID 125 kHz-compatible card
during the pre-alert beep.
KI-00203E-07-11
