Keyscan Inc. – Technical Guide (PC109x - 04.15)

Test Points – Communication Terminals

The following table outlines the correct voltages for the test points on the communication terminal on the CA

or EC control board.

Table 17 – Communication Voltage Test Points

Communication Test Point

Voltage

Instructions/Notes

CA / EC Communication Terminal

RS-232 connected to ACU

Connect voltmeter COM to GND on ACU communication

terminal block or green on data cable.

GND

(-) 9 VDC

TD is an ACU generated voltage

(-) 10 VDC

RD is a PC generated voltage

DCD

DTR

n/a

CTS

n/a

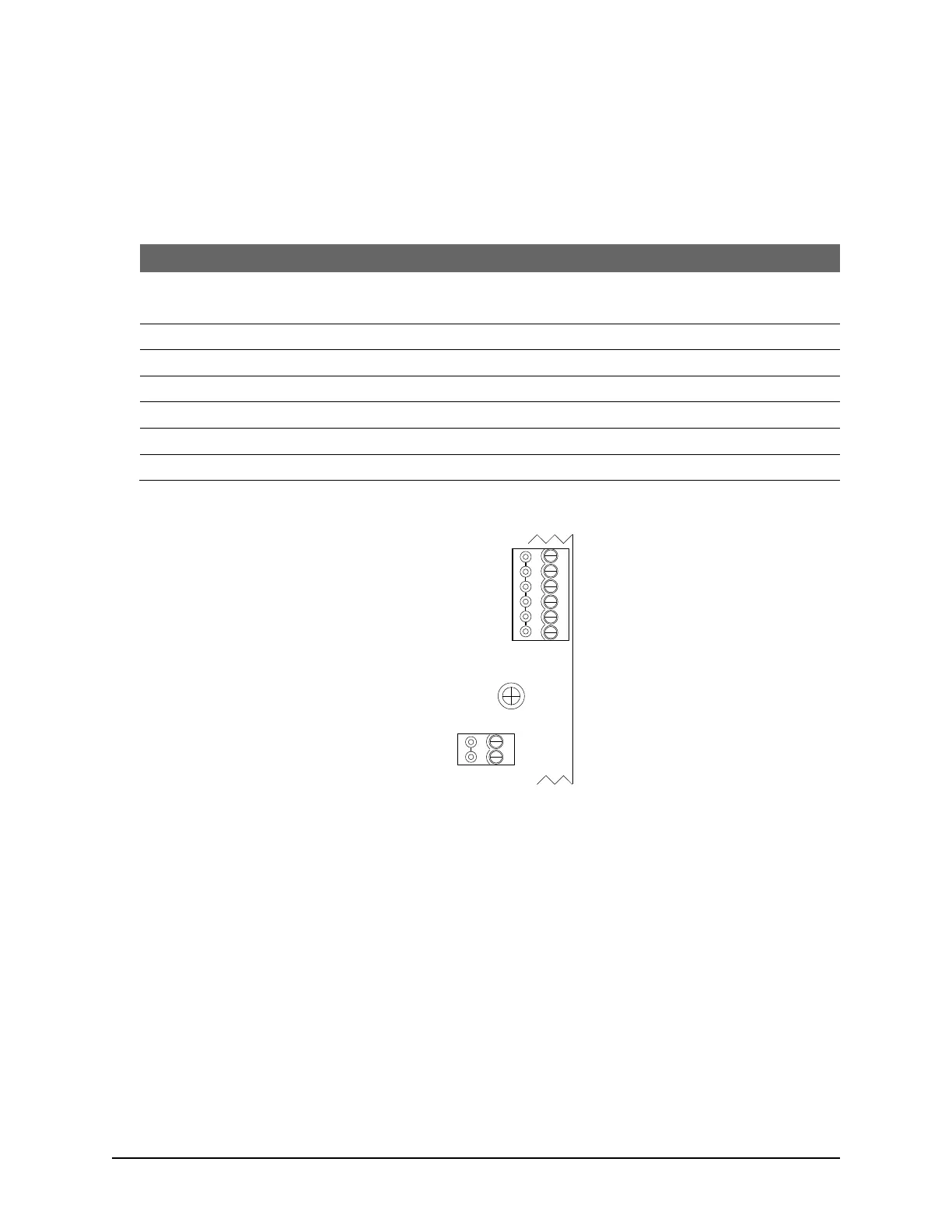

Figure 56 – Control Board Communication Test Points

GND

RS-232 (COM4)

Control Board

(PC 109x)

DCD

DTR

CTS

IOCB (COM1)

KI-00194E-07-11
