Keyscan Inc.
–
Techn
ical Guide (PC10
9x - 04
.1
5)
62

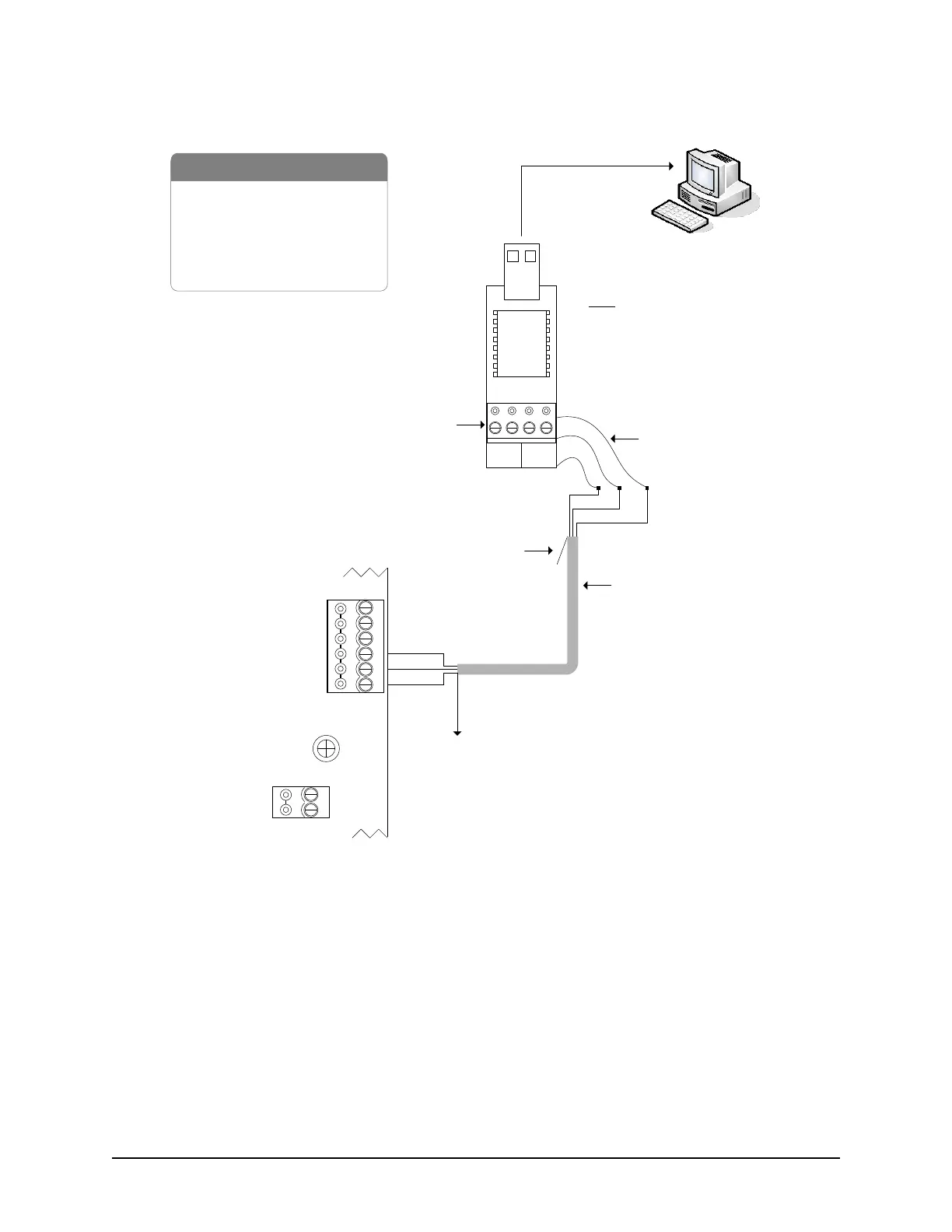

Figure
43
–
Single ACU
Communic
ation - USB
Adapto
r
PC with
Communication
Manager
- USB Adaptor (USB-SER)
- RS-232 Data Cable
- Control Board
- PC (requires USB port)
- USB extension cable optional
BRN
WHT
GRN
WHT
+ TX -
+ RX -
485 OUT
485 IN
To USB port on PC
(may require USB
extender cable)
485 terminal
block not used
use 3 loose
RS-232 wires
tape
back
shield
Note
USB communication is slower
than direct serial or NETCOM
communication.
Do not connect USB adaptor to
modem.
RS-232
22 AWG shielded cable
Maximum - 100 ft (30 M)
Green
Black
Red
Unused conductors are
taped back separately.
Unused conductors are
taped back separately.
GND
RS-232 (COM4)
Control Board
(PC 109x)
Green
Black
TD
RD
DCD
DTR
CTS
Red
To ground lug
Shield*
IOCB (COM1)
RX
TX
Parts List
KI-00156E-04-13
* Insulate shield with PVC tubing such as
Alpha (p/n PVC10516 16 AWG) or
comparable insulator.
Ensure S2
DIP switches 7 & 8
are OFF
61
