Keyscan Inc. – Technical Guide (PC109x - 04.15)

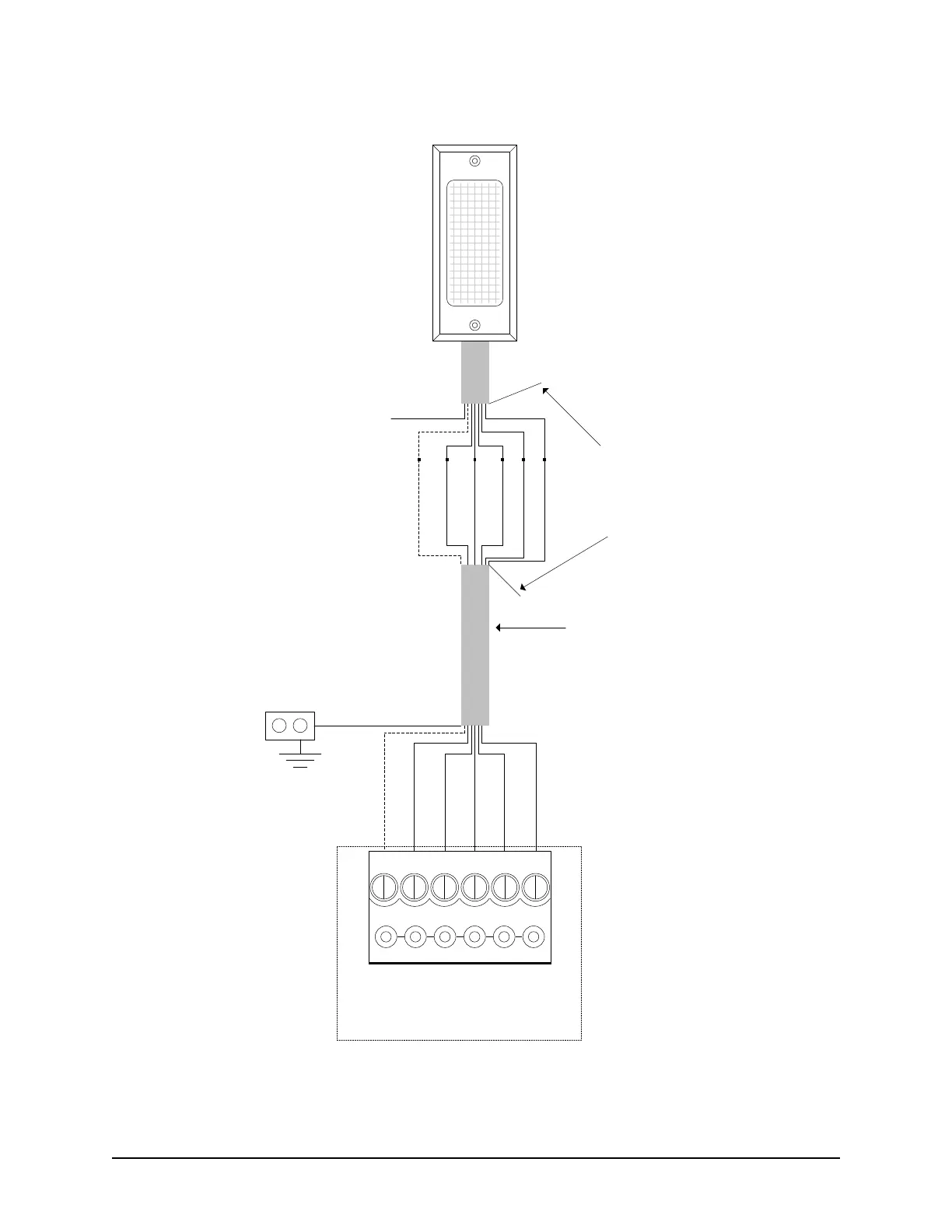

Figure 61 – Keyscan K-VAN Proximity Reader (125 kHz)

LED (Brown)

D1 (White)

D0 (Green)

PWR (Red)

GND (Black)

Shield not

connected at

reader.

Isolate with

electrical tape.

Shield

ACU

Ground

Lug

D1 (White)

GND (Black)

LED (Brown)

PWR (Red)

D0 (Green)

Pre-alert (Blue)

6 conductors - shielded 22 AWG

Maximum - 500 feet (152.4 m)

Orange wire

not used.

Isolate & tape

back.

Orange

Reader terminal on control board

LED D1

WHT

GRN

PWR

RED

GND

BLK

(BEEP)

Blue used for pre-alert otherwise

isolate and tape back.

If connecting external sound device,

see Pre-Alert Relay Option or refer to

ACU cut sheet enclosed with panel

for ACU/OCB8 relay assignments.

KI-00198E-07-13

Default Chapter4
- Table of Contents4
List of Figures7
List of Tables10
Foreword11
- Approved Standards11
- Product Listings11
- About this Guide11
Installation Requirements12
- Power12
- Electrical Precautions12
- Tools12
- Cables13
- Grounding13
- Table 1 - Cable Requirements13
- Figure 1 - Grounding Access Control Units and Cables with Cims14
Mount the Enclosure & Components15
- UL STD 294, CSA STD C22.2 (No. 205), CE, FCC 15 Subpart B15
- Mounting the Metal Enclosure16
- Figure 2 - Mounting the Metal Enclosure16
- Figure 3 - Enclosure Knockout & Mounting Hole Locations/Dimensions17
- Mounting the Pc109X Control Board to Metal Standoffs18
- Figure 4 - Mount and Fasten Pc109X Control Board to 3/8" Male/Female Standoffs19
- Mounting Power Supplies20
- Table 2 - Battery Duration Times20
- Figure 5 - Plastic Stand off21
- Figure 6 - Mounting Power Supplies21
- Grounding Communication Cable Shield22
- Control Board - Mounting Locations22
- Figure 7 - CA250 with Board Mounting Positions23
- Figure 8 - CA4500 with Board Mounting Positions23
- Figure 9 - CA8500 with Board Mounting Positions24
- Figure 10 - EC1500 with Board Mounting Positions24
- Connect Enclosure Tamper Switch to TB325
- Figure 11 - EC2500 with Board Mounting Positions25
- Figure 12 - Enclosure Tamper Switch Connected to TB3 Terminal25
- Connect Enclosure Ground Strap26
- Figure 13 - Enclosure Ground Strap Connection26
- Figure 14 - Securing the Enclosure Cover26
Typical Door Layout and Hardware27
- Figure 15 - Typical Door Layout27
Terminate Wiring at the ACU31
- OCB-8 Relay Board31
- Terminate Lock Wiring31
- Table 3 - OCB-8 Specifications31
- Figure 20 - Lock State - Fail Safe Device33
- Figure 21 - Lock State - Fail Secure Device33
- Figure 22 - Terminate Lock Wiring CA250B34
- Figure 23 - Terminate Lock Wiring CA4500B35
- Figure 24 - Terminate Lock Wiring CA8500B36
- Terminate Input Wiring37
- Figure 25 - Terminate Input Wiring - Door Inputs (Contacts)38
- Figure 26 - Terminate Input Wiring - RTE Push Button39
- Figure 27 - Terminate Input Wiring - RTE PIR Motion Sensor40
- Figure 28 - Terminate Input Wiring RTE - PIR & Push Button41
- Figure 29 - Terminate Input Wiring - AI/SI Inputs42
- Terminate Elevator Floor Wiring43
- Table 4 - OCB-8 to EC1500B Ribbon Cable Connections43
- Table 5 - OCB-8 to EC2500B Ribbon Cable Connections43
- Figure 30 - Terminate Floor Wiring EC1500B44
- Figure 31 - Terminate Floor Wiring EC2500B45
- Figure 32 - Terminate Floor Input Wiring EC1500B46
- Terminate Reader Wiring at ACU47
- Figure 33 - Terminate Floor Input Wiring EC2500B47
- Figure 34 - Terminate Reader Wiring48
- Terminate Auxiliary Outputs with Hardware/Alarms49
- Figure 35 - Terminate Auxiliary Outputs CA250B49
- Figure 36 - Terminate Auxiliary Outputs CA4500B50
- Figure 37 - Terminate Auxiliary Output CA8500B51
S2 DIP Switches52
- S2 DIP Switch Functions52
- Figure 38 - S2 DIP Switch Legend52
- S2 Dip Switch Settings54
- Table 6 - S2 DIP Switch Settings54
- Important - Circuit Board Function Revisions56
- Figure 39 - Location of S2 DIP Switches56
S1 - System Reset / S3 - Restore Factory Defaults57
- S1 - System Reset57
- S3 - Restore Factory Defaults (Clear Memory)57
- Figure 40 - S3 Restore Default Settings (Clear Memory) & S1 System Reset Locations58
Single ACU Communication59
- Multiple Building Communication on a WAN59
- Keyscan RS-232 Data Cable59
- Figure 41 - RS-232 Data Cable Connections60
- Figure 42 - Communication - Direct Serial61
- Figure 43 - Single ACU Communication - USB Adaptor62
- Figure 44 - Communication - NETCOM2P or NETCOM6P/ACU63
- Figure 45 - Communication - NETCOM2 or NETCOM664
CIM Communication65
- CIM Conventions65
- Figure 46 - CIM Overview65
- CIM Module Requirements66
- CIM Specifications66
- BPS/CAN Bus Distance Chart67
- Table 7 - CIM Specifications67
- Table 8 - BPS/CANBUS Distance Chart67
- CIM Jumper Settings68
- Figure 47 - CIM Jumper Locations68
- Table 9 - CIM Global Master Jumper J368
- Table 10 - CIM 0 - Jumper J468
- Table 11 - CIM CAN Bus Termination Jumpers J5 - J869
- Table 12 - CIM Serial Bit Rate Jumpers J9 - J1169
- CIM Installation Guidelines70
- CIM Connection Diagrams70
- Figure 48 - CIM to ACU Connections71
- Figure 49 - CIM to CIM CANBUS Connections72
- Serial Communication73
- Figure 50 - PC Serial Connection with Multiple Cims/Acus73
- Network Communication Via Optional NETCOM2P or NETCOM6P (Encrypted)74
- Figure 51 - Network Connection with Multiple Cims/Acu75
- Network Communication Via Optional NETCOM2 or NETCOM6 (Encrypted)76
- Figure 52 - Network Connection with NETCOM2 or NETCOM6 with Multiple Cims/Acus77
- CIM Diagnostic Leds B3 - B078
- Table 13 - CIM Diagnostic LED Codes78
- Figure 53 - CIM Diagnostic Leds - B3 - B079
Power-Up & Test Voltages80
- Power Supply Specifications80
- DPS-15 Dual Power Supply - Current Calculation80
- Table 14 - ACU Supply - Current Calculation Table81
- Table 15 - AUX RDR Supply - Current Calculation Table81
- System Power-Up82
- Figure 54 - Power Supply Wiring83
- Control Board Voltage Test Points84
- Table 16 - Control Board Test Points - Voltages84
- Figure 55 - Control Board Test Points - Voltages85
- Test Points - Communication Terminals86
- Figure 56 - Control Board Communication Test Points86
- Table 17 - Communication Voltage Test Points86
Communication Diagnostics87
- Communication Status Leds87
- Table 18 - Communication Status Leds87
- System Status LED89
- Figure 57 - Communication Leds - CA & EC Control Boards89
- Table 19 - System Status LED89
- Card Diagnostics - LED Wiegand Bit Counters90
- Figure 58 - Location of System Status LED90
- Figure 59 - Location of Wiegand Bit Counter Leds90
Appendix A - Keyscan & HID Readers91
- Power Specifications91
- Table 20 - Keyscan & HID Reader Power Specifications91
- Figure 60 - Keyscan K-PROX2 (125 Khz)94
- Figure 61 - Keyscan K-VAN Proximity Reader (125 Khz)95
- Figure 62 - Keyscan K-KPR Keypad / Proximity Reader (125 Khz)96
- Figure 63 - Keyscan K-SMART Reader97
- Figure 64 - HID-5395 Wiring98
- Figure 65 - HID 5365 / 6005 Wiring99
- Figure 66 - HID 5355 Wiring100
- Figure 67 - HID 5375 Wiring101
- Figure 68 - HID 5355KP Wiring102
- Figure 69 - HID Iclass KEYR10103
- Figure 70 - HID Iclass KEYR40104
- Figure 71 - HID Iclass KEYRW400105
- Figure 72 - HID Iclass KEYRK40106
- Figure 73 - HID Iclass R90 Long Range Reader107
- Figure 74 - HID Iclass R10 Series108
- Figure 75 - HID Iclass R15 Series109
- Figure 76 - HID Iclass R40 Series110
- Figure 77 - HID Iclass RK40 Series111
Appendix B - Indala Readers112
- Power Specifications112
- Table 21 - Indala Reader Power Specifications112
- Figure 78 - Indala PX 603 and PX 605 Wiring113
- Figure 79 - Indala PX610 Wiring114
- Figure 80 - Indala PX 620 Wiring115
- Figure 81 - Indala PXK 501 Wiring116
Appendix C - WSSKP-1 Keypad117
- Table 22 - Keypad Power Specifications117
- Figure 82 - WSSKP-1 Keypad Connection118
- Figure 83 - WSSKP-1 Keypad/Reader Combination Connections119
Appendix D - WIEEX2120
- Table 23 - WIEEX2120
- Table 24 - WIEEX2 Power Requirements120
- Table 25 - WIEEX2 Cables and Distances120
- Figure 84 - Wiegand Extender Overview122
- Figure 85 - WIEEX2 RS485 Connections - (Firmware 6.00 or Higher)123
- Figure 86 - WIEEX2 to OCB-8 Cable Connection124
Appendix E - Accessibility HC Relay125
- Accessibility HC Output Relays125
- Table 26 - Accessibility HC Relay/ Door Assignment125
- Figure 87 - Accessibility HC Output Relay CA250B/OCB-8 Connections126
- Figure 88 - Accessibility HC Output Relay CA4500B/OCB-8 Connections127
- Figure 89 - Accessibility HC Output Relay CA8500B/OCB-8 Connections128
Appendix F - Pre-Alert Relay129
- Pre-Alert129
- Table 27 - Pre-Alert Relay to Door Assignments129
- Figure 90 - Pre-Alert Relay CA250B/OCB-8 Connections130
- Figure 91 - Pre-Alert Relay CA4500B/OCB-8 Connections131
- Figure 92 - Pre-Alert Relay CA8500B/OCB-8 Connections132
Appendix G - Global Output Relay133
- OCB-8/Global IO Assignments133
- Table 28 - OCB-8 Global Output Relay #/ Client Relay Assignments133
- Figure 93 - Global OCB-8 Ribbon Cable Connection with CA4500 & CA8500134
Current Ratings135
- Table 29 - Circuit Board Current Ratings135
Relay States136
- Table 30 - List of Relay States136
Warranty138
Index139
