Keyscan CA250B User Manual

Keyscan Inc. – Technical Guide (PC109x - 04.15)
119

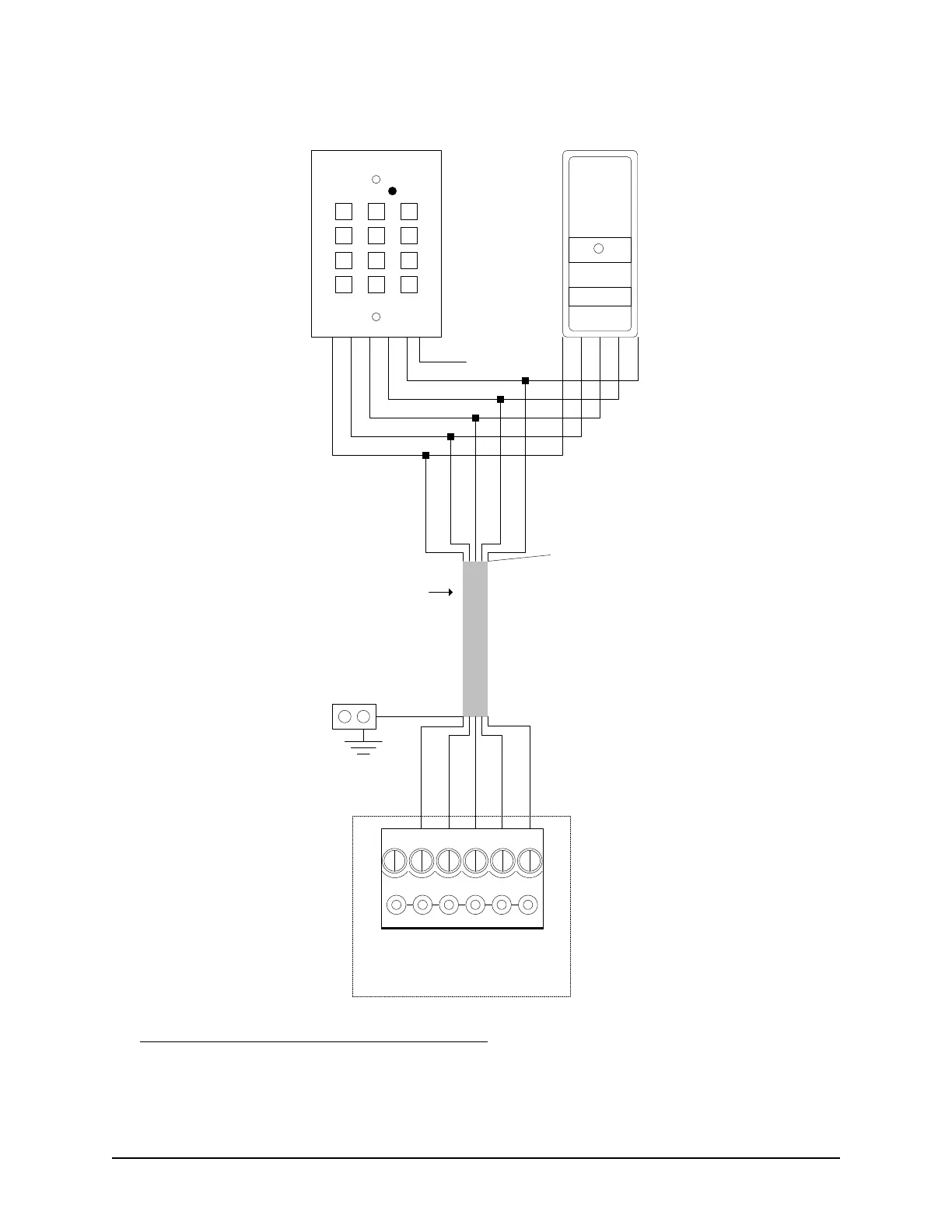

Figure 83 – WSSKP-1 Keypad/Reader Combination Connections
Diagram Notes on WSSKP-1/Reader Combination
The above diagram generally applies to a retro-fit where either a reader or keypad is already installed.
Consider Keyscan’s K-KPR if a reader/keypad combination is required for a new installation.
Brown White Green Red Black
Shield not
connected.
Isolate with
electrical tape.
Shield
ACU Ground
Lug
Brown White Green Red Black
6 conductors shielded 18 AWG
500 ft (152.4 m) maximum
Brown Brown White White Green Blue Red Green Black Black
Keypad
Reader
Orange
to third party
device or
tape back
KEYSCAN
1
4
7
*
2
5
8
0
3
6
9
#
Reader terminal on control board
LED D1
WHT
D0
GRN
PWR
RED
GND
BLK
C1
(BEEP)
KI-00215E-07-11
