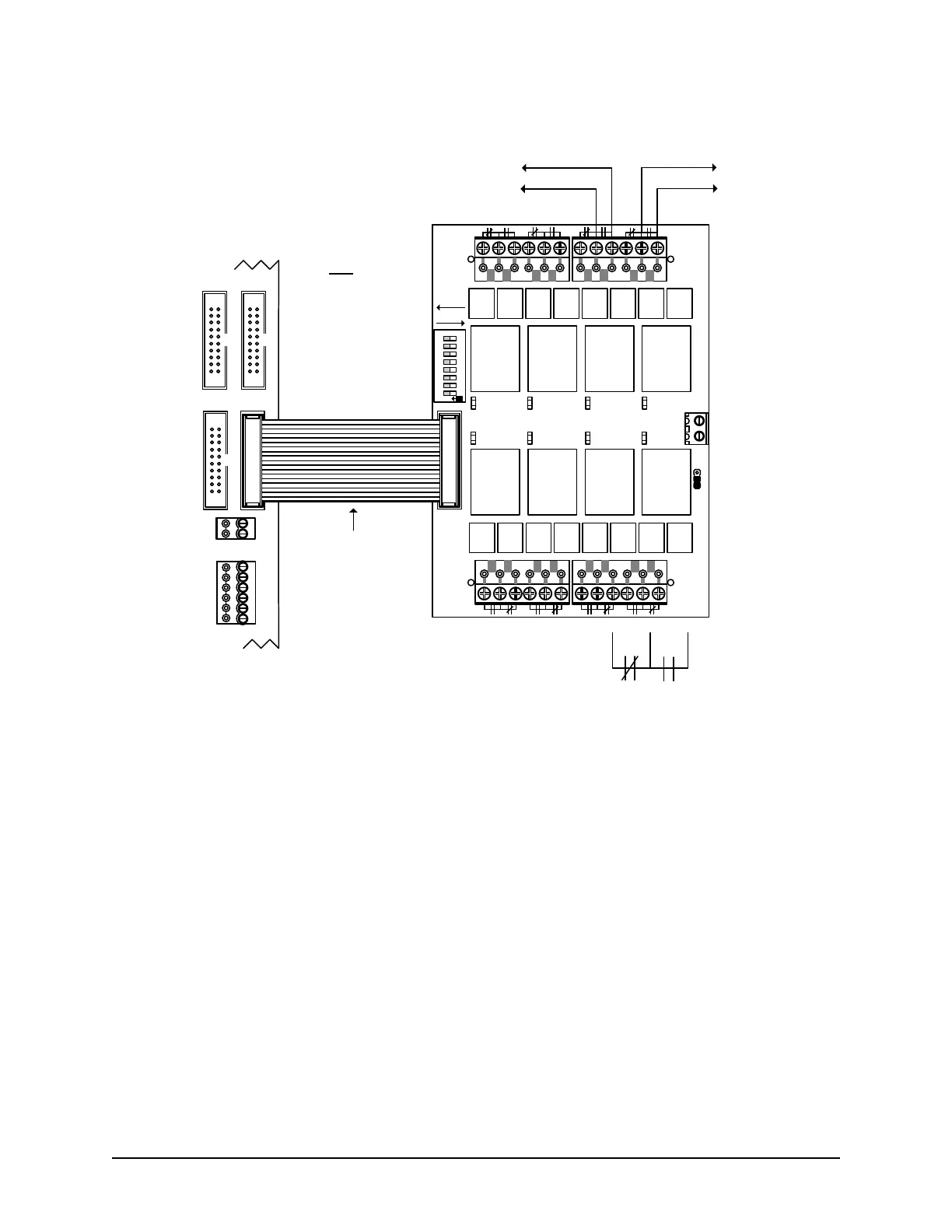

Figure 36 – Terminate Auxiliary Outputs CA4500B
CA4500B
Control
Board
Cut View
OCB-8 ribbon cable
connects to CONTROL 1.
red stripe
OCB-8
alarm panel input
or
CCTV input
time zone
lock/unlock
CONTROL
2
RS-232 (COM4)
CTS
CONTROL
5
DTR
DCD
RD
TD
GND
OCB-8 powered
through ribbon
cable with J1
Relay Power set
on ACU.
TAMPER TB3
SWITCH
+
-
KI-00140E-10-14
CONTROL
4
S1
TB1
J1
OUTPUT
CONTROL
BOARD
K1
K2
K3 K4
K5K6K7K8
LE D ON =
RELA Y
ENERGIZED
O
N
1 2 3 4 5 6 7 8
ACU
EXT
12V
GND
H1
TB2
TB3
TB4
OCB8
PC1102
RELAY
REV.
NORMAL
KEYSCAN
INC.
Door
Output
1
(DIP
Switch 1)
Door
Output
2
(DIP
Switch 2)
Door
Output
3
(DIP
Switch 3)
Door
Output
4
(DIP
Switch 4)
Aux
Output
1
(DIP
Switch 5)
Aux
Output
2
(DIP
Switch 6)
Aux
Output
3
(DIP
Switch 7)
Aux
Output
4
(DIP
Switch 8)
Relay
Power
Normally
Closed
N.C.
Normally
Open
N.O.
OCB-8
Relays
Note
DIP switches set
relays for normal or
reverse, as
indicated by the
arrows.
