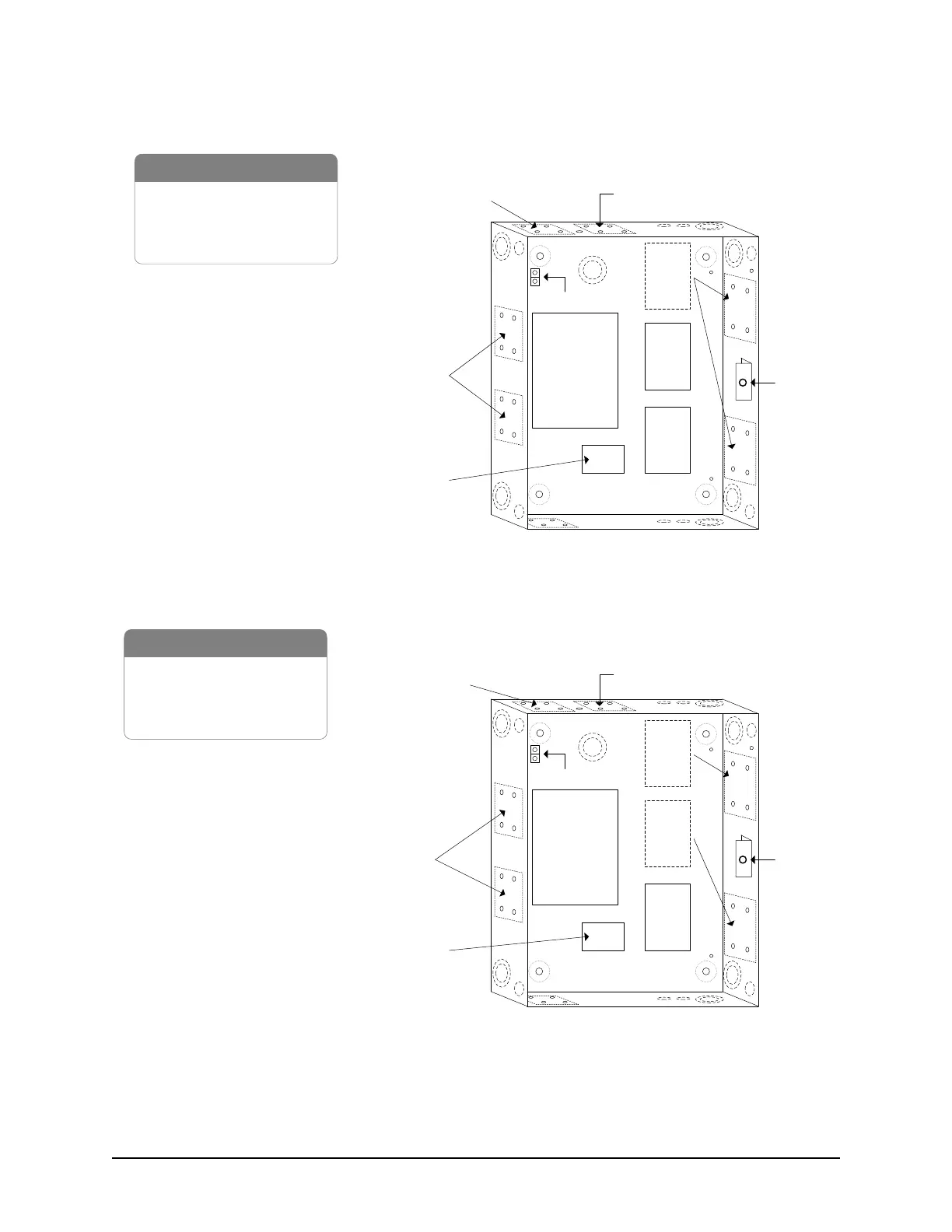

Figure 9 – CA8500 with Board Mounting Positions

Figure 10 – EC1500 with Board Mounting Positions

Front View

Cover not shown

Tamper

Switch

1 x CA8500B control board

2 x OCB-8

1 x DPS-15 power supply

1 x metal enclosure

CA8500B

Control

Board

OCB-8

Optional

OCB-8

Locations

Ground Lug

OCB-8

NETCOM

PC109x

Parts

DPS-15

power supply

KI-00113E-09-12

Optional

NETCOM*

Locations

* NETCOM - use terminal block

connections only, not 9-pin male

connector. (NETCOM refers to

NETCOM2 & NETCOM6)

CIM

NETCOM

Front View

Cover not shown

Tamper

Switch

1 x EC1500B control board

1 x OCB-8

1 x DPS-15 power supply

1 x metal enclosure

EC1500B

Control

Board

OCB-8

Optional

OCB-8

Locations

Ground Lug

Optional

OCB-8

Locations

NETCOM

Optional

NETCOM*

Locations

PC109x

Parts

DPS-15

power supply

KI-00114E-09-12

* NETCOM - use terminal block

connections only, not 9-pin male

connector. (NETCOM refers to

NETCOM2 & NETCOM6)

CIM
