Keyscan Inc.
–
Technica
l Guide (PC109x - 07.15
)
102

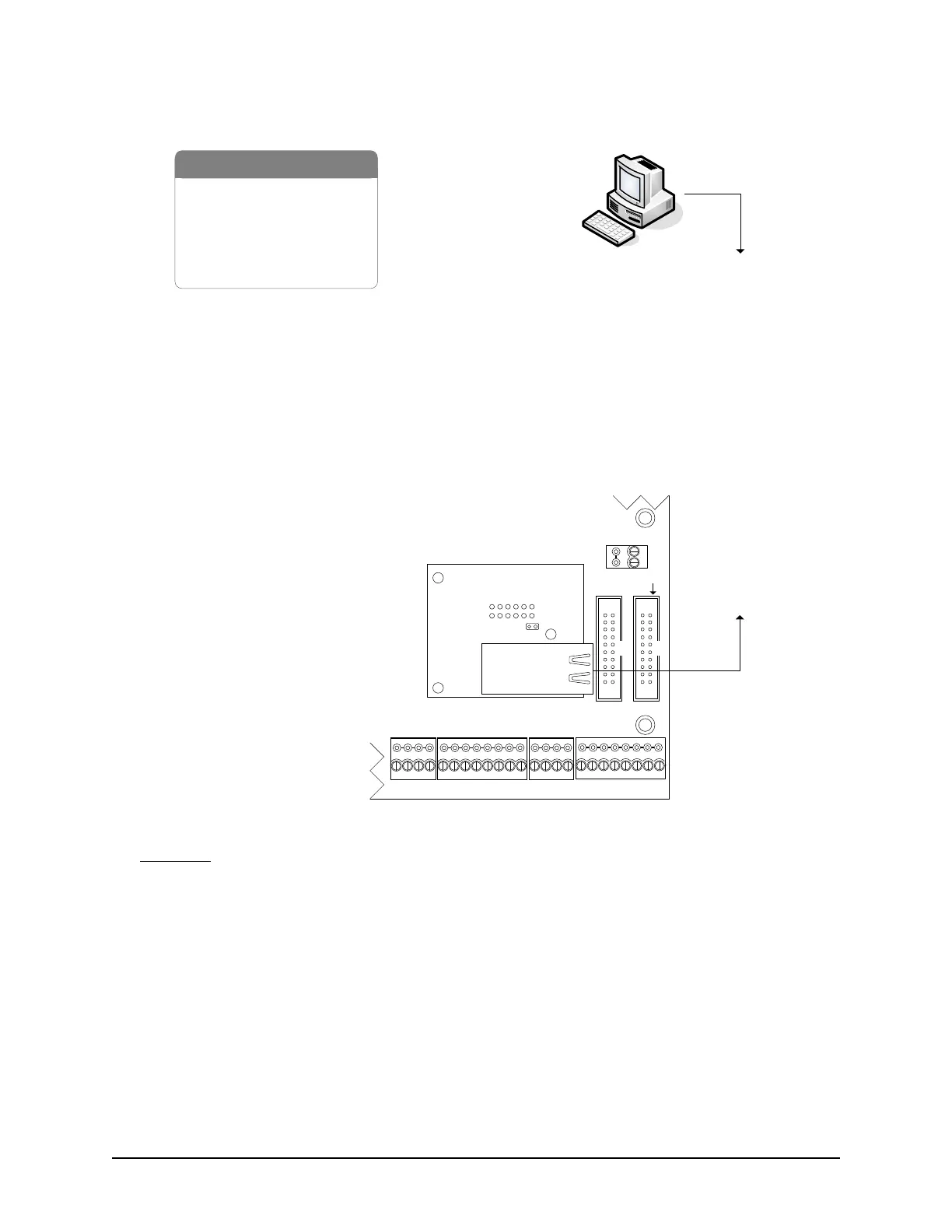

Figure
75
- Communication - NETC
OM2P or NETCOM6P/ACU
Important
NETCOM2P or NETCOM6P plu
gged directly into the contro
l board only supports a sing
le panel
communication loop.
After installing and connecting the
NETCOMP, attach and
secure the control board
’s
prot
ective cover
before applying power.
- PC
- 10/100 Base-T Cable
- Control Board
- NETCOM2P or NETCOM6P
to network
Host PC with
Communication Manager
Parts List
to network
10 or 100
Base-T
Current Draw
ACU + NETCOMP = 270 mA
RJ45
Terminal
Jack
NETCOMP
RESET
Control Board
(PC 109x)
Cut view with
ACU protective
cover removed.
Common
AUX Inputs - E
CPB/CB MODULE
(COM4)
AUX Inputs - D
Common
IOCB (COM1)
NETCOMP plugs into M1 on
control board.
RX
TX
KI-00161E-04-13
Ensure S2
DIP switch 7 = ON
DIP switch 8 = OFF
101
103
Table of Contents
Default Chapter
4
Table of Contents
4
List of Figures
7
List of Tables
10
Foreword
11
Approved Standards
11
Product Certification
11
Electrical Precautions
11
Tools
11
Cable Specifications
12
Grounding
12
Table 1 - Cable Specificationss
12
Figure 1 - Grounding Access Control Units and Cables with Cims
14
Mount the Enclosure & Circuit Boards
15
UL STD 294, CSA STD C22.2 (No. 205), CE, FCC 15 Subpart B
15
Mounting the Metal Enclosure
16
Figure 2 - Mounting the Metal Enclosure
16
Figure 3 - Enclosure Knockout & Mounting Hole Locations/Dimensions
17
Mounting the Pc109X Control Board to Metal Standoffs
18
Figure 4 - Mount and Fasten Pc109X Control Board to 3/8" Male/Female Standoffs
19
Mounting the DPS-15 Power Supply
20
Table 2 - Battery Duration Times
20
Figure 5 - Plastic Stand off
21
Figure 6 - Mounting Power Supplies
21
Control Board - Mounting Locations
22
Figure 7 - CA250 with Board Mounting Positions
22
Figure 8 - CA4500 with Board Mounting Positions
23
Figure 9 - CA8500 with Board Mounting Positions
23
Figure 10 - EC1500 with Board Mounting Positions
24
Figure 11 - EC2500 with Board Mounting Positions
24
Connect Enclosure Tamper Switch to TB3
25
Connect Enclosure Ground Strap
25
Figure 12 - Enclosure Tamper Switch Connected to TB3 Terminal
25
Figure 13 - Enclosure Ground Strap Connection
25
Figure 14 - Securing the Enclosure Cover
26
Typical Door Layout and Hardware
27
Figure 15 - Typical Door Layout
27
Door Lock Hardware
28
Figure 16 - Typical Door Strike Connection
28
Figure 17 - Typical Magnetic Lock Connection
28
Door Contacts, Exit Buttons, Auxiliary Inputs
29
Figure 18 - Door Contacts, Exit Buttons, Pirs, & Auxiliary Inputs
29
Readers
30
Figure 19 - Typical Door Reader Connection
30
OCB-8 Relay Board
31
Figure 20 - OCB-8 Relay Board PC1102
31
Table 3 - OCB-8 Specifications
31
OCB-8 Relays - Normal and Reversed
32
Table 4 - List of Relay States
32
Terminating Cables at Door Control Units
34
Outputs
34
Terminate Lock Wiring at the OCB-8
34
Table 5 - Door Lock Relay Assignments & Ribbon Cable Connections
35
Figure 21 - Lock State - Fail Safe Device
36
Figure 22 - Lock State - Fail Secure Device
37
Figure 23 - Terminate Lock Wiring CA250B
38
Figure 24 - Terminate Lock Wiring CA4500B
39
Figure 25 - Terminate Lock Wiring CA8500B
40
Terminate Auxiliary Outputs with Hardware/Alarms
41
Table 6 - Auxiliary Output Relay Assignments & Ribbon Cable Connections
41
Figure 26 - Terminate Auxiliary Outputs CA250B
42
Figure 27 - Terminate Auxiliary Outputs CA4500B
43
Figure 28 - Terminate Auxiliary Output CA8500B
44
HC Accessibility Relay
45
Table 7 - HC Accessibility Output/Door Assignment
45
Figure 29 - HC Accessibility Relay CA250B/OCB-8 Connections
46
Figure 30 - HC Accessibility Output Relay CA4500B/OCB-8 Connections
47
Figure 31 - HC Accessibility Output Relay CA8500B/OCB-8 Connections
48
Pre-Alert Output Relay
49
Table 8 - Pre-Alert Relay to Door Assignments
49
Figure 32 - Pre-Alert Relay CA250B/OCB-8 Connections
50
Figure 33 - Pre-Alert Relay CA4500B/OCB-8 Connections
51
Figure 34 - Pre-Alert Relay CA8500B/OCB-8 Connections
52
Global Output Relay
53
Table 9 - OCB-8 Global Output Relay #/ Client Relay Assignments
53
Figure 35 - Global OCB-8 Ribbon Cable Connection with CA4500 & CA8500
54
Terminate Input Wiring
55
Figure 36 - Terminate Input Wiring - Door Inputs (Contacts)
55
Figure 37 - Terminate Input Wiring - RTE Push Button
56
Figure 38 - Terminate Input Wiring - RTE PIR Motion Sensor
57
Figure 39 - Terminate Input Wiring RTE - PIR & Push Button
58
Figure 40 - Terminate Input Wiring - AI/SI Inputs
59
Terminating Cables at Elevator Control Units
60
Figure 41 - Elevator Control Overview
60
Figure 42 - Elevator Layout - Interior of Car
60
OCB-8 Relay Boards
61
Table 10 - OCB-8 to EC1500B Ribbon Cable Connections
61
Table 11 - OCB-8 to EC2500B Ribbon Cable Connections
61
Figure 43 - Terminate Floor Wiring EC1500B
62
Figure 44 - Terminate Floor Wiring EC2500B
63
Figure 45 - Terminate Floor Input Wiring EC1500B
64
Figure 46 - Terminate Floor Input Wiring EC2500B
64
Terminate Reader Cables
65
Keyscan & HID Readers
65
Table 12 - Keyscan & HID Reader Power Specifications
65
Figure 47 - Keyscan K-PROX2 (125 Khz)
68
Figure 48 - Keyscan K-VAN Proximity Reader (125 Khz)
69
Figure 49 - Keyscan K-KPR Keypad / Proximity Reader (125 Khz)
70
Figure 50 - Keyscan K-SMART Reader
71
Figure 51 - HID-5395 Wiring
72
Figure 52 - HID 5365 / 6005 Wiring
73
Figure 53 - HID 5355 Wiring
74
Figure 54 - HID 5375 Wiring
75
Figure 55 - HID 5355KP Wiring
76
Figure 56 - HID Iclass KEYR10
77
Figure 57 - HID Iclass KEYR40
78
Figure 58 - HID Iclass KEYRW400
79
Figure 59 - HID Iclass KEYRK40
80
Figure 60 - HID Iclass R90 Long Range Reader
81
Figure 61 - HID Iclass R10 Series
82
Figure 62 - HID Iclass R15 Series
83
Figure 63 - HID Iclass R40 Series
84
Figure 64 - HID Iclass RK40 Series
85
Indala Readers
86
Table 13 - Indala Reader Power Specifications
86
Figure 65 - Indala PX 603 and PX 605 Wiring
87
Figure 66 - Indala PX610 Wiring
88
Figure 67 - Indala PX 620 Wiring
89
Figure 68 - Indala PXK 501 Wiring
90
S2 DIP Switches
91
S2 DIP Switch Functions
91
Figure 69 - S2 DIP Switch Legend
91
S2 DIP Switch Settings
93
Table 14 - S2 DIP Switch Settings
93
Figure 70 - Location of S2 DIP Switches
94
Important - Circuit Board Function Revisions
95
S1 - System Reset / S3 - Restore Factory Defaults
96
S1 - System Reset
96
S3 - Restore Factory Defaults (Clear Memory)
96
Figure 71 - S3 Restore Default Settings (Clear Memory) & S1 System Reset Locations
97
Single ACU Communication
98
Multiple Building Communication on a WAN
98
Keyscan RS-232 Data Cable
98
Figure 72 - RS-232 Data Cable Connections
99
Figure 73 - Communication - Direct Serial
100
Figure 74 - Single ACU Communication - USB Adaptor
101
Figure 75 - Communication - NETCOM2P or NETCOM6P/ACU
102
Figure 76 - Communication - NETCOM2 Rev.b/Acu
103
CIM Communication
104
Figure 77 - CIM Overview
104
CIM Conventions
105
CIM Module Requirements
105
CIM Specifications
105
BPS/CAN Bus Distance Chart
106
Table 15 - CIM Specifications
106
Table 16 - BPS/CANBUS Distance Chart
106
CIM Jumper Settings
107
Figure 78 - CIM Jumper Locations
107
Table 17 - CIM Global Master Jumper J3
107
Table 18 - CIM 0 - Jumper J4
108
Table 19 - CIM CAN Bus Termination Jumpers J5 - J8
108
CIM Installation Guidelines
109
Table 20 - CIM Serial Bit Rate Jumpers J9 - J11
109
CIM Connection Diagrams
110
Figure 79 - CIM to ACU Connections
111
Figure 80 - CIM to CIM CANBUS Connections
112
Serial Communication
113
Figure 81 - PC Serial Connection - Cims/Acus
113
Network Communication Via Optional NETCOM2P or NETCOM6P (Encrypted)
114
Figure 82 - Network Connection with NETCOM2P or 6P - Cims/Acus
115
Network Communication Via Optional NETCOM2 Rev. B
116
Figure 83 - Network Connection with NETCOM2 Rev. B - Cims/Acus
117
CIM Diagnostic Leds B3 - B0
118
Table 21 - CIM Diagnostic LED Codes
118
Figure 84 - CIM Diagnostic Leds - B3 - B0
119
DPS-15 Power Supply Connections
120
Power Supply Specifications
120
Keyscan Circuit Board Current Ratings
120
DPS-15 Dual Power Supply - Current Calculation
121
Table 22 - Keyscan Circuit Board Current Ratings
121
Table 23 - ACU Supply - Current Calculation Table
122
Table 24 - AUX RDR Supply - Current Calculation Table
122
System Power-Up
123
Figure 85 - DPS-15 Power Supply Connections
124
Test Voltages
125
Control Board Voltage Test Points
125
Table 25 - Control Board Test Points - Voltages
125
Figure 86 - Control Board Test Points - Voltages
126
Test Points - Communication Terminals
127
Figure 87 - Control Board Communication Test Points
127
Table 26 - Communication Voltage Test Points
127
Communication Diagnostics
128
Communication Status Leds
128
Table 27 - Communication Status Leds
128
System Status LED
130
Figure 88 - Communication Leds - CA & EC Control Boards
130
Table 28 - System Status LED
130
Card Diagnostics - LED Wiegand Bit Counters
131
Figure 89 - Location of System Status LED
131
Figure 90 - Location of Wiegand Bit Counter Leds
131
Appendix A - WSSKP-1 Keypad
132
Table 29 - Keypad Power Specifications
132
Figure 91 - WSSKP-1 Keypad Connection
133
Figure 92 - WSSKP-1 Keypad/Reader Combination Connections
134
Appendix B - WIEEX2
135
Table 30 - WIEEX2
135
Table 31 - WIEEX2 Power Requirements
135
Table 32 - WIEEX2 Cables and Distances
135
Figure 93 - Wiegand Extender Overview
137
Figure 94 - WIEEX2 RS485 Connections - (Firmware 6.00 or Higher)
138
Figure 95 - WIEEX2 to OCB-8 Cable Connection
139
Warranty
140
Index
141
Other manuals for Keyscan CA4500B
Technical Instructions
140 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Keyscan CA4500B and is the answer not in the manual?
Ask a question
Keyscan CA4500B Specifications
General
Brand
Keyscan
Model
CA4500B
Category
Control Unit
Language
English
Related product manuals
Keyscan CA150
113 pages
Keyscan CA8500B
142 pages
Keyscan CA250 Series
200 pages
Keyscan CA8500 Series
200 pages
Keyscan CA8500B/OCB-8
142 pages
Keyscan EC2500 Series
200 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
