Keyscan Inc.
–
Technica
l Guide (PC109x - 07.15
)
126
Figure
86
–

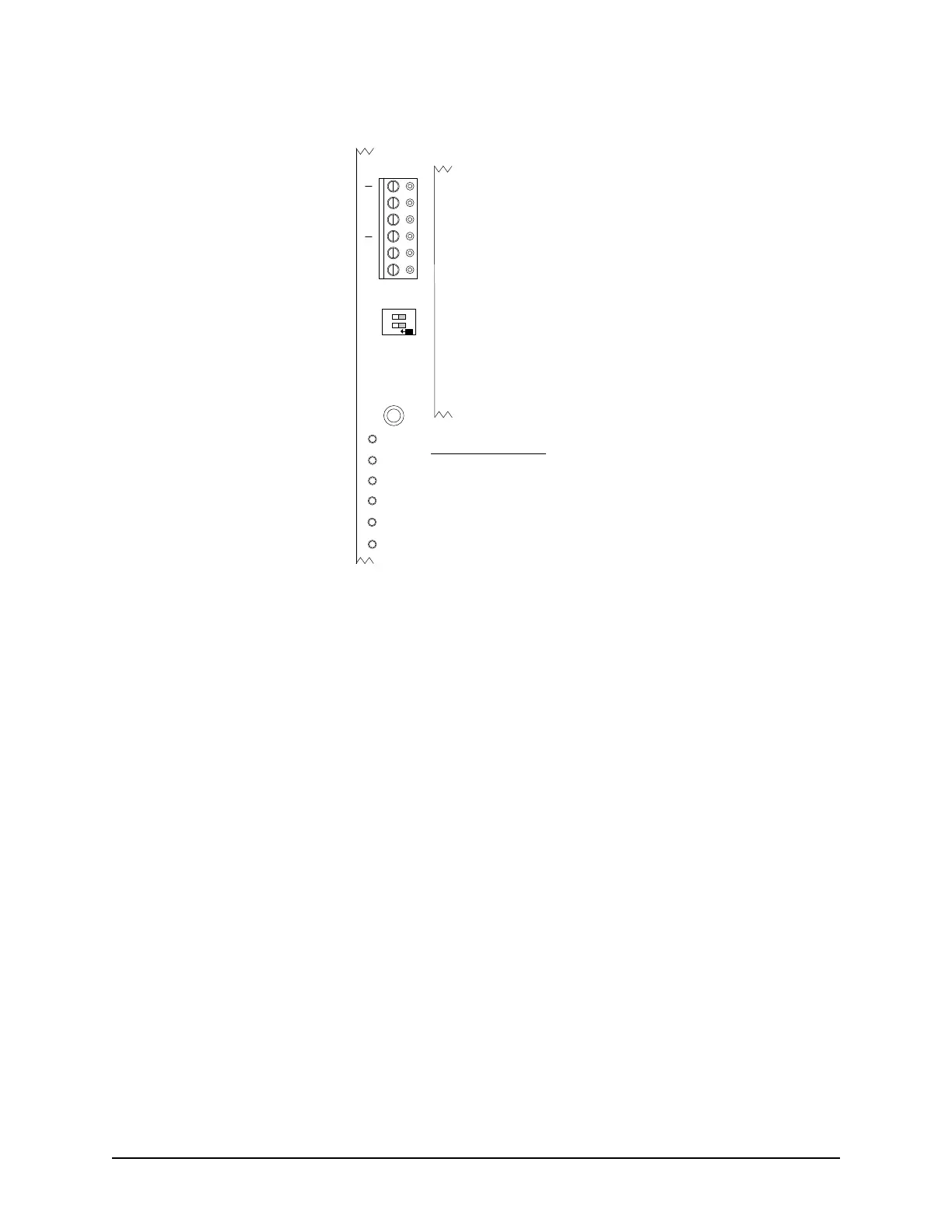

Control Board Test Points
–
Voltages
READER PWR
ACU PWR
+
FAIL
+
FAIL
TP1
TP2
TP3
TP4
TP5
Cut View
PC109x
Control Board
ACU
Protective
Cover
Test Point Voltages
TP1: +12V Reader
TP2: +12V ACU
TP3: +12V ACU Fused
TP4: +5V
TP5: +3.3V
