Keyscan Inc.
–
Technica
l Guide (PC109x - 07.15
)
139

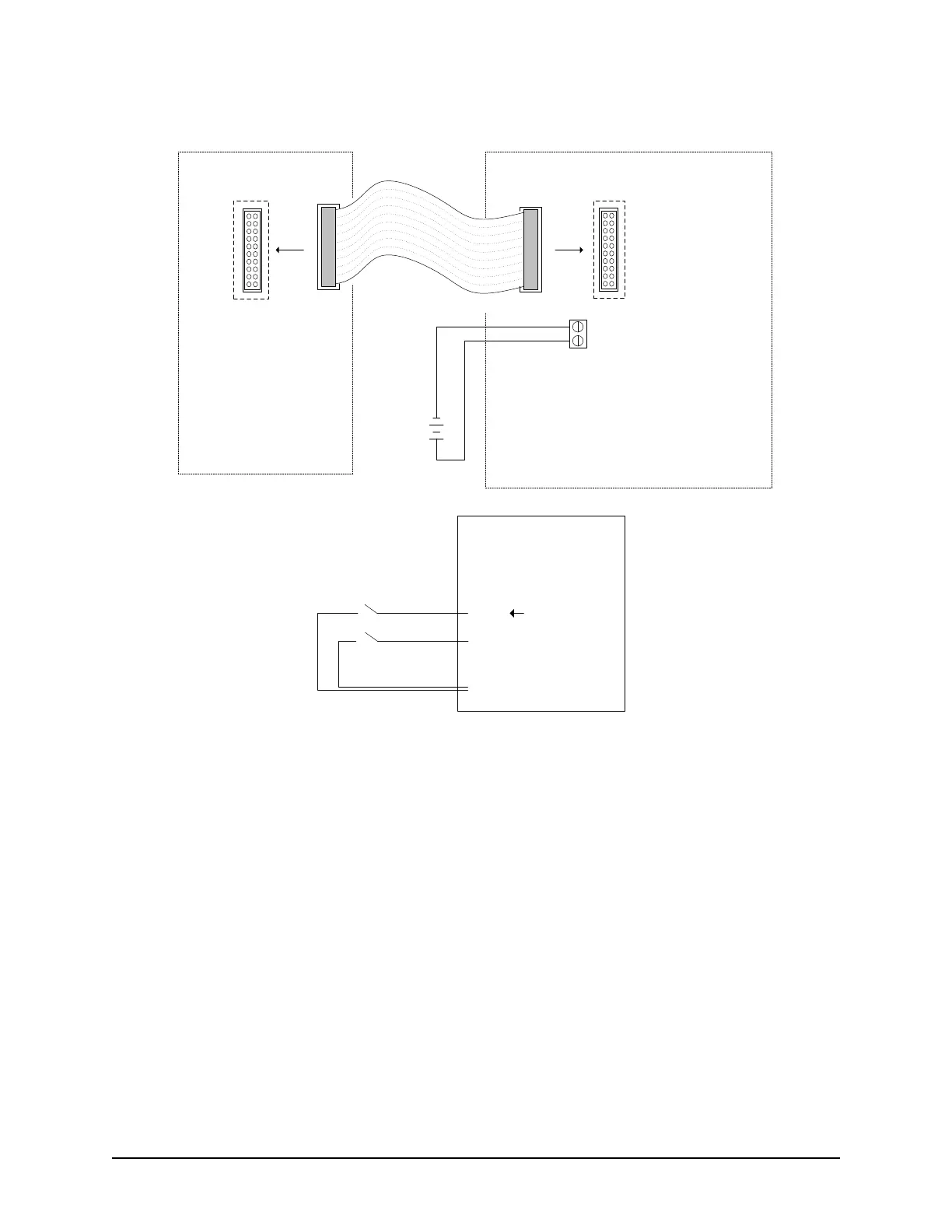

Figure
95
–
WIEEX2 to OCB-8
Cable Connection
H1
WIEEX-Tx
Transmitter
H1
OCB-8
Cable connects to
WIEEX transmitter.
-
12V
+
+
-
12VDC
Power
Supply
WIEEX-Rx
Receiver
RB5
RB4
Connect to GND
RB4/RB5 with
switch to change
OCB-8 relay 2/3
connected on
WIEEX-Tx
GND
OCB-8
Relay 1
–
Follows LED/BRN (used for P3
signalling 3
rd
party devices*
Relay 2
–
Follows RB4 (Door Output Relay)
Relay 3
–
Follows RB5 input state on Rx receiver
Relay 4 to 8
–
Not Used (set jumpers to reversed
state)
* Note on Relay 1
–
To
eliminate relay chatter,
remove jumper.
KI-00226E-07-11
138
140
Table of Contents
Default Chapter
4
Table of Contents
4
List of Figures
7
List of Tables
10
Foreword
11
Approved Standards
11
Product Certification
11
Electrical Precautions
11
Tools
11
Cable Specifications
12
Grounding
12
Table 1 - Cable Specificationss
12
Figure 1 - Grounding Access Control Units and Cables with Cims
14
Mount the Enclosure & Circuit Boards
15
UL STD 294, CSA STD C22.2 (No. 205), CE, FCC 15 Subpart B
15
Mounting the Metal Enclosure
16
Figure 2 - Mounting the Metal Enclosure
16
Figure 3 - Enclosure Knockout & Mounting Hole Locations/Dimensions
17
Mounting the Pc109X Control Board to Metal Standoffs
18
Figure 4 - Mount and Fasten Pc109X Control Board to 3/8" Male/Female Standoffs
19
Mounting the DPS-15 Power Supply
20
Table 2 - Battery Duration Times
20
Figure 5 - Plastic Stand off
21
Figure 6 - Mounting Power Supplies
21
Control Board - Mounting Locations
22
Figure 7 - CA250 with Board Mounting Positions
22
Figure 8 - CA4500 with Board Mounting Positions
23
Figure 9 - CA8500 with Board Mounting Positions
23
Figure 10 - EC1500 with Board Mounting Positions
24
Figure 11 - EC2500 with Board Mounting Positions
24
Connect Enclosure Tamper Switch to TB3
25
Connect Enclosure Ground Strap
25
Figure 12 - Enclosure Tamper Switch Connected to TB3 Terminal
25
Figure 13 - Enclosure Ground Strap Connection
25
Figure 14 - Securing the Enclosure Cover
26
Typical Door Layout and Hardware
27
Figure 15 - Typical Door Layout
27
Door Lock Hardware
28
Figure 16 - Typical Door Strike Connection
28
Figure 17 - Typical Magnetic Lock Connection
28
Door Contacts, Exit Buttons, Auxiliary Inputs
29
Figure 18 - Door Contacts, Exit Buttons, Pirs, & Auxiliary Inputs
29
Readers
30
Figure 19 - Typical Door Reader Connection
30
OCB-8 Relay Board
31
Figure 20 - OCB-8 Relay Board PC1102
31
Table 3 - OCB-8 Specifications
31
OCB-8 Relays - Normal and Reversed
32
Table 4 - List of Relay States
32
Terminating Cables at Door Control Units
34
Outputs
34
Terminate Lock Wiring at the OCB-8
34
Table 5 - Door Lock Relay Assignments & Ribbon Cable Connections
35
Figure 21 - Lock State - Fail Safe Device
36
Figure 22 - Lock State - Fail Secure Device
37
Figure 23 - Terminate Lock Wiring CA250B
38
Figure 24 - Terminate Lock Wiring CA4500B
39
Figure 25 - Terminate Lock Wiring CA8500B
40
Terminate Auxiliary Outputs with Hardware/Alarms
41
Table 6 - Auxiliary Output Relay Assignments & Ribbon Cable Connections
41
Figure 26 - Terminate Auxiliary Outputs CA250B
42
Figure 27 - Terminate Auxiliary Outputs CA4500B
43
Figure 28 - Terminate Auxiliary Output CA8500B
44
HC Accessibility Relay
45
Table 7 - HC Accessibility Output/Door Assignment
45
Figure 29 - HC Accessibility Relay CA250B/OCB-8 Connections
46
Figure 30 - HC Accessibility Output Relay CA4500B/OCB-8 Connections
47
Figure 31 - HC Accessibility Output Relay CA8500B/OCB-8 Connections
48
Pre-Alert Output Relay
49
Table 8 - Pre-Alert Relay to Door Assignments
49
Figure 32 - Pre-Alert Relay CA250B/OCB-8 Connections
50
Figure 33 - Pre-Alert Relay CA4500B/OCB-8 Connections
51
Figure 34 - Pre-Alert Relay CA8500B/OCB-8 Connections
52
Global Output Relay
53
Table 9 - OCB-8 Global Output Relay #/ Client Relay Assignments
53
Figure 35 - Global OCB-8 Ribbon Cable Connection with CA4500 & CA8500
54
Terminate Input Wiring
55
Figure 36 - Terminate Input Wiring - Door Inputs (Contacts)
55
Figure 37 - Terminate Input Wiring - RTE Push Button
56
Figure 38 - Terminate Input Wiring - RTE PIR Motion Sensor
57
Figure 39 - Terminate Input Wiring RTE - PIR & Push Button
58
Figure 40 - Terminate Input Wiring - AI/SI Inputs
59
Terminating Cables at Elevator Control Units
60
Figure 41 - Elevator Control Overview
60
Figure 42 - Elevator Layout - Interior of Car
60
OCB-8 Relay Boards
61
Table 10 - OCB-8 to EC1500B Ribbon Cable Connections
61
Table 11 - OCB-8 to EC2500B Ribbon Cable Connections
61
Figure 43 - Terminate Floor Wiring EC1500B
62
Figure 44 - Terminate Floor Wiring EC2500B
63
Figure 45 - Terminate Floor Input Wiring EC1500B
64
Figure 46 - Terminate Floor Input Wiring EC2500B
64
Terminate Reader Cables
65
Keyscan & HID Readers
65
Table 12 - Keyscan & HID Reader Power Specifications
65
Figure 47 - Keyscan K-PROX2 (125 Khz)
68
Figure 48 - Keyscan K-VAN Proximity Reader (125 Khz)
69
Figure 49 - Keyscan K-KPR Keypad / Proximity Reader (125 Khz)
70
Figure 50 - Keyscan K-SMART Reader
71
Figure 51 - HID-5395 Wiring
72
Figure 52 - HID 5365 / 6005 Wiring
73
Figure 53 - HID 5355 Wiring
74
Figure 54 - HID 5375 Wiring
75
Figure 55 - HID 5355KP Wiring
76
Figure 56 - HID Iclass KEYR10
77
Figure 57 - HID Iclass KEYR40
78
Figure 58 - HID Iclass KEYRW400
79
Figure 59 - HID Iclass KEYRK40
80
Figure 60 - HID Iclass R90 Long Range Reader
81
Figure 61 - HID Iclass R10 Series
82
Figure 62 - HID Iclass R15 Series
83
Figure 63 - HID Iclass R40 Series
84
Figure 64 - HID Iclass RK40 Series
85
Indala Readers
86
Table 13 - Indala Reader Power Specifications
86
Figure 65 - Indala PX 603 and PX 605 Wiring
87
Figure 66 - Indala PX610 Wiring
88
Figure 67 - Indala PX 620 Wiring
89
Figure 68 - Indala PXK 501 Wiring
90
S2 DIP Switches
91
S2 DIP Switch Functions
91
Figure 69 - S2 DIP Switch Legend
91
S2 DIP Switch Settings
93
Table 14 - S2 DIP Switch Settings
93
Figure 70 - Location of S2 DIP Switches
94
Important - Circuit Board Function Revisions
95
S1 - System Reset / S3 - Restore Factory Defaults
96
S1 - System Reset
96
S3 - Restore Factory Defaults (Clear Memory)
96
Figure 71 - S3 Restore Default Settings (Clear Memory) & S1 System Reset Locations
97
Single ACU Communication
98
Multiple Building Communication on a WAN
98
Keyscan RS-232 Data Cable
98
Figure 72 - RS-232 Data Cable Connections
99
Figure 73 - Communication - Direct Serial
100
Figure 74 - Single ACU Communication - USB Adaptor
101
Figure 75 - Communication - NETCOM2P or NETCOM6P/ACU
102
Figure 76 - Communication - NETCOM2 Rev.b/Acu
103
CIM Communication
104
Figure 77 - CIM Overview
104
CIM Conventions
105
CIM Module Requirements
105
CIM Specifications
105
BPS/CAN Bus Distance Chart
106
Table 15 - CIM Specifications
106
Table 16 - BPS/CANBUS Distance Chart
106
CIM Jumper Settings
107
Figure 78 - CIM Jumper Locations
107
Table 17 - CIM Global Master Jumper J3
107
Table 18 - CIM 0 - Jumper J4
108
Table 19 - CIM CAN Bus Termination Jumpers J5 - J8
108
CIM Installation Guidelines
109
Table 20 - CIM Serial Bit Rate Jumpers J9 - J11
109
CIM Connection Diagrams
110
Figure 79 - CIM to ACU Connections
111
Figure 80 - CIM to CIM CANBUS Connections
112
Serial Communication
113
Figure 81 - PC Serial Connection - Cims/Acus
113
Network Communication Via Optional NETCOM2P or NETCOM6P (Encrypted)
114
Figure 82 - Network Connection with NETCOM2P or 6P - Cims/Acus
115
Network Communication Via Optional NETCOM2 Rev. B
116
Figure 83 - Network Connection with NETCOM2 Rev. B - Cims/Acus
117
CIM Diagnostic Leds B3 - B0
118
Table 21 - CIM Diagnostic LED Codes
118
Figure 84 - CIM Diagnostic Leds - B3 - B0
119
DPS-15 Power Supply Connections
120
Power Supply Specifications
120
Keyscan Circuit Board Current Ratings
120
DPS-15 Dual Power Supply - Current Calculation
121
Table 22 - Keyscan Circuit Board Current Ratings
121
Table 23 - ACU Supply - Current Calculation Table
122
Table 24 - AUX RDR Supply - Current Calculation Table
122
System Power-Up
123
Figure 85 - DPS-15 Power Supply Connections
124
Test Voltages
125
Control Board Voltage Test Points
125
Table 25 - Control Board Test Points - Voltages
125
Figure 86 - Control Board Test Points - Voltages
126
Test Points - Communication Terminals
127
Figure 87 - Control Board Communication Test Points
127
Table 26 - Communication Voltage Test Points
127
Communication Diagnostics
128
Communication Status Leds
128
Table 27 - Communication Status Leds
128
System Status LED
130
Figure 88 - Communication Leds - CA & EC Control Boards
130
Table 28 - System Status LED
130
Card Diagnostics - LED Wiegand Bit Counters
131
Figure 89 - Location of System Status LED
131
Figure 90 - Location of Wiegand Bit Counter Leds
131
Appendix A - WSSKP-1 Keypad
132
Table 29 - Keypad Power Specifications
132
Figure 91 - WSSKP-1 Keypad Connection
133
Figure 92 - WSSKP-1 Keypad/Reader Combination Connections
134
Appendix B - WIEEX2
135
Table 30 - WIEEX2
135
Table 31 - WIEEX2 Power Requirements
135
Table 32 - WIEEX2 Cables and Distances
135
Figure 93 - Wiegand Extender Overview
137
Figure 94 - WIEEX2 RS485 Connections - (Firmware 6.00 or Higher)
138
Figure 95 - WIEEX2 to OCB-8 Cable Connection
139
Warranty
140
Index
141
