Keyscan Inc.
–
Technica
l Guide (PC109x - 07.15
)
138

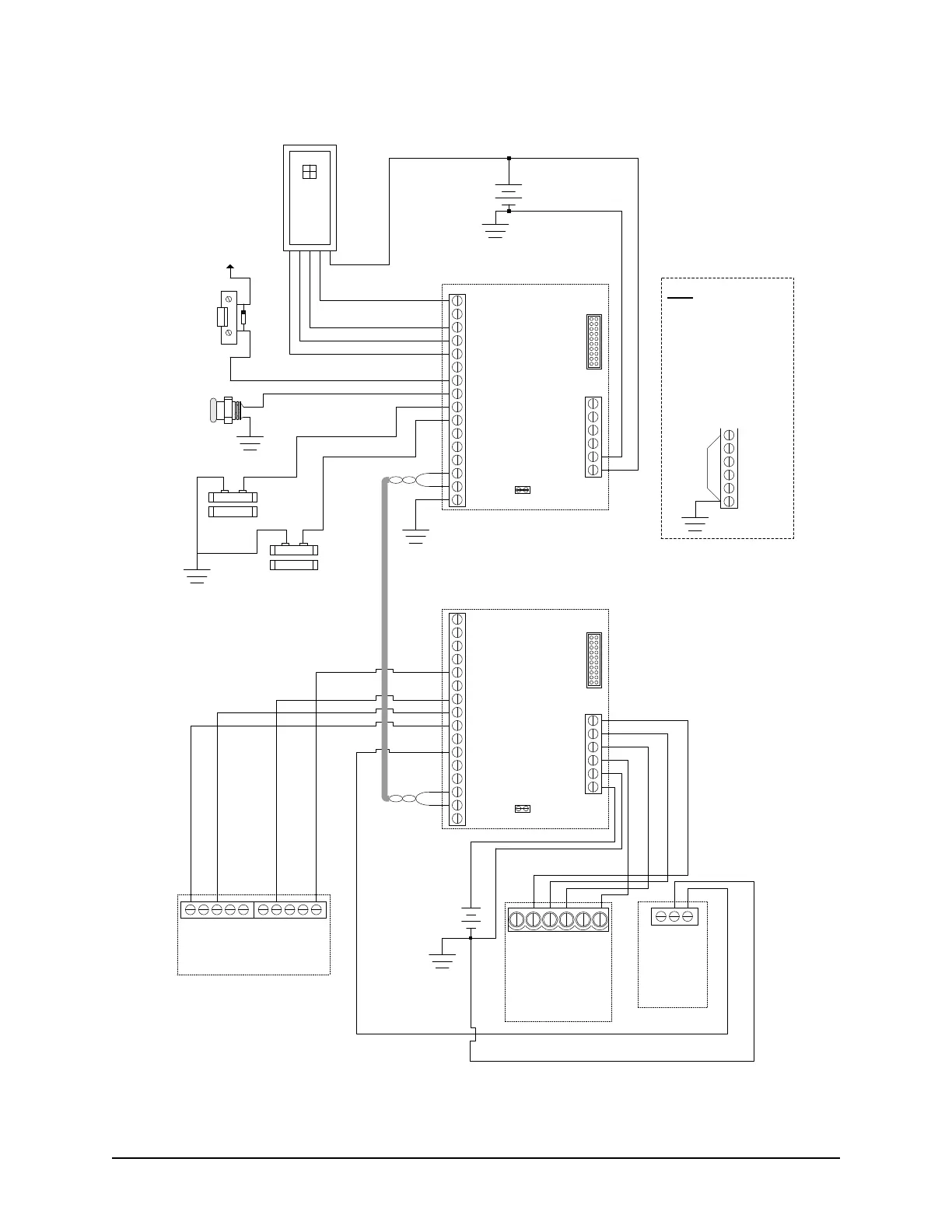

Figure
94
–
WIEEX2 RS485 Conn
ections
–
(Firmware 6.00 or
Higher)
GND
LED +
LED -
RB7 D1
RB6 D0
+5V
RA2 OC
RA1 D1
RA0 D0
RB5
RB4
DCD
DTR
RX
TX
GND
LED BRN
D1 WHT
D0 GRN
Data GND
-
12VDC
+
H1
reader
+12 VDC
COM
Data GND
White Data 1
Green Data 0
LED
Red +12VDC
WIEEX-Tx
Transmitter
Request to Exit Input N.O.
Door Contact Input N.C.
Auxiliary Input N.C.
Door Unlock Output
GND
LED +
LED -
RB7 D1
RB6 D0
+5V
RA2 OC
RA1 D1
RA0 D0
RB5
RB4
DCD
DTR
RX
TX
GND
LED BRN
D1 WHT
D0 GRN
Data GND
-
12VDC
+
H1
WIEEX-Rx
Receiver
+
DC Supply (local)
-
+ 12 VDC
Control Board
Reader
Terminal
J1
(shorted)
J1
(shorted)
Trigger for Transmitter RA2 OC
D1 White
D0 Green
GND Black
+
DC Supply
-
+ 12 VDC
COM
Maximum 4000'
Connect H1 to
OCB-8
Door
1
2
1
2
1
2
3
4
Control Board Inputs
Exit
Auxiliary
Request to Exit
Door Contact
Auxiliary Input
for Communications Failure Output
connect to open Auxiliary Input
Failed
Secure
Lock
N.O.
Com
N.C.
ACU
Lock Relay
RB4
DCD
DTR
RX
TX
GND
Baud
19,200
Note
If experiencing
communication
difficulties over longer
cable distances, set
the baud to 9600 by
shorting RB4 to GND
on the WIEEX
transmitter.
Diagram
shows lock
relay in ‘fail
safe’
.
For ‘fail
secure’
connect RB4
on receiver to
N.C. on lock
relay.
LED Brn
D1 Wht
D0 Grn
PWR Red
GND Black
C1 (Beep)
