Technica
l Guide (PC109x - 07.15
)
17

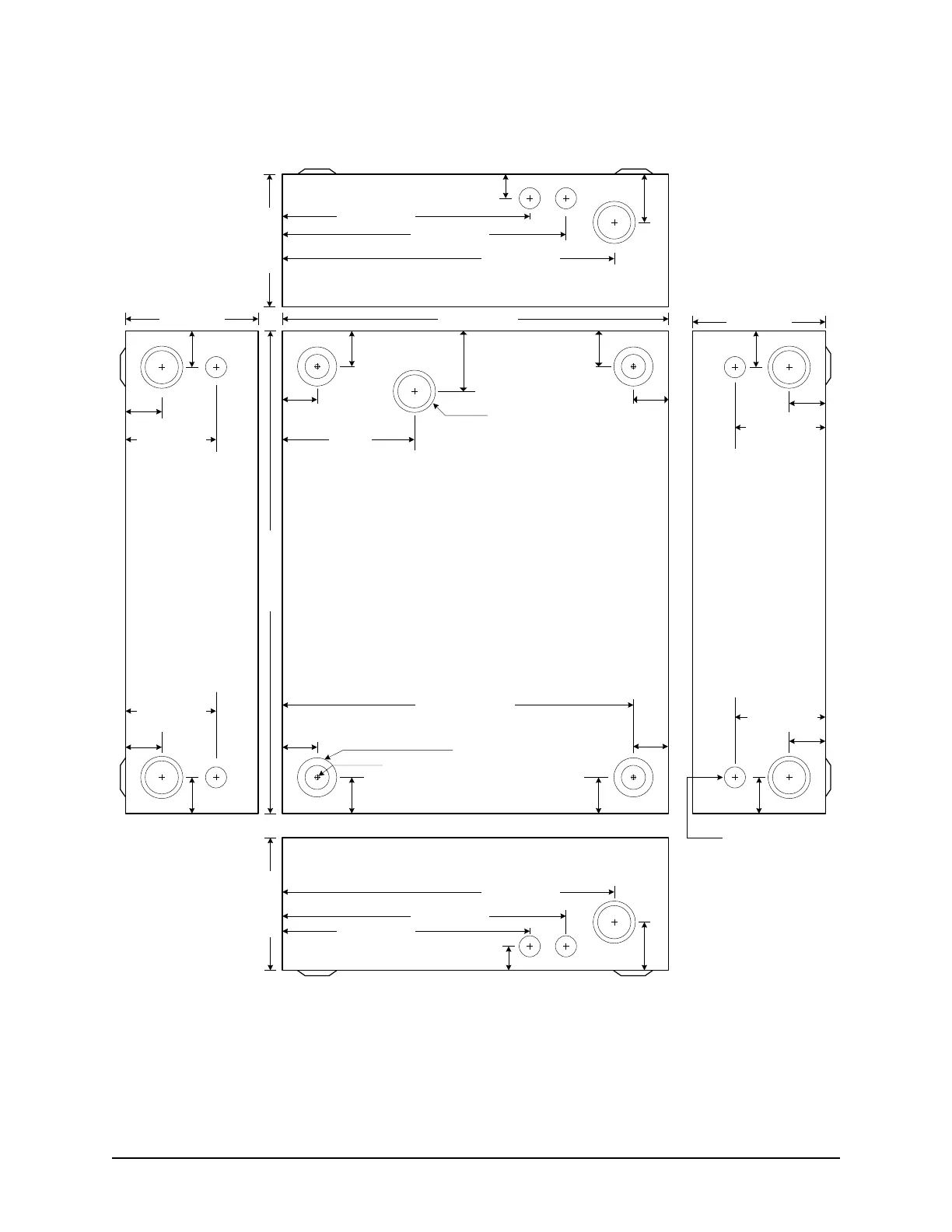

Figure 3
–
Enclosure Knoc
kout & Mounting Hole Locations/Dim
ensions
1.45"
(3.683 cm)
1.45" (3.683 cm)
1.50"
(3.81 cm)
5.475"
(13.91cm)
2.50"
(6.35 cm)
1.50" (3.81 cm)
16.00" (40.64 cm)
1.45"
(3.683 cm)
1.50"
(3.81 cm)
14.55" (36.957 cm)
1.45"
(3.683 cm)
1.50"
(3.81 cm)
20.00" (50.80 cm)
0.188 " Dia.
0.750" Dia. Extrusion
0.218" Depth
4 Places
1.375"/1.750" Dia.
Knockout
7 Places
5.50" (13.97 cm)
1.50"
(3.81 cm)
3.75" (9.525 cm)
Front
1.50" (3.81 cm)
1.50"
(3.81 cm)
3.75" (9.525 cm)
1.50" (3.81 cm)
5.50" (13.97 cm)
1.50" (3.81 cm)
1.50"
(3.81 cm)
3.75" (9.525 cm)
Front
1.50"
(3.81 cm)
3.75" (9.525 cm)
1.50" (3.81 cm)
Front
Front
10.25" (26.035 cm)
11.75" (29.845 cm)
5.50" (13.97 cm)
13.75" (34.925 cm)
1.00" (2.54 cm)
1.50"
(3.81 cm)
10.25" (26.035 cm)
11.75" (29.845 cm)
13.75" (34.925 cm)
1.00" (2.54 cm)
5.50" (13.97 cm)
1.50"
(3.81 cm)
Front View
Right Side View
Left Side View
Top View
Bottom View
0.875" Dia.
Knockout
8 Places
KI-00462E-06-12
