Keyscan CA4500B User Manual

Keyscan Inc. – Technical Guide (PC109x - 07.15)
94
S2 Switch #
Setting
Function
Notes
The H2 header for CIM connections is an open header not regulated by S2.
S2.9 & S2.10
KHS - IP Address
n/a
Reserved for Keyscan Hosted Services
S2.11 & S2.12
Software Selection
1 1
Aurora
0 0
System VII
1 0
Vantage
0 1
Future use
0 = Off
1 = On
Notes on Communication Settings
The 9600 bit/s communication setting is recommended for the CPB-10-2 only. Aurora does not support
this communication setting.
The 19,200 bit/s communication setting is recommended only for CPB-10-2 connections, which do not
exceed 200 ft/61 m between units and overall distance.
Aurora and all current hardware products do not support modem communication.
Ensure you are running the most current software version with this control board. For the latest software
updates, visit www.keyscan.ca.

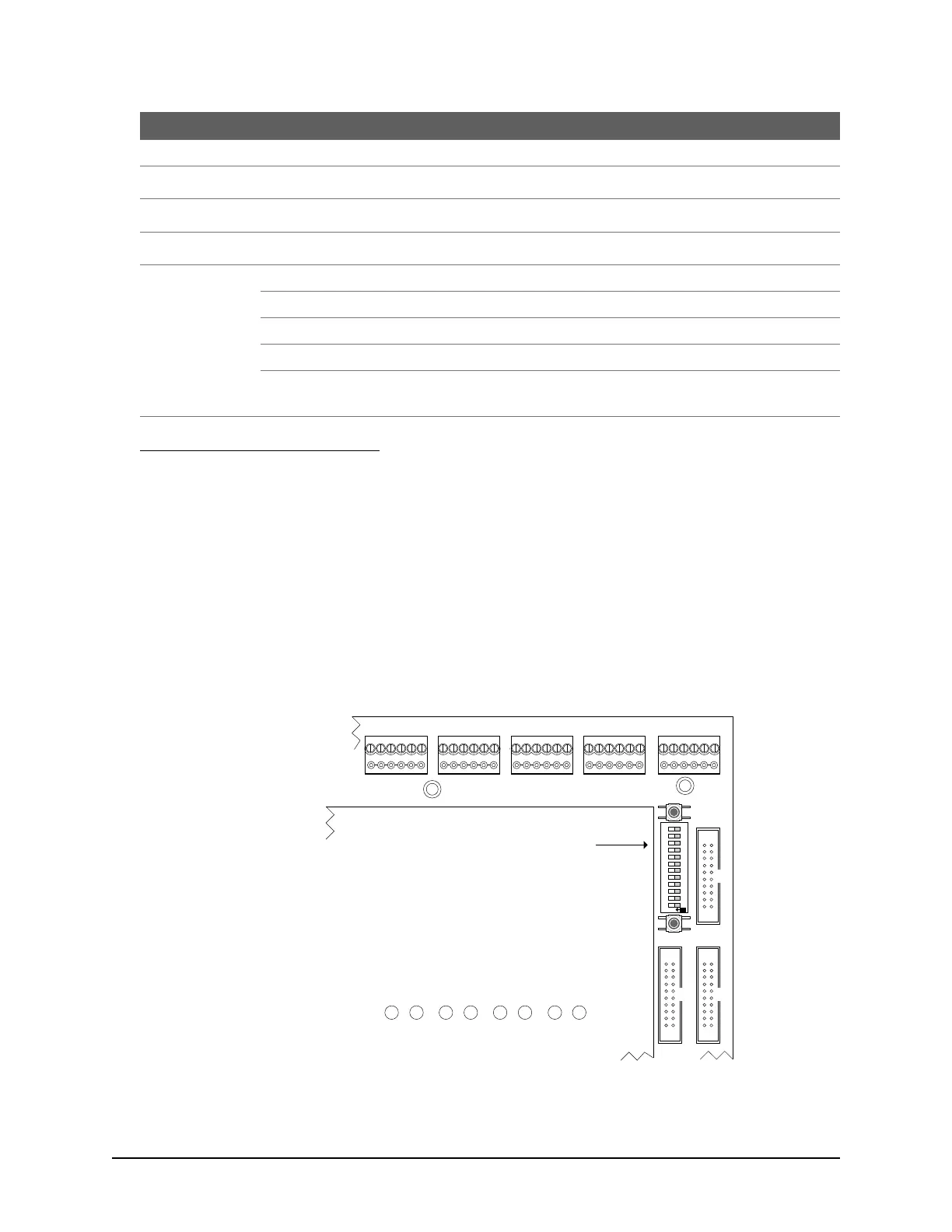

Figure 70 – Location of S2 DIP Switches
COMMUNICATION STATUS
TD1 RD1 TD2 RD2 TD3 RD3 TD4 RD4
READER 1READER 2READER 3READER 4READER 5
CONTROL 2 CONTROL 5
CONTROL 3
Protective ACU Cover
Cut View of CA8500B
Location of S2 is the
same on all CA & EC
control boards.
KI-00143E-04-13
S1
S2
S3
O
N
1 2 3 4 5 6 7 8 9 10 11 12
