Assembly Replacement
7. Refer to Figure 3-8. Using the T-20 driver, remove the six screws (1)
(0515-2044).

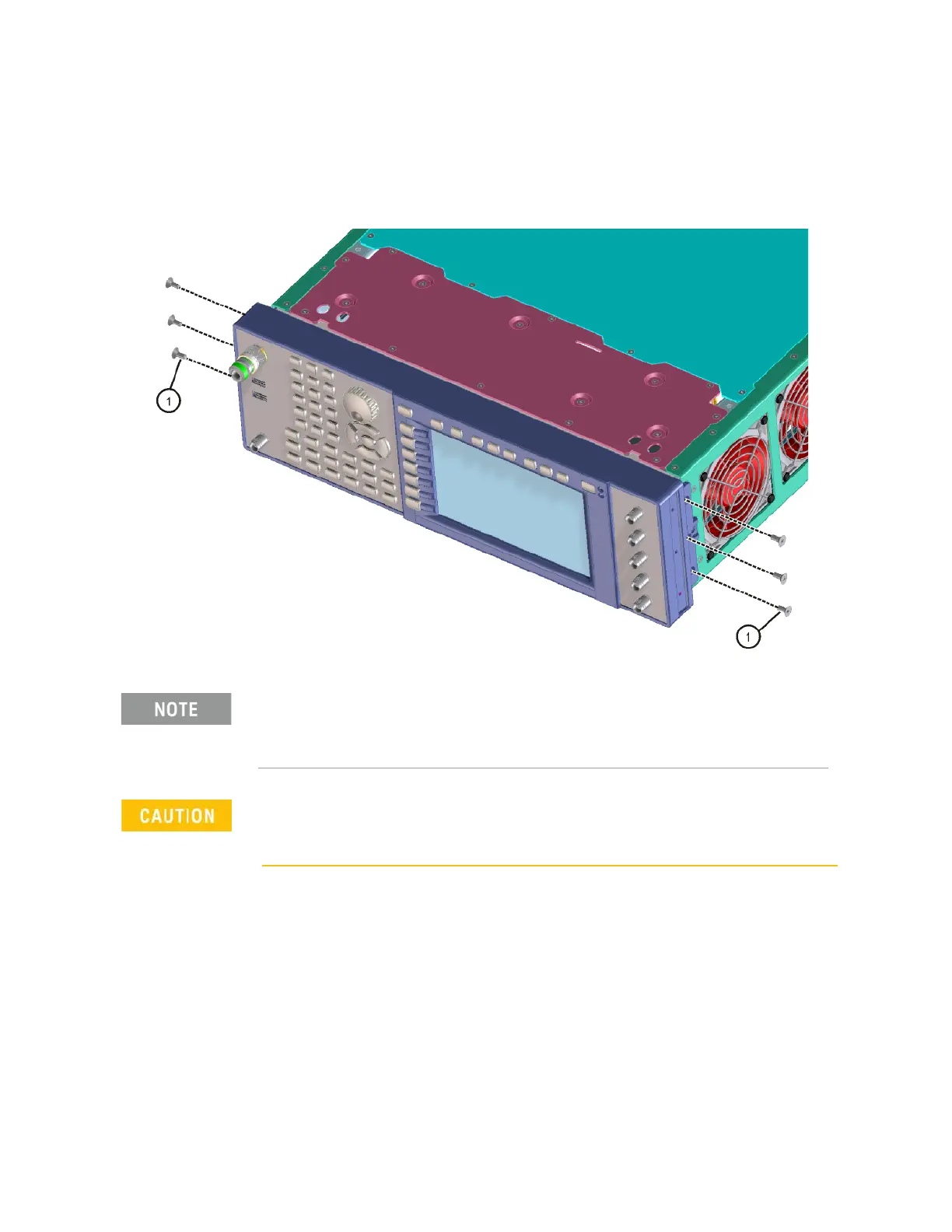

Figure 3-8 Front Frame Removal
The six screws that attach the front frame to the chassis are recommended to be one-time use
only hardware. These should be replaced with the new screws (0515-2044) if available. These
screws are provided in the front panel replacement kit.
Before removing the front frame from the signal generator, lift and support the front of the signal
generator chassis.
