Keysight Technologies N5193A - Page 165

Keysight Agile Signal Generator Service Guide 155
Assembly Replacement
5. Refer to Figure 3-50. Using the open-end torque wrench, loosen and
remove the RF connector from the bracket.

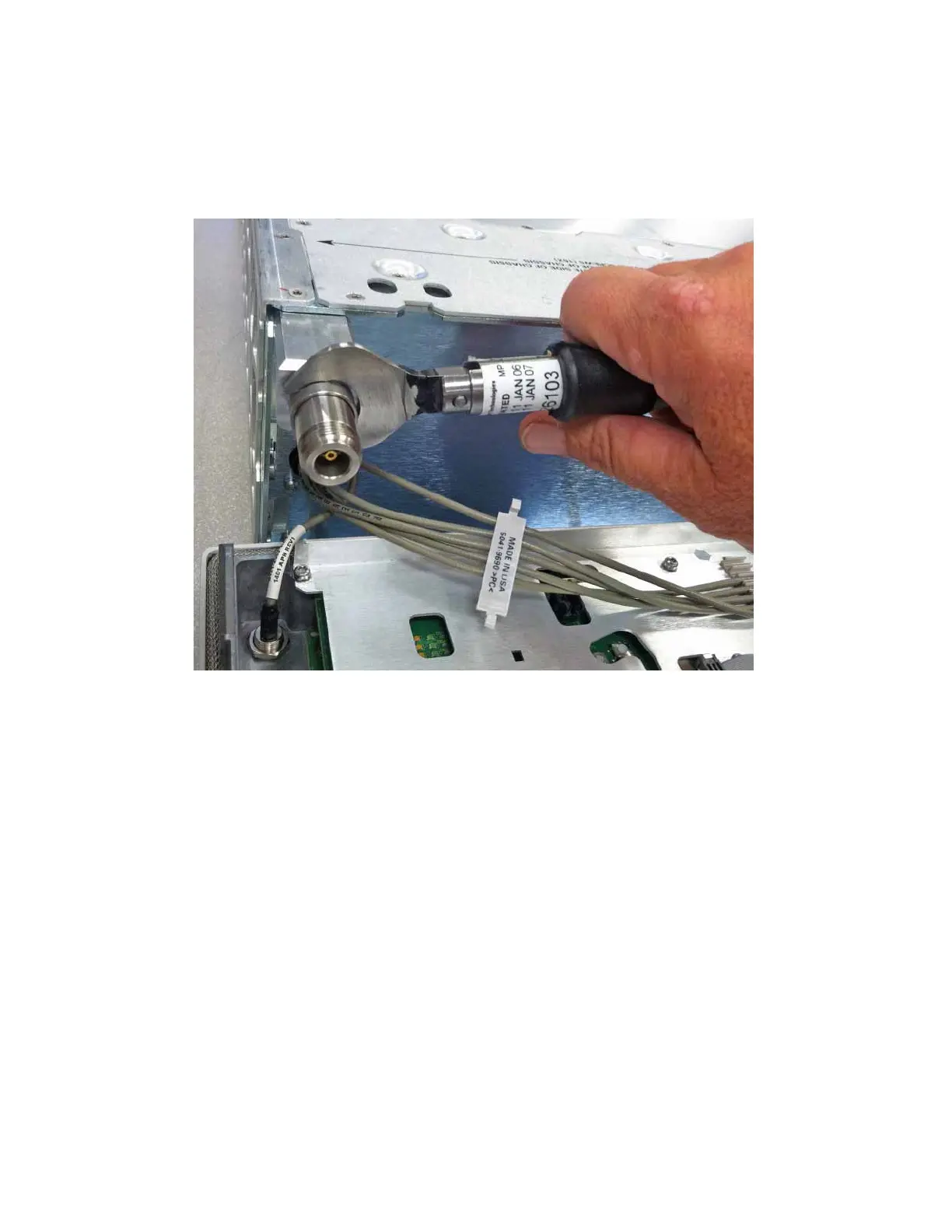

Figure 3-50 Remove RF Connector
