Kguard BR401 - Rear Panel; 4-Channel DVR

ENGLISH
Chapter 1: Product Overview
DVR User’s Manual
13

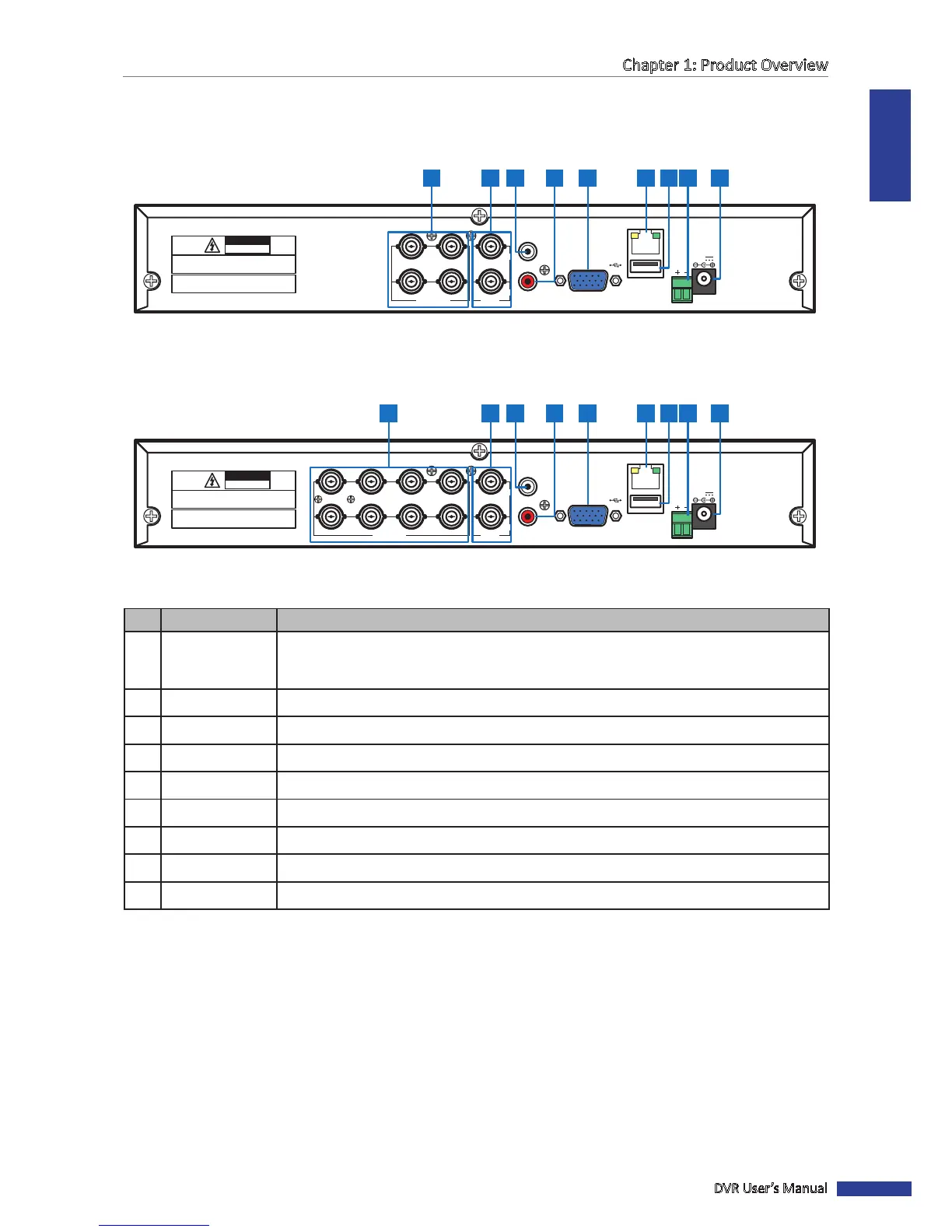

1.3.2 Rear Panel
4-Channel DVR
1
2
VIDEO
OUTPUT
3
4
1
2
VIDEO INPUT AUDIO
OUTPUT
AUDIO
INPUT
RS-485
VGA
12V
LAN
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK.
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLY DESIGNED FOR
OUTDOOR USE TO RAIN OR MOISTURE.
5 6 8 971 2 3 4
8-Channel DVR
RS-485
3
4
1
2
1
2
VIDEO
OUTPUT
7
8
5
6
VIDEO INPUT AUDIO
OUTPUT
AUDIO
INPUT
VGA
12V
LAN
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK.
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLY DESIGNED FOR
OUTDOOR USE TO RAIN OR MOISTURE.
1 2 5 6 8 973 4
No. Connector Descripon
1 Video input
8-Channel DVR: Connects to a maximum of 8 video input devices (BNC).
4-Channel DVR: Connects to a maximum of 4 video input devices (BNC).
2 Video output Connects to a maximum of 2 video output devices via BNC.
3 Audio input Connects to an audio input device via RCA.
4 Audio output Connects to an audio output device via RCA.
5 VGA output Connects to a VGA monitor.
6 LAN Connects to LAN via RJ-45.
7 USB port Connects to a USB mouse, ash disk, and other external storage drive.
8 RS-485 Connects to a Speed dome camera via RS-485.
9 Power Connects to the power adapter.
