Chapter 2: Installaon
26
DVR User’s Manual

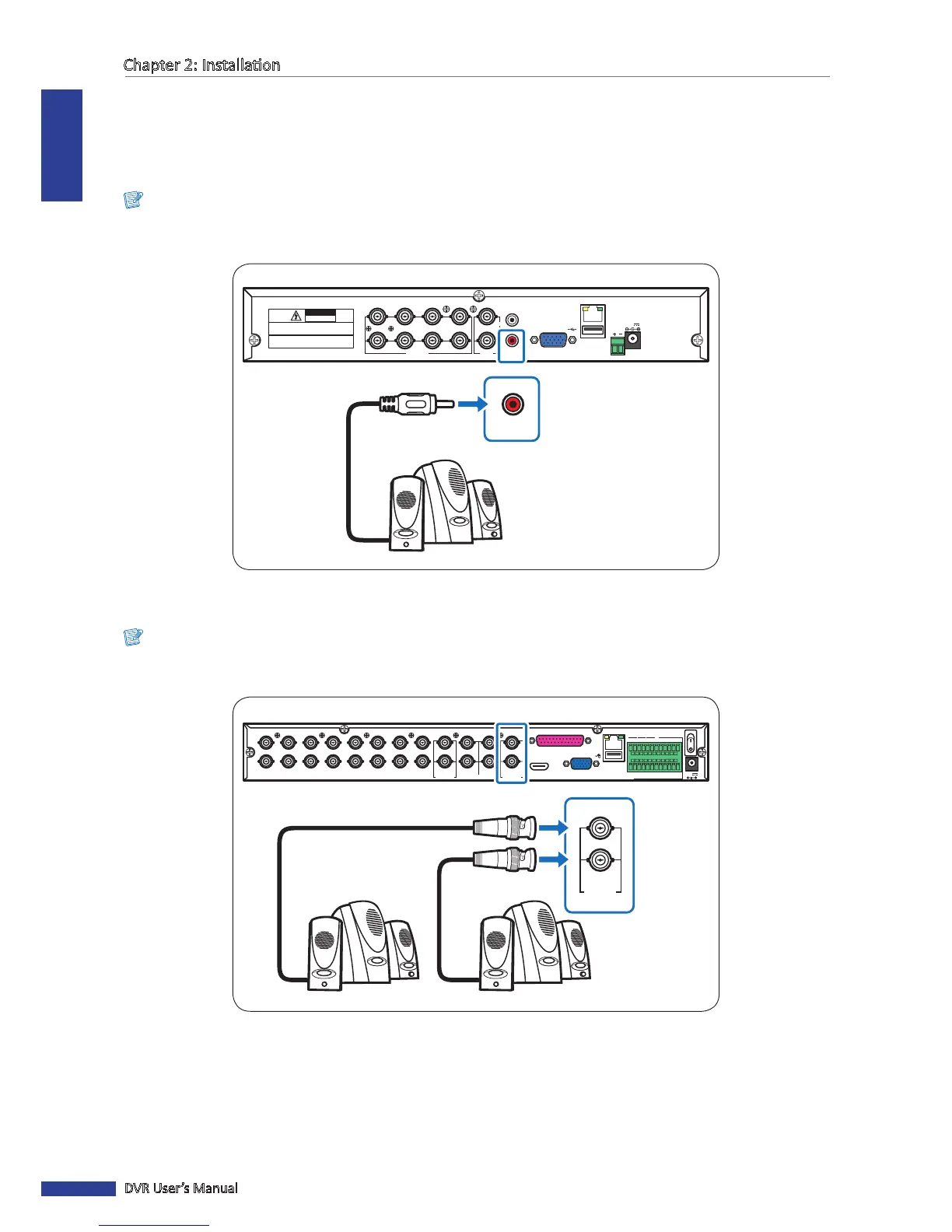

2.10 Connecng to Speakers
You can connect speakers to the DVR via BNC or RCA connecon. Available connecons vary depending on model.
2.10.1 RCA Connecon
Note:
Available in 8-channel and 4-channel DVRs only.
Connect the speaker using RCA cable connecon as shown.
RS-485
3
4
1
2
1
2
VIDEO
OUTPUT
7
8
5
6
VIDEO INPUT AUDIO
OUTPUT
AUDIO
INPUT
VGA
12V
LAN
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK.
DO NOT OPEN COVERS. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD. DO NOT
EXPOSE UNITS NOT SPECIFICALLY DESIGNED FOR
OUTDOOR USE TO RAIN OR MOISTURE.
AUDIO
OUTPUT
4-Channel / 8-Channel DVR
2.10.2 BNC Connecon
Note:
Available in 16-channel DVRs only.
Connect the speaker using BNC cable connecon as shown.
VGA
AUDIO IN (CH5-CH16)
HDMI
LAN
1
2
AUDIO OUTVIDEO OUT AUDIO IN
2
4
1
3
MAIN
SPOT
CH8
CH16
CH7
CH15
CH6
CH14
CH5
CH13
CH4
CH12
CH3
CH11
CH2
CH10
CH1
CH9
G12345678910 11
+
- NO COM G1615141312
RS-485
D+ D -
KB OUT IN
ALARM
12V
1
2
AUDIO OUT
16-Channel DVR
