Maintenance Fuses

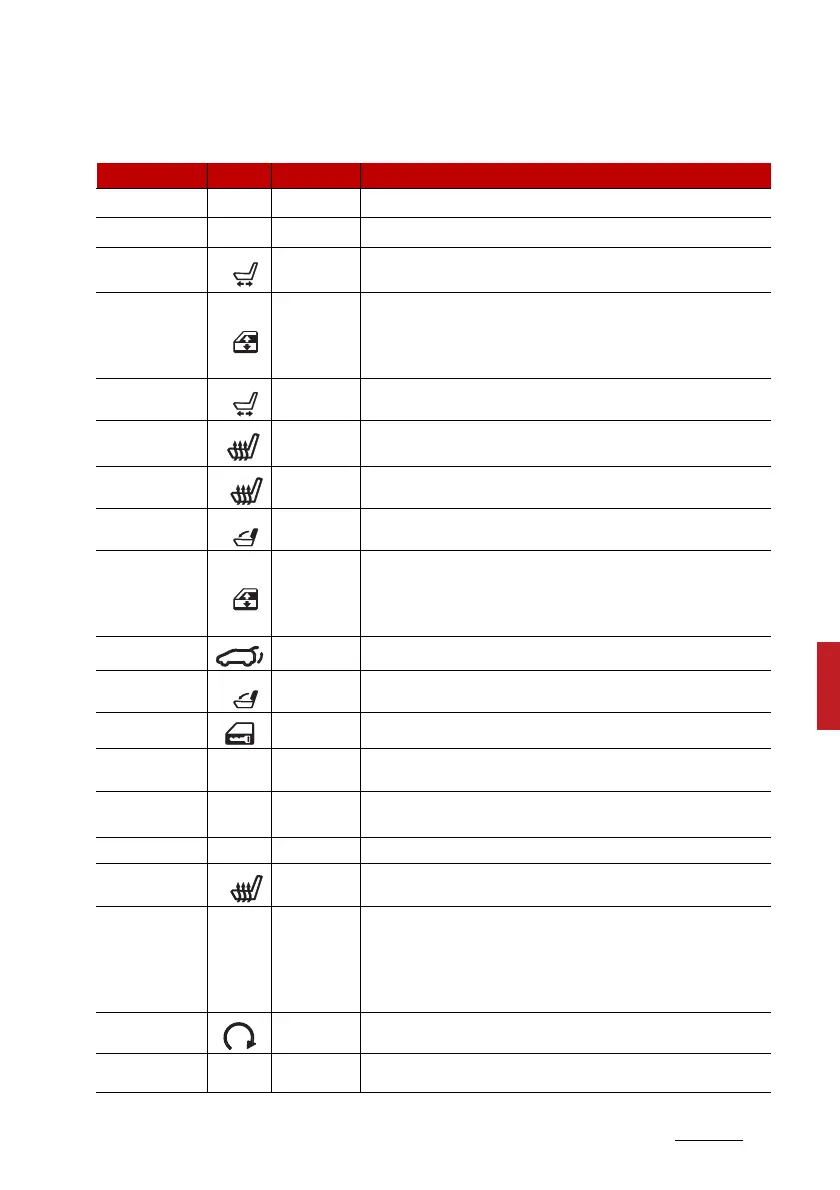

ICU Junction Block
Fuse Name Symbol Fuse rating Circuit Protected
AMP 25A AMP (Amplifier)
LDC 30A Low DC-DC Converter
P/SEAT DRV 30A
Driver Lumbar Support Switch, Driver Power Seat Switch, IMS
(Integrated memory system) Control Module
P/WINDOW LH 25A
Rear Power Window Switch Left Handle side, Rear Safety
Power Window Module Left Handle side, Driver Safety Power
Window Module (LHD), Passenger Power Window Switch
(RHD), Passenger Safety Power Window Module (RHD)
P/SEAT PASS 30A Passenger Power Seat Switch, Passenger Relay Unit
S/HEATER FRT 20A
1st Air Ventilation Seat Control Module, 1st Seat Warmer
Control Module
S/HEATER RL 15A 2nd Seat Warmer Left Handle side Control Module
S/FOLD RR 20A 2nd Seat Right Handle side Folding Actuator
P/WINDOW RH 25A
Rear Power Window Switch Right Handle side, Rear Safety
Power Window Module Right Handle side, Passenger Power
Window Switch (LHD), Passenger Safety Power Window
Module (LHD), Driver Safety Power Window Module (RHD)
T/GATE 15A Tail Gate Relay
S/FOLD RL 20A 2nd Seat Left Handle side Folding Actuator
DR LOCK 20A Door Lock/Unlock Relay, Dead Lock Relay
RR A/CON2 10A Rear Air Conditioner Control Module
MULTI MEDIA1 25A
Low DC-DC Converter, Audio, Audio/Video & Navigation Head
Unit, ICU Junction Block (Fuse - MULTI MEDAI2)
E-CALL 10A E-Call Unit
S/HEATER RR 15A 2nd Seat Warmer Right Handle side Control Module
MEMORY 10A
Power Tail Gate Unit, IMS (Integrated memory system) Con -
trol Module, Rear Air Conditioner Control Module, Driver/Pas -
senger Power Outside Mirror, ROA, Instrument Cluster, Low
DC-DC Converter, Rain Sensor, Front Air Conditioner Control
Panel, Head-Up Display, Front Air Conditioner Control Module
START 10A Ignition Switch
E-SHIFTER 7.5A Electronic Shift Dial
AMP
LDC
DRV
LH
PASS
FRT
REAR LH
2nd RH
RH
2nd LH
REAR
A/C
2
MULTI
MEDIA
1
E-CALL
REAR RH
MEMORY
E-
SHIFTER
