Maintenance Fuses

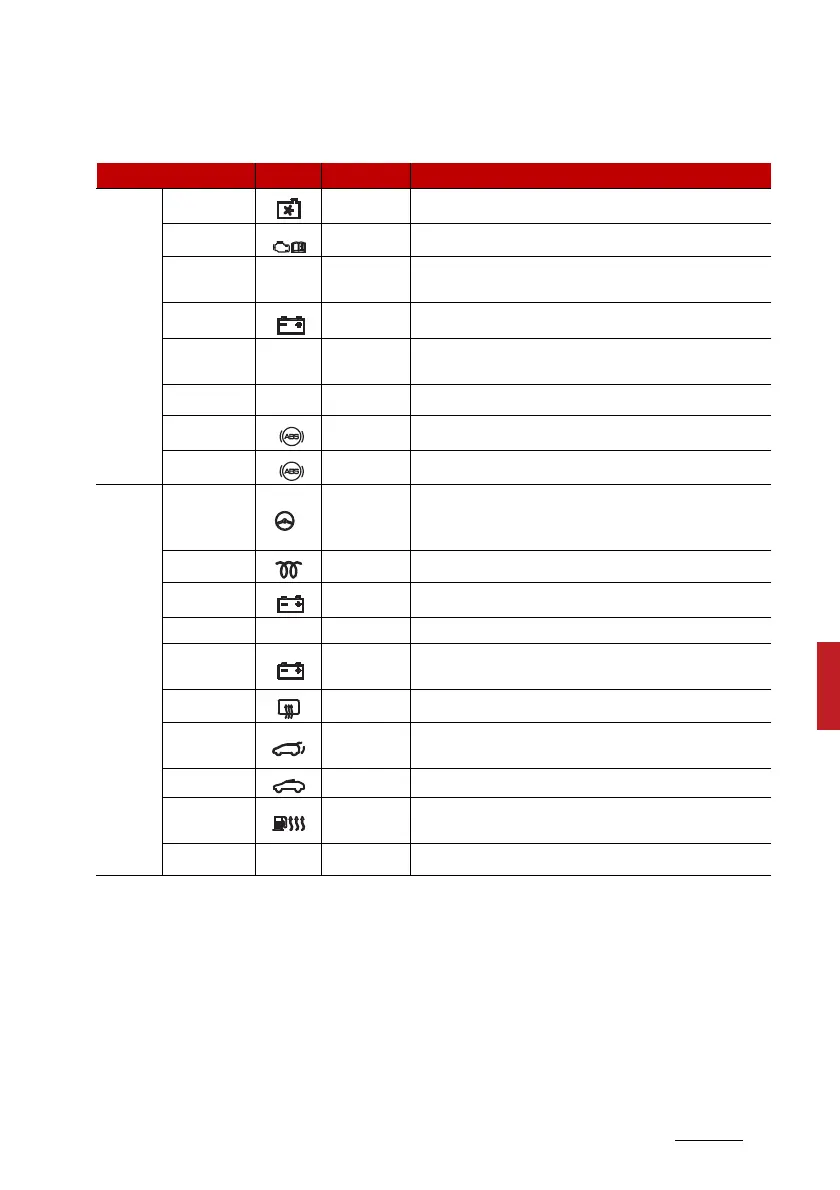

Engine Room Junction Block
Fuse Name Symbol Fuse r Ating Circuit Protected
MULTI
FUSE-1
C/FAN 80 A Cooling Fan Motor
TCU3 60 A TCM (Transmission Control Module)
PTC HEAT -
ER1
50 A Engine Room Junction Block (PTC Heater #1 Relay)
B+2 50 A ICU Junction Block (Instrument Panel Module)
PTC HEAT -
ER2
50 A Engine Room Junction Block (PTC Heater #2 Relay)
DCU1 50 A Engine Room Junction Block (DCU Relay)
ABS1 40 A ESP (Electronic Stability Program) Control Module
ABS2 30 A ESP (Electronic Stability Program) Control Module
MULTI
FUSE-2
MDPS 100 A
MDPS (Motor Driven Power Steering) Unit
* MDPS (Motor Driven Power Steering) is same as EPS
(Electric Power Steering).
GLOW 60 A GCU
B+6 60 A GCU
EOP 60 A Electronic Oil Pump
B+5 50 A
ICU Junction Block (Fuse - P/SEAT DRV, P/WINDOW LH,
P/SEAT PASS, S/HEATER RL, S/FOLD RR)
RR HEATED 40 A Engine Room Junction Block (Rear Heated Relay)
POWER TAIL -
GATE
40 A Power Tail Gate Unit
SUNROOF 40 A Sunroof Motor (Glass)
FUEL
HEATER
40 A Engine Room Junction Block (Fuel Filter Heating Relay)
E-SHIFTER1 30 A SCU
