Kikusui PCR 2000M - Setting the Voltage

38 PCR-M
Chapter 3 Operation
3.3 Setting the Voltage
You can set the voltage regardless of whether the OUTPUT is on or off.
If the voltage range is set to AUTO, the range automatically switches to 135 V or
270 V range according to the specified voltage. When the voltage range switches,
the OUTPUT is turned off for approximately 0.5 seconds. After the voltage range
switches, the OUTPUT is turned on again.
page 44
The factory default voltage lower limit of DC mode is 0.0 V. You must change the
limit to set a negative electric potential.
In AC+DC mode, the voltage can be specified only when the AC and DC voltage
settings are within the voltage limit range and the peak value of the AC+DC
waveform is within the range of -388 V to 388 V.

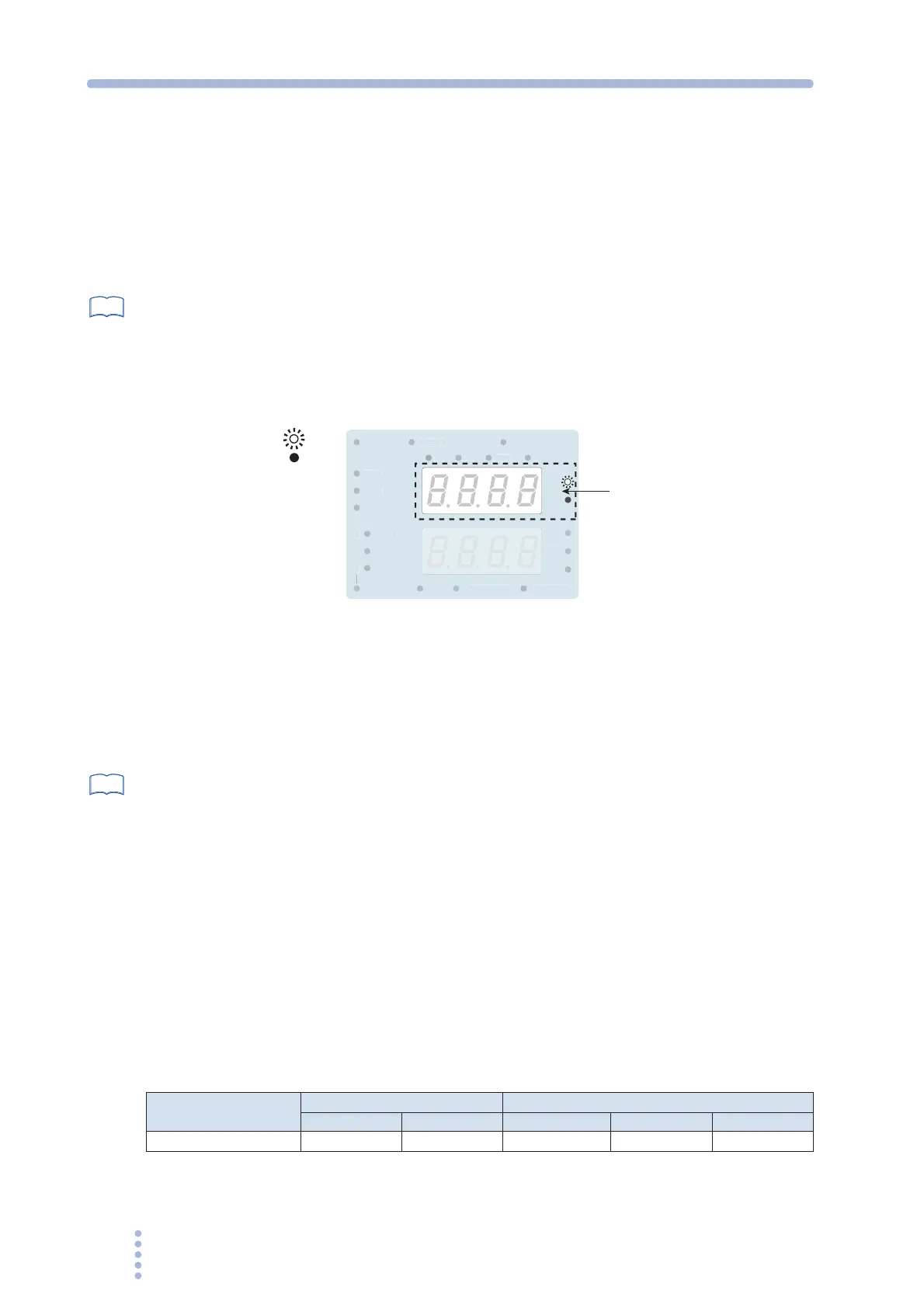

Fig.3-3 Preset voltage display (upper numeric display)
1. Press the V key.
The V key illuminates, and the voltage setting display appears.
2. Turn the rotary knob to set the voltage.
The specified voltage is shown on the upper numeric display of Fig.3-3.
page 37, 44
If the OUTPUT is on, you can change the set voltage (output voltage) by turning the
rotary knob.
If the OUTPUT is off, you can change the preset voltage by turning the rotary knob.
The specified voltage is delivered when the OUTPUT is turned on.
To display the measured value, press the V key again. The V key turns off and
measured value display appears.
You can also change the output voltage by turning the rotary knob on the measured
value display immediately after changing from the voltage setting display if the
OUTPUT is on.
If you show the measured value display after displaying another setting display, you
cannot change the output voltage. In this case, press the V key again.
Table 3-4 Switching of the range when the voltage range is set to
AUTO
See
On
Off
V
H
z
PEAK
Hz
1
35
V
27
0V
RAN
G
E
W
A
A
V
G
R
MS
A
UTO
MEM
O
RY
REM
O
TE
A
LAR
M
K
EY L
OC
K
A
B
C
O
VER L
O
AD
A
C
DC
EXT
Preset voltage display
See
Output Voltage Setting
AC mode DC mode
0 V to 135 V 135.1 V to 275 V -388 V to -190.1 V -190 V to 190 V 190.1 V to 388 V
Range 135 V 270 V 270 V 135 V 270 V
