3.4 Setting the Frequency
Frequency setting is a function for AC mode and AC+DC mode. You can set the
frequency regardless of whether the OUTPUT is on or off.
The F key is disabled in DC mode.

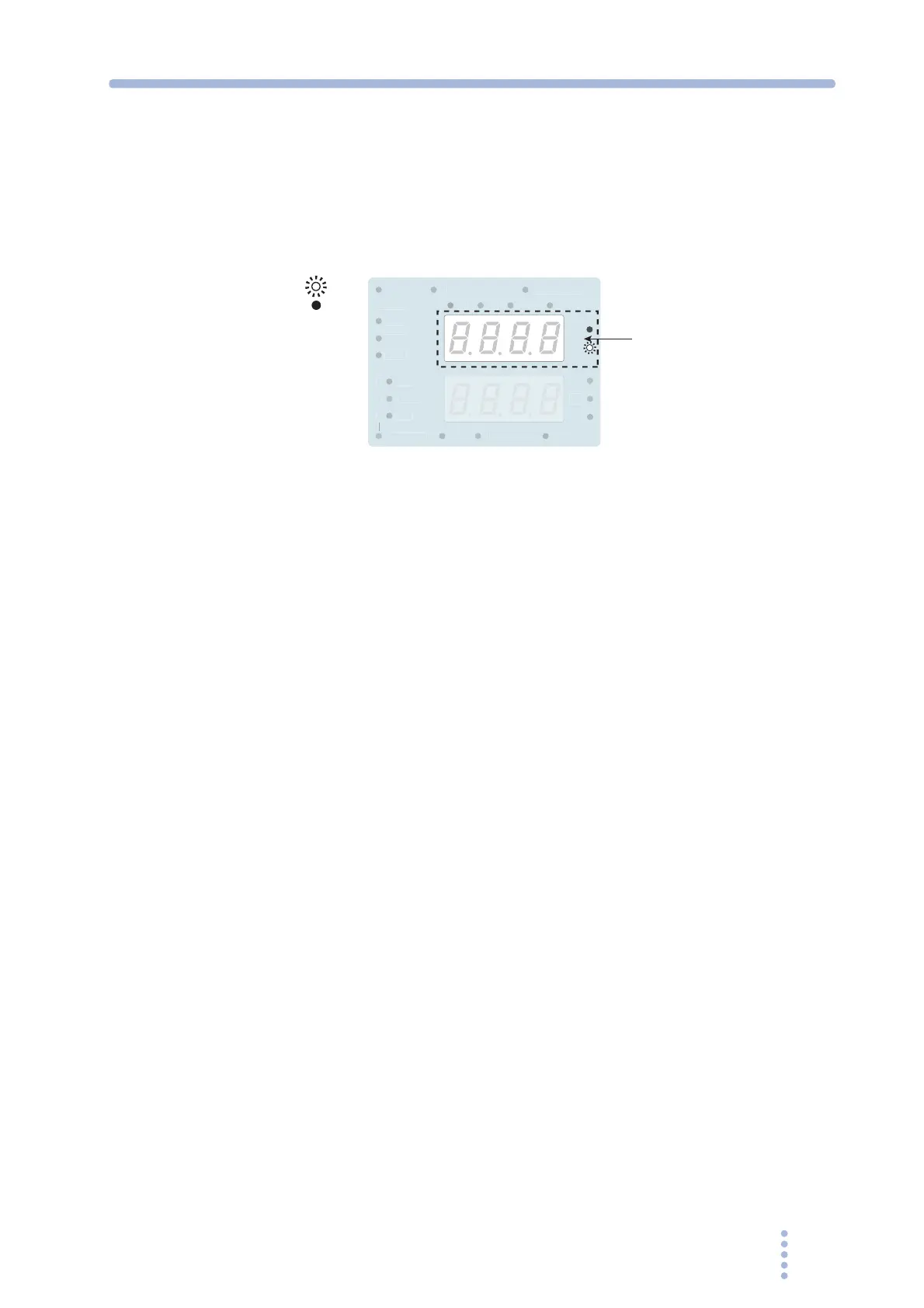

Fig.3-4 Preset frequency display (upper numeric display)
1. Press the F key.
The F key illuminates, and the frequency setting display appears.
2. Turn the rotary knob to set the frequency (40.0 Hz to 500.0 Hz).
The specified frequency is shown on the upper numeric display of Fig.3-4.
Press the F key again, then F key light off and the measured value display appears to
show the value of measured voltage in the upper numeric display.
