32 PCR-M
Chapter 2 Installation and Preparation
Connecting to the OUTPUT outlet
The PCR-M can output power from the OUTPUT terminal block on the rear panel
and the OUTPUT outlet on the front panel. Specifications are not defined for the
OUTPUT outlet. A portion of the performance may be degraded.
page 51
As for the PCR2000M, the output is shut down by the circuit breaker when it is over
current.
• The maximum rated voltage of the OUTPUT outlet is 125 Vac.
Maximum output voltage: 125 Vac
Maximum output current: PCR500M: 5 Aac
PCR1000M / PCR2000M: 10 Aac
Do not connect the load when the maximum rated voltage of the
OUTPUT outlet is exceeded or when in DC mode, as it can lead to
malfunction.
1.
Turn the POWER switch off.
2.
Connect the power cord of the load device to the OUTPUT outlet.

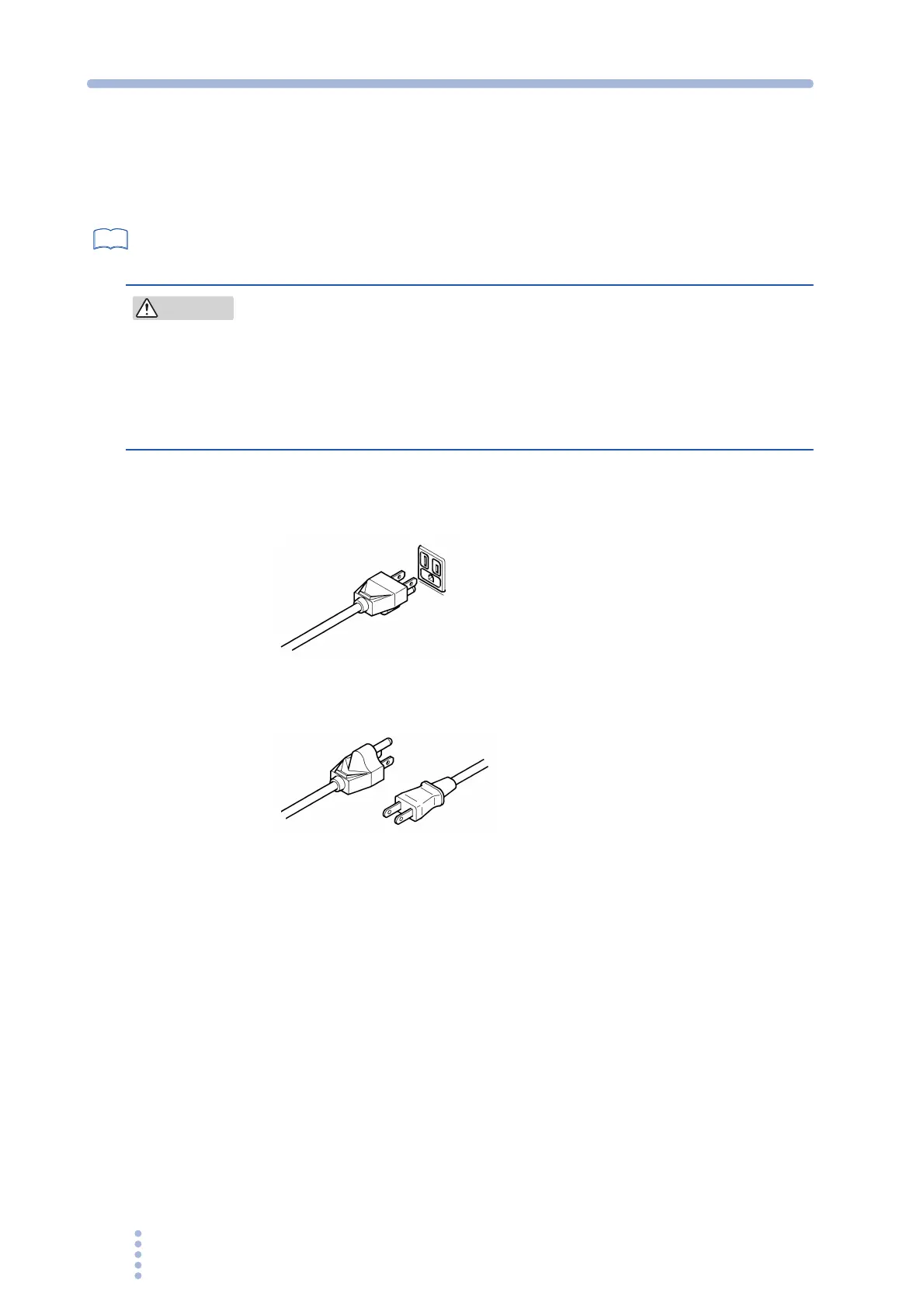

Fig.2-12 Connecting to the OUTPUT outlet
The OUTPUT outlet is dedicated to a type of power plug shown in the figure.
Fig.2-13 Power plug type
See
CAUTION
