■ OUTPUT on phase angle
The OUTPUT on phase can be set in AC mode.
page 52
The control of the OUTPUT on phase angle is specified in the configuration.
Because the output capacitor inside the PCR-M is discharged when there is no load,
OUTPUT turns off at the zero-crossing phase.

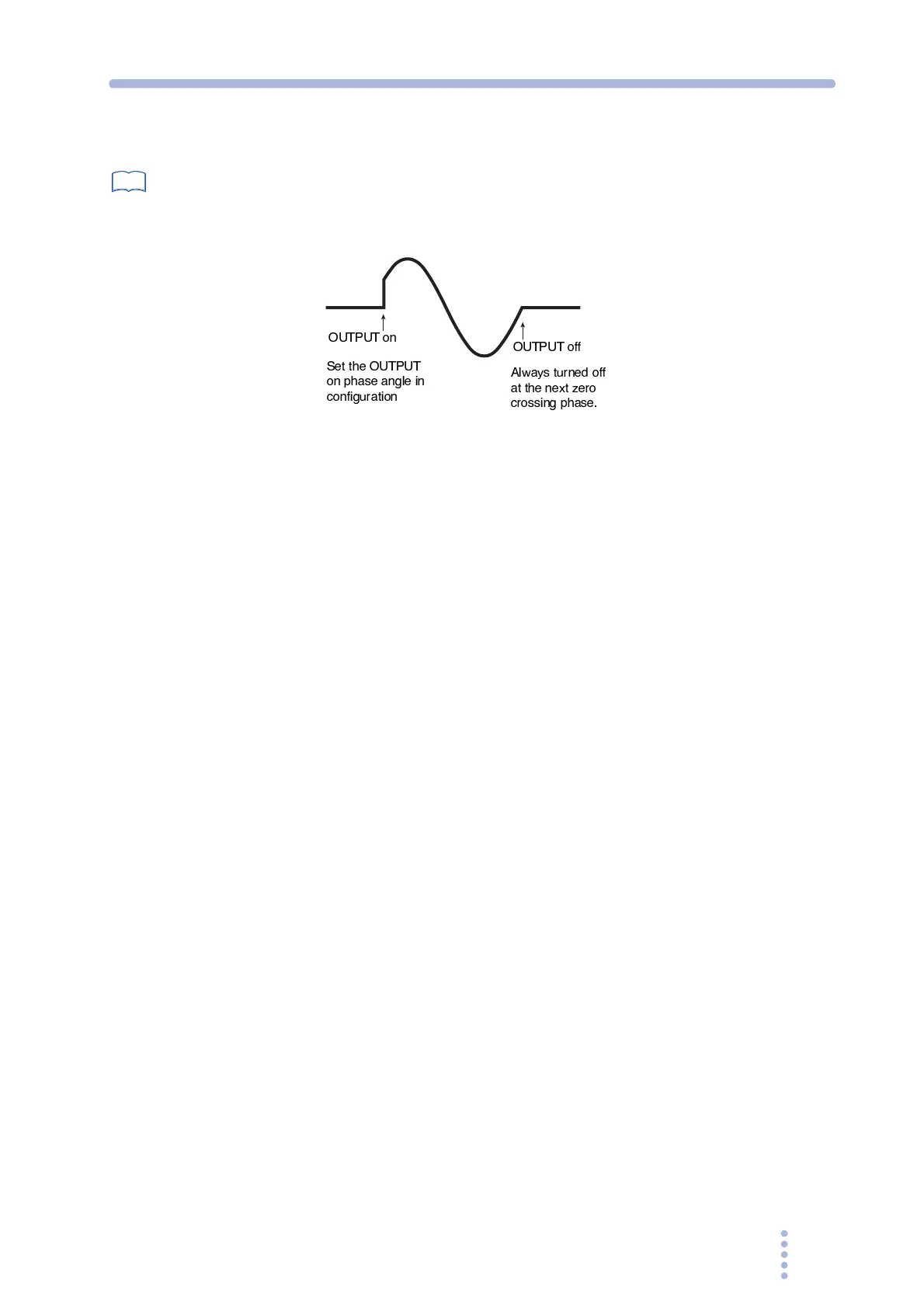

Fig.3-5 OUTPUT on/off phase angle
See
OUTPUT on
Set the OUTPUT
on phase angle in
configuration
OUTPUT off
Always turned off
at the next zero
crossing phase.
