78 PCR-M
Chapter 6 Specifications
PCR2000M

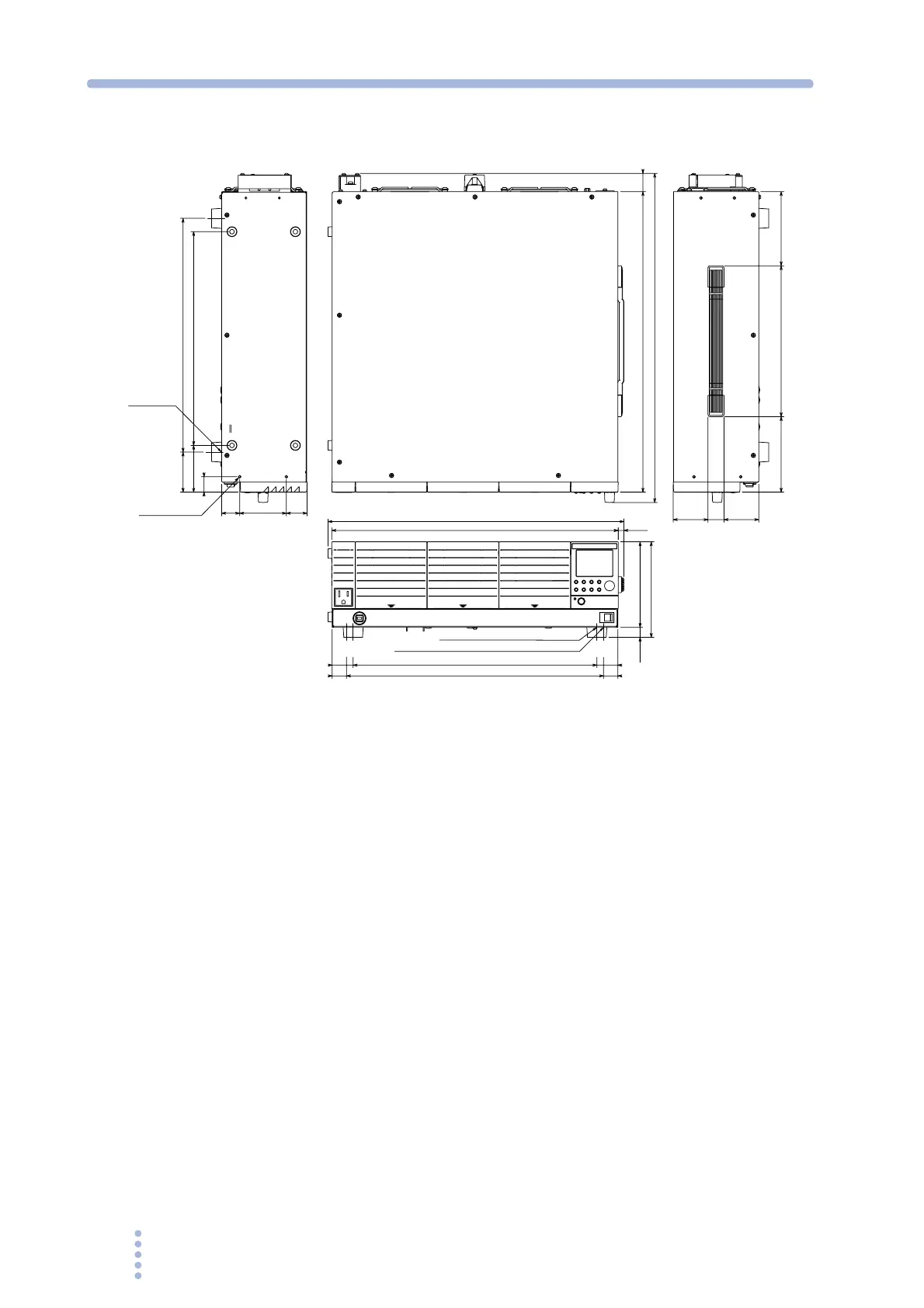

Fig.6-3 PCR2000M outline drawing
450(17.72)
MAX 30(1.18)
MAX500(19.69)
60(2.36) 350(13.78)
23
(0.91)
27
(1.06)
70
(2.76)
31
(1.22)
70(2.76)
320(12.60)
113(4.45) 226(8.90) 111(4.37)
24(0.94)
52(2.05) 52(2.05)
365(14.37)
32(1.26)
22(0.86)
32(1.26)
22(0.86)
385(15.16)
MAX450(17.72)
429(16.89) MAX15
(0.59)
128(5.03)
MAX150(5.91)
MAX20 (0.79)
4-ø5(0.20)(Mounting holes for feet)
4-M3 screw holes (Max. depth 6 mm(0.24 inch))
Feet, M4 screw
holes
4-M4 screw holes
(Max. depth 8 mm
(0.31 inch))
Unit: mm (inch)
